Overhead Control Panel Control Unit Connector End View (M596)

Connector Types:  A0395456728

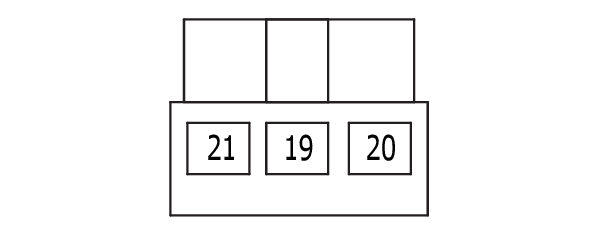

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

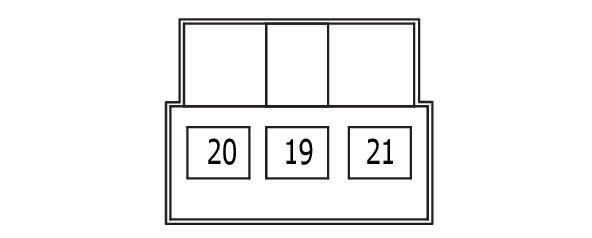

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
19	G	LIGHT & RAIN PWR
20	R	LIGHT & RAIN GND
21	O	LIN ROOF
