Overhead Control Panel Control Unit Connector End View (M598)

Connector Types:  A0265458426

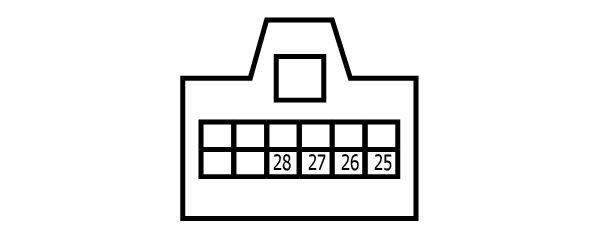

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

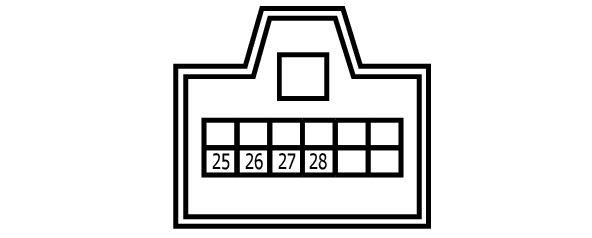

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
25	BR	VANITY MIRROR LAMP RH GND
26	O	VANITY MIRROR LAMP RH PWR
27	Y/G	VANITY MIRROR LAMP LH GND
28	B/GR	VANITY MIRROR LAMP LH PWR
