Battery Sensor

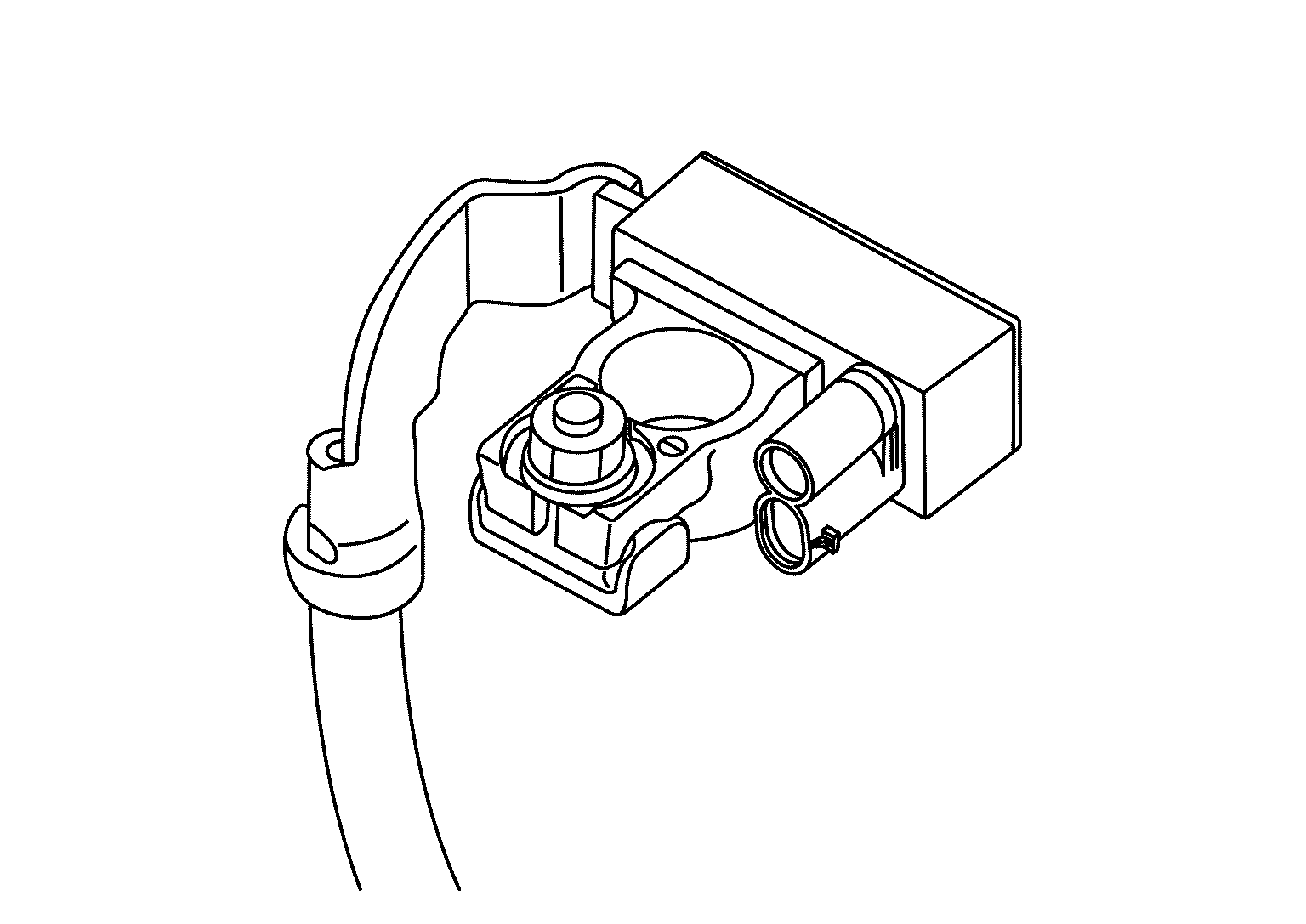

Battery sensor is installed to battery negative cable. Battery sensor measures the voltage, current and the temperature of battery.

GNSJMMIA2209Z-209Courtesy of NISSAN NORTH AMERICA, INC.
