Exploded View

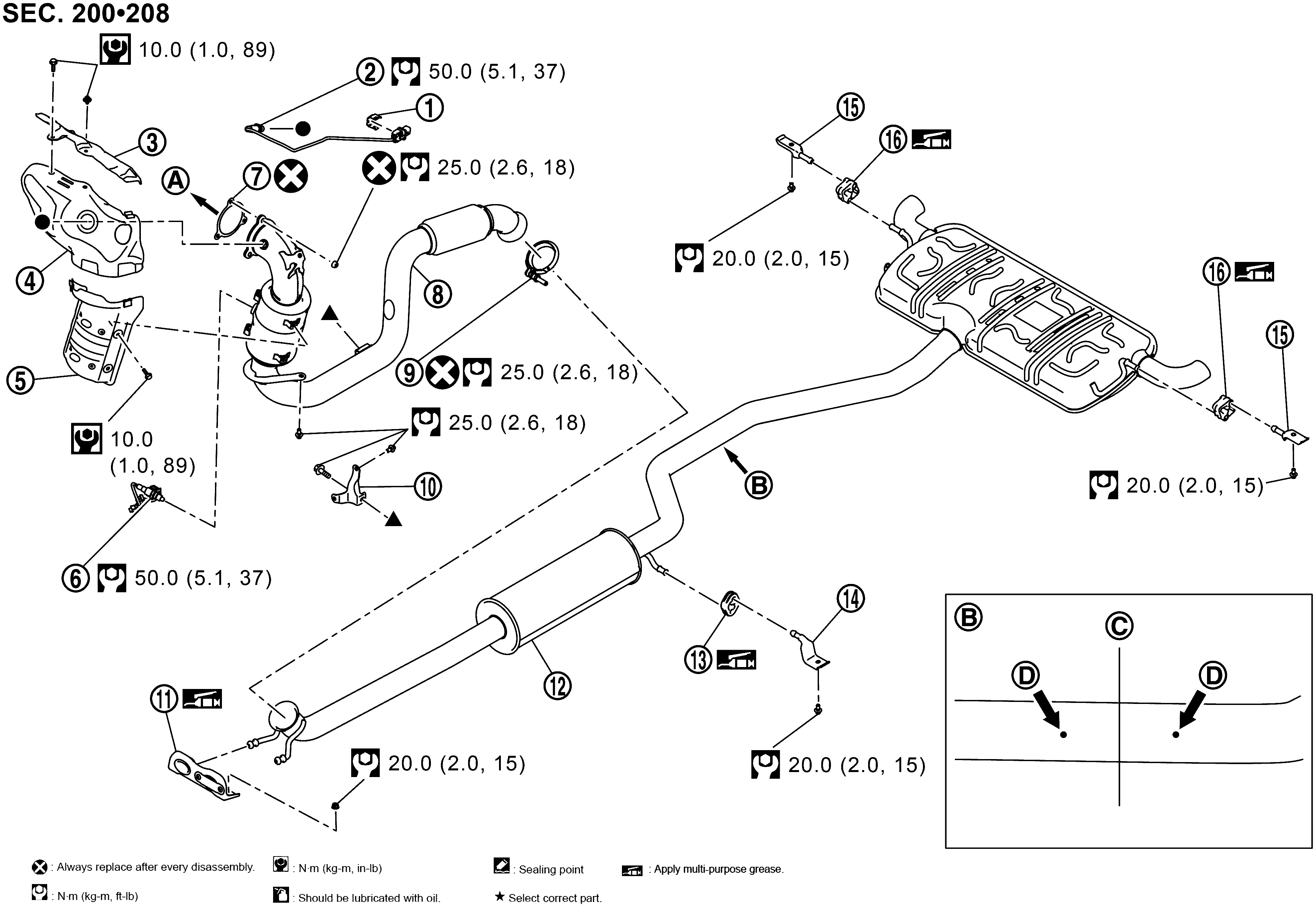

Fig 1: Exhaust System With Torque Specification (2WD Models)

GNSJSBIA7352GB-352

Courtesy of NISSAN NORTH AMERICA, INC.

	Clip		Air fuel ratio sensor		Heat insulator
	Heat insulator		Heat insulator		Heated oxygen sensor
	Gasket		Exhaust front tube		Tube clamp
	Bracket		Mounting bracket 1		Rear muffler assembly
	Mounting rubber		Mounting bracket 2		Mounting bracket 3
	Mounting rubber
	To exhaust manifold and turbocharger assembly		View B		Cutting point
	Rear clamp install point
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
	: Always replace after every disassembly.
	: Should be lubricated with antifriction paste.
, : Indicates that the part is connected at points with same symbol in actual vehicle.

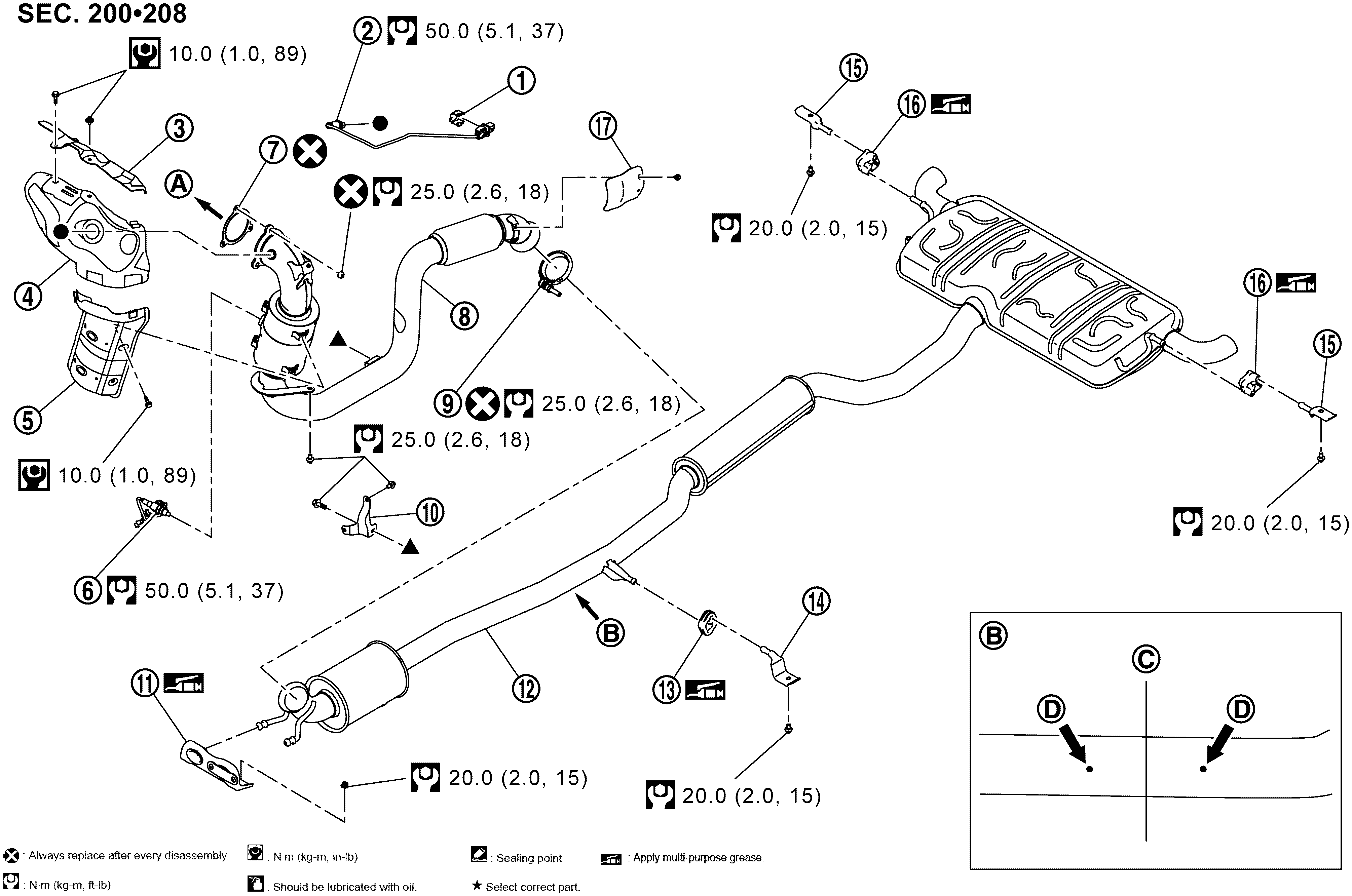

Fig 2: Exhaust System With Torque Specification (AWD Models)

GNSJSBIB0242GB-242

Courtesy of NISSAN NORTH AMERICA, INC.

	Clip		Air fuel ratio sensor		Heat insulator
	Heat insulator		Heat insulator		Heated oxygen sensor
	Gasket		Exhaust front tube		Tube clamp
	Bracket		Mounting bracket 1		Rear muffler assembly
	Mounting rubber		Mounting bracket 2		Mounting bracket 3
	Mounting rubber		Heat insulator
	To exhaust manifold and turbocharger assembly		View B		Cutting point
	Rear clamp install point
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
	: Always replace after every disassembly.
	: Should be lubricated with antifriction paste.
, : Indicates that the part is connected at points with same symbol in actual vehicle.
