Exploded View

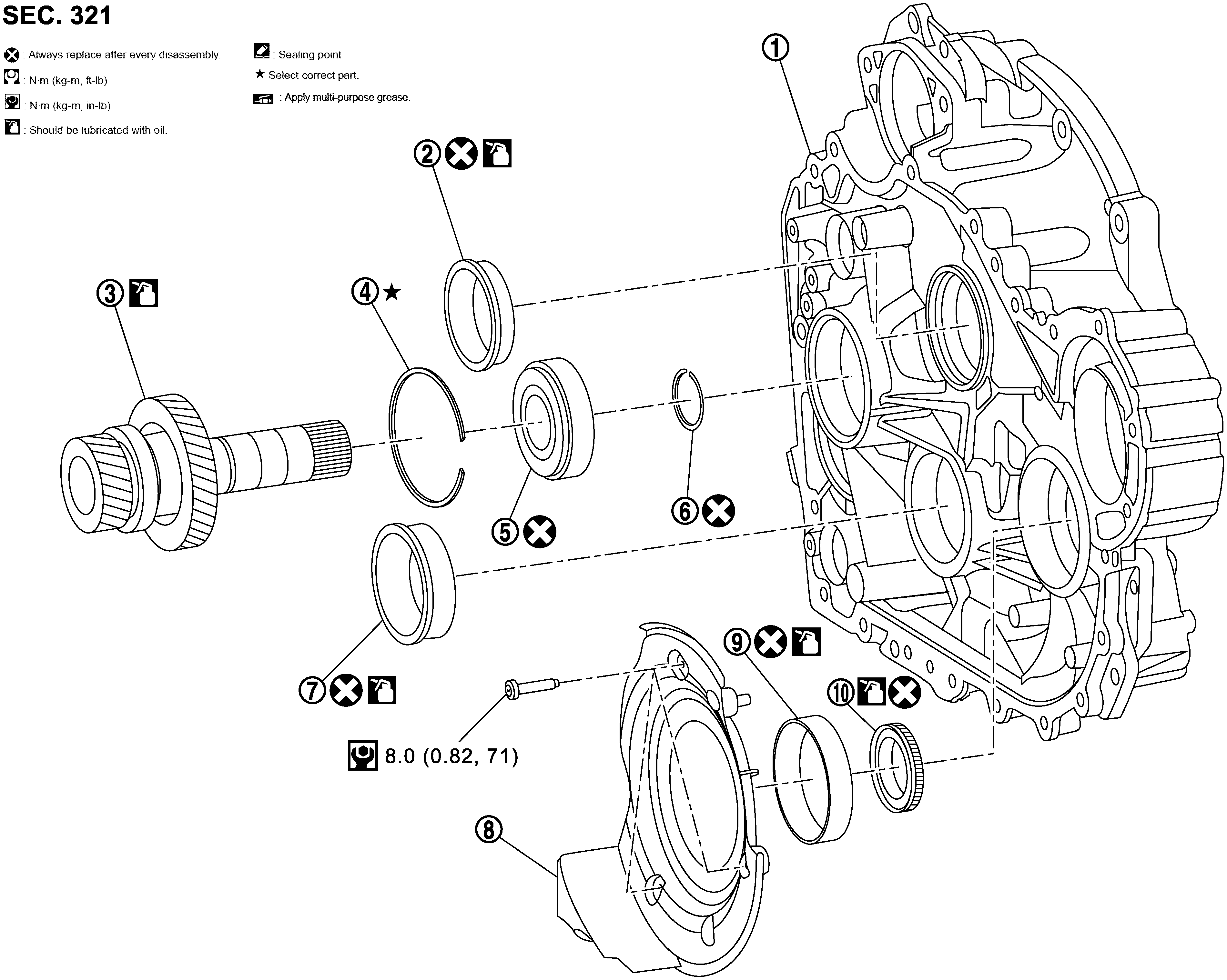

Fig 1: Clutch Housing With Torque Specification
GNSJSDIA8966GB-966Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Clutch housing

SYMBOL

Bearing

SYMBOL

Hollow shaft

SYMBOL

Lock ring

SYMBOL

Ball bearing

SYMBOL

Snap ring

SYMBOL

Bearing

SYMBOL

Cover

SYMBOL

Bearing

SYMBOL

Differential side oil seal

SYMBOL

: Always replace after every disassembly.

SYMBOL

: N.m (kg-m, in-lb)

SYMBOL

: Apply transaxle fluid

SYMBOL

: Select with proper thickness.
