Exploded View

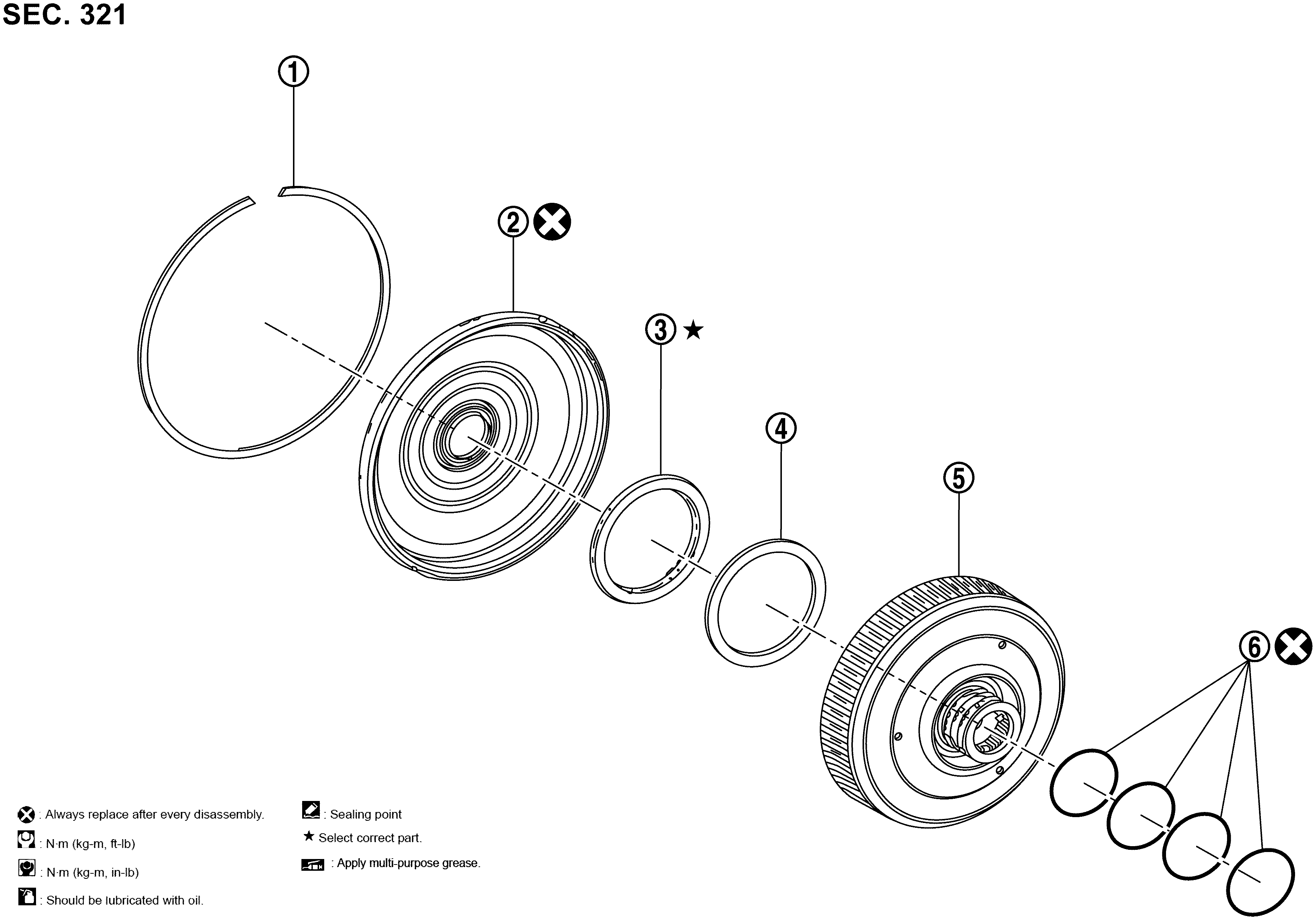

GNSJSDIA8933GB-933Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Snap ring

SYMBOL

Cover

SYMBOL

Shim

SYMBOL

Bearing

SYMBOL

Dual clutch

SYMBOL

Sealing ring

SYMBOL

: Always replace after every disassembly.

SYMBOL

: Select with proper thickness.
