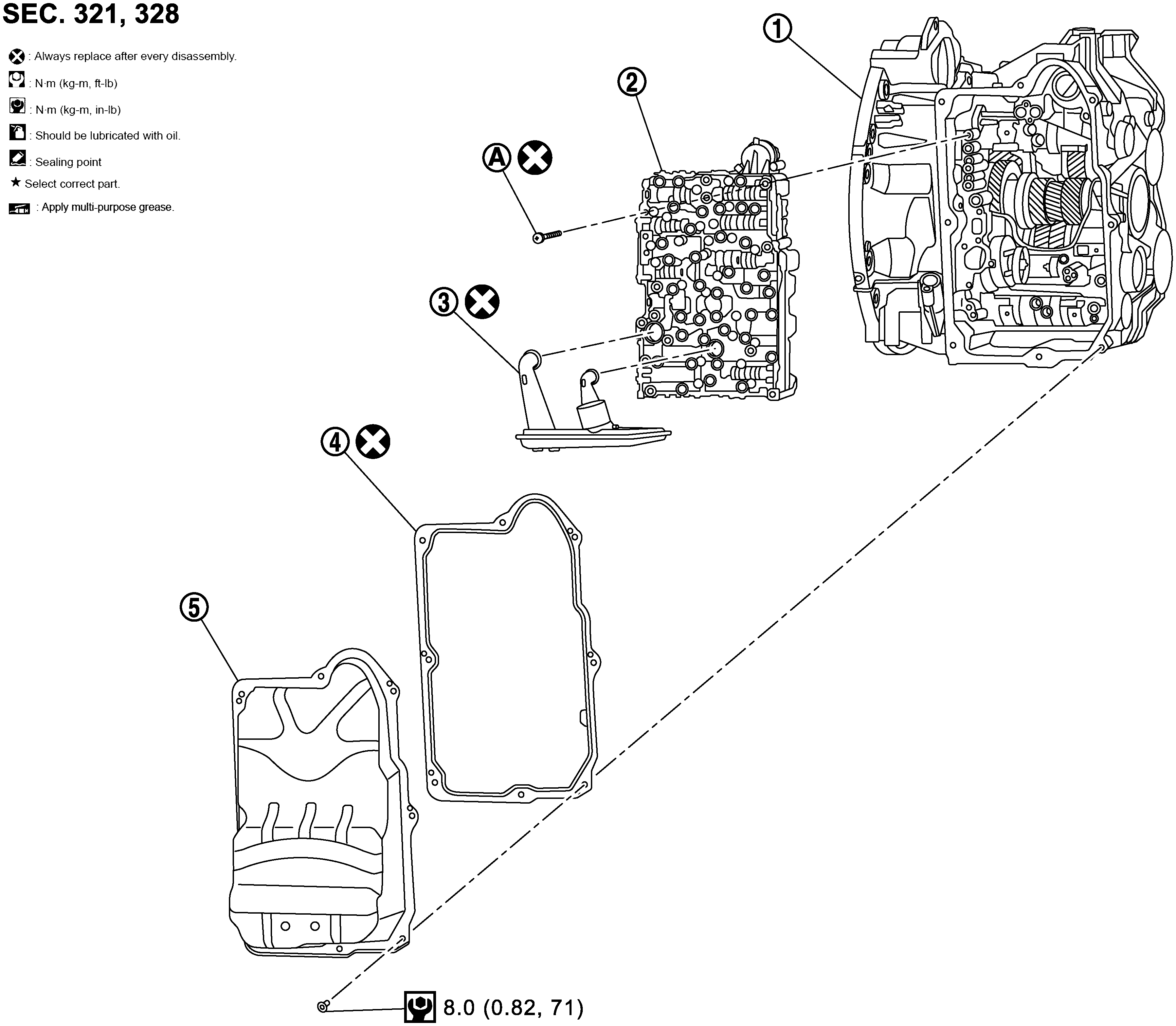

Transaxle Case Side 1

GNSJSDIA8932GB-932Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Transaxle assembly

SYMBOL

Electric oil pump, control valve, and TCM assembly

SYMBOL

Oil filter

SYMBOL

Gasket

SYMBOL

Oil pan

SYMBOL

: For the tightening torque, refer to Disassembly and Assembly .

SYMBOL

: Always replace after every disassembly.

SYMBOL

: N.m (kg-m, in-lb)
