Exploded View

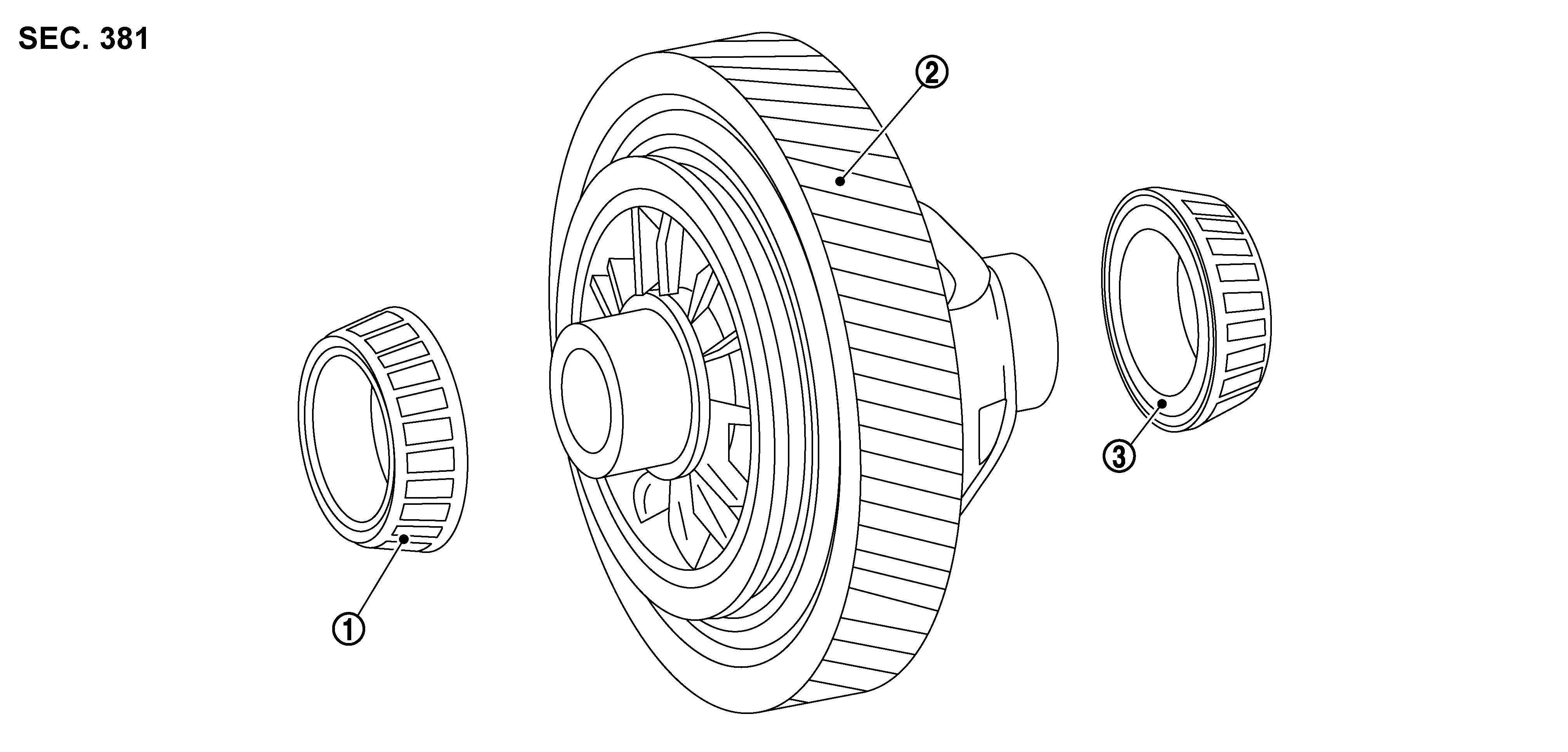

GNSJSDIA8940Z-940Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Differential side bearing

SYMBOL

Final drive assembly

SYMBOL

Differential side bearing
