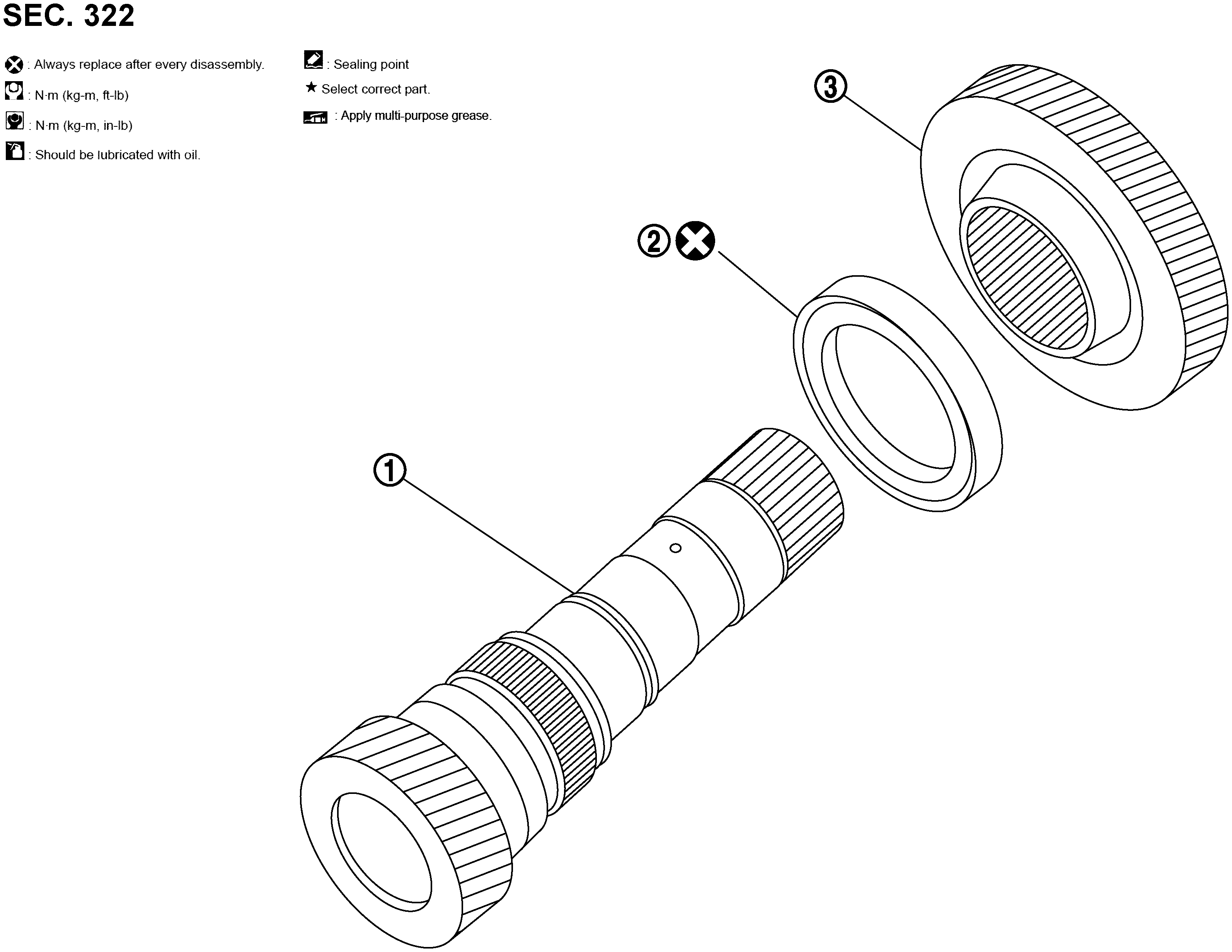

Exploded View

GNSJSDIA8936Z-936Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Hollow shaft

SYMBOL

Sensor rotor

SYMBOL

4th and 6th gear

SYMBOL

: Always replace after every disassembly.
