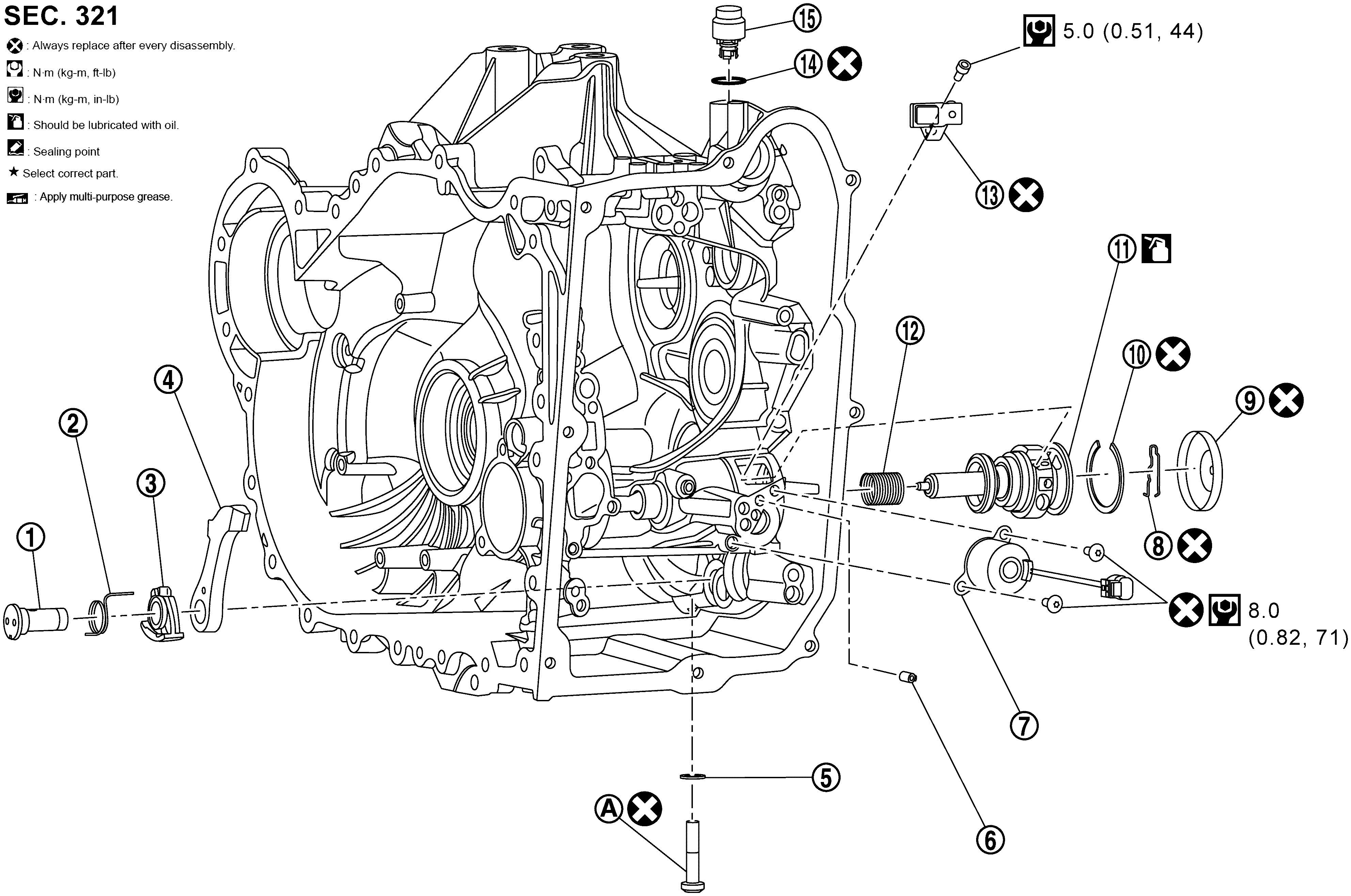

Exploded View
|
|
Lock pawl pin |
|
Coil spring |
|
Bearing bracket |
|
|
Lock pawl |
|
Washer |
|
Lock pin |
|
|
Park pawl lift solenoid |
|
Pin |
|
Cover |
|
|
Snap ring |
|
Park pawl actuator |
|
Compression spring |
|
|
Permanent magnet |
|
O-ring |
|
Air breather |
|
|
: For the tightening torque, refer to Disassembly and Assembly . |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: Apply transaxle fluid |
||||
|
|

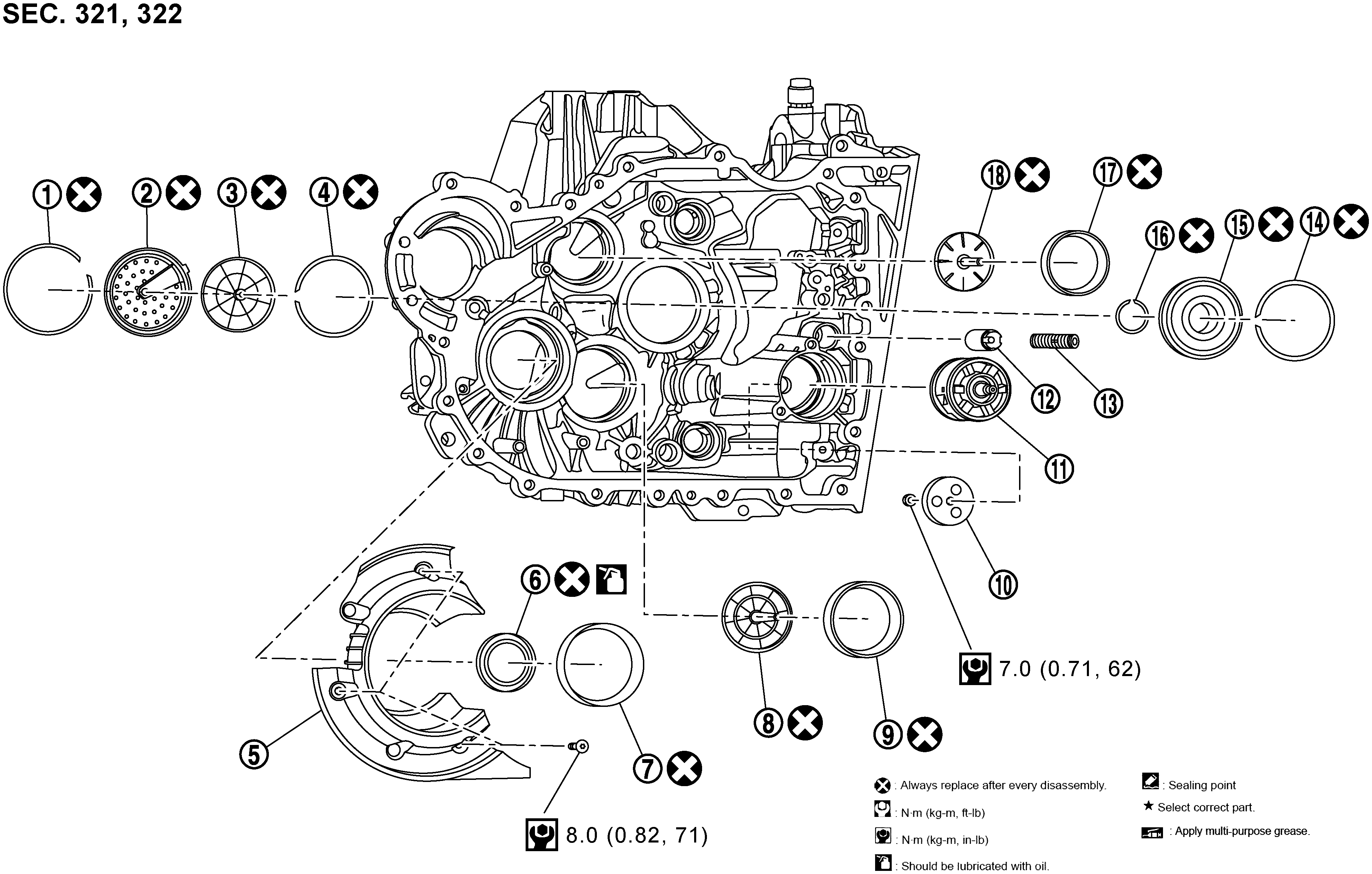

Snap ring |
|
Cover with oil duct |
|
Oil funnel |
|
|
Snap ring |
|
Cover |
|
Differential side oil seal |
|
|
Bearing |
|
Oil funnel |
|
Bearing |
|
|
Snap ring |
|
Oil pump |
|
Shift valve |
|
|
Shift valve spring |
|
Snap ring |
|
Ball bearing |
|
|
Snap ring |
|
Bearing |
|
Oil duct |
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: Apply transaxle fluid |
||||
