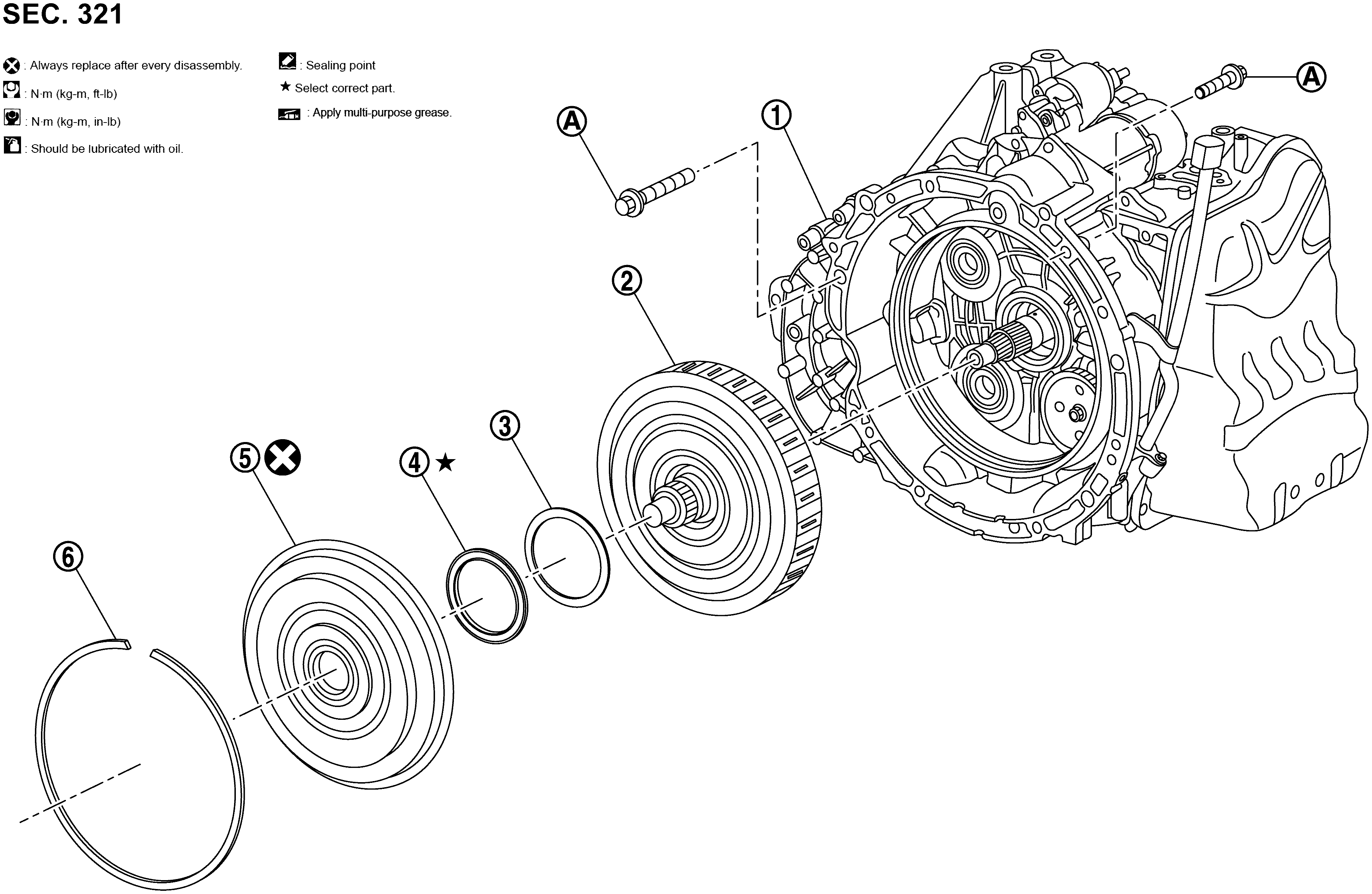

Exploded View
|
|
Transaxle assembly |
|
Dual clutch |
|
Bearing |
|
|
Shim |
|
Cover |
|
Snap ring |
|
|
: For the tightening torque, refer to Removal and Installation . |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: Select with proper thickness. |
||||
