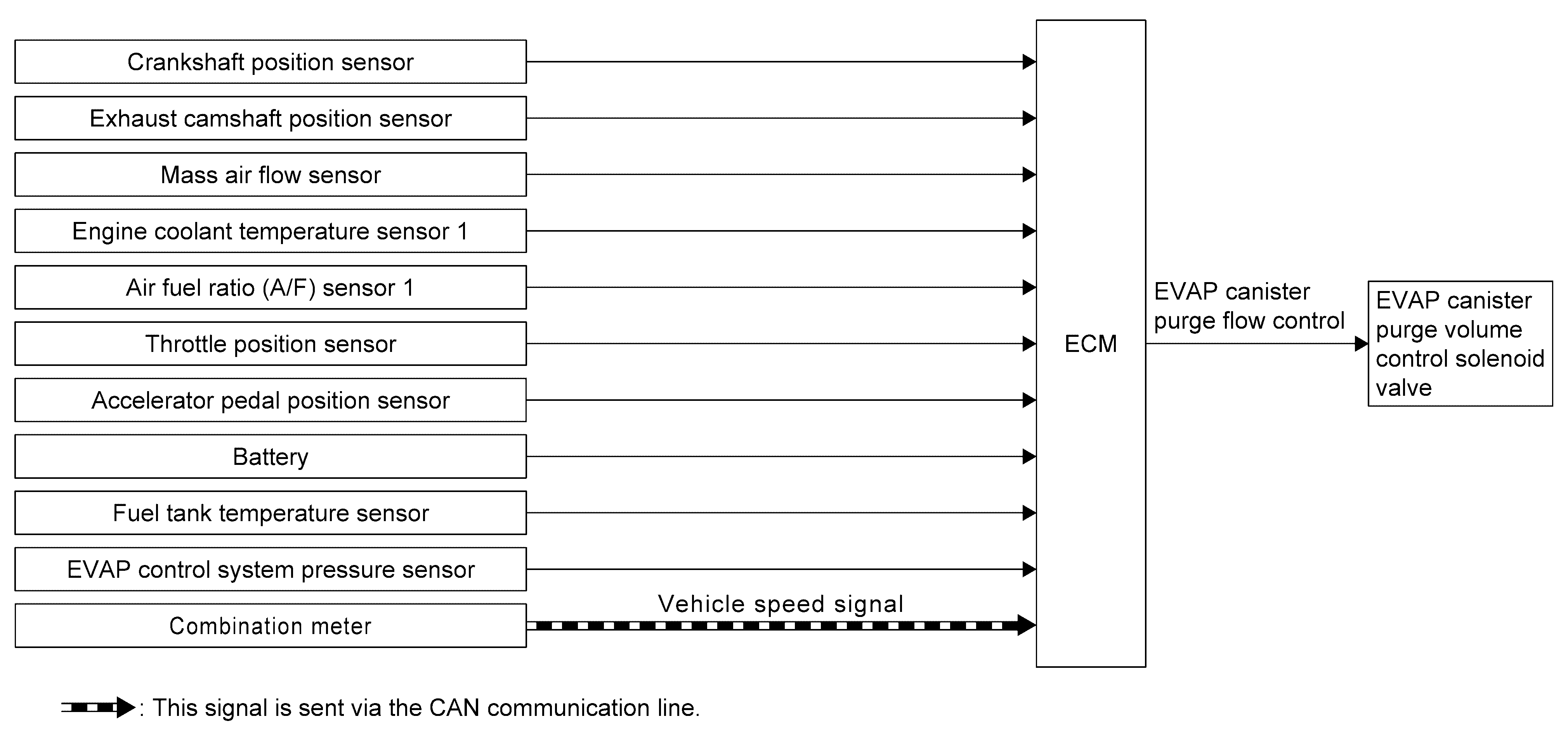

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor |
|
|
Exhaust camshaft position sensor |
|
|
Mass air flow sensor (With intake air temperature sensor) |
|
|
Engine coolant temperature sensor |
|
|
Air Fuel Ratio (A/F) Sensor 1 |
|
|
Electric throttle control actuator |
Electric Throttle Control Actuator |
|
Accelerator pedal position sensor |
|
|
Battery |
ECM detects the battery voltage. |
|
Fuel Tank Temperature Sensor |
|
|
EVAP canister purge volume control solenoid valve |
|
|
Combination meter |
It transmits the vehicle speed signal to ECM via CAN communication. |
|
ECM |
|
|
EVAP Canister Purge Volume Control Solenoid Valve |
