System Control Condition Display

Quickly push (less than 1.5 seconds) and release the ICC MAIN switch.

Condition

Display on ICC system display

Standby mode

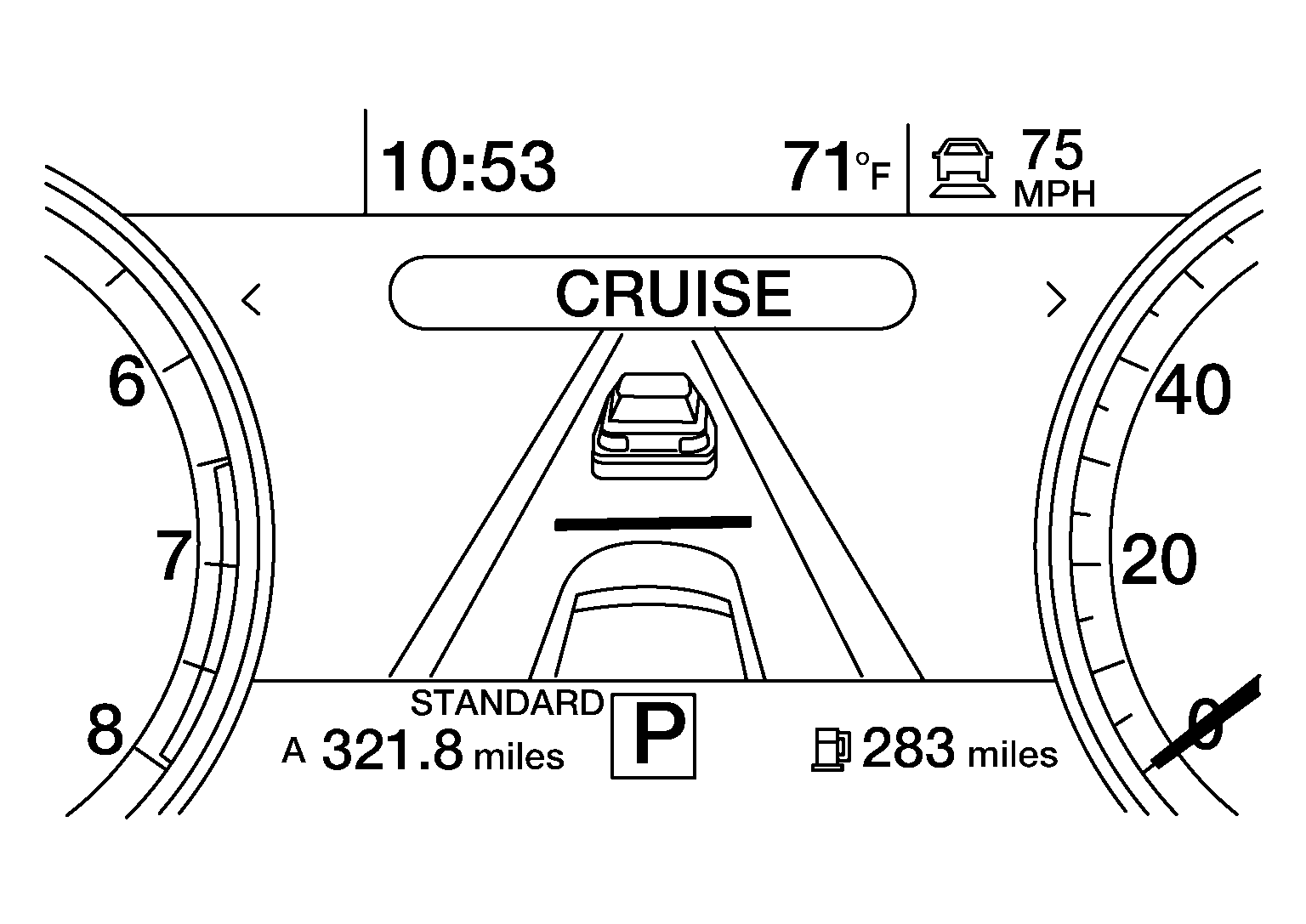

GNSALOIA0044Z-044Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

Without a vehicle ahead

Set vehicle distance (Long)

GNSALOIA0045Z-045Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Middle)

GNSALOIA0046Z-046Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Short)

GNSALOIA0047Z-047Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle speed exceeds the set speed

GNSALOIA0048Z-048Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

With a vehicle ahead

Set vehicle distance (Long)

GNSDB124243Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Middle)

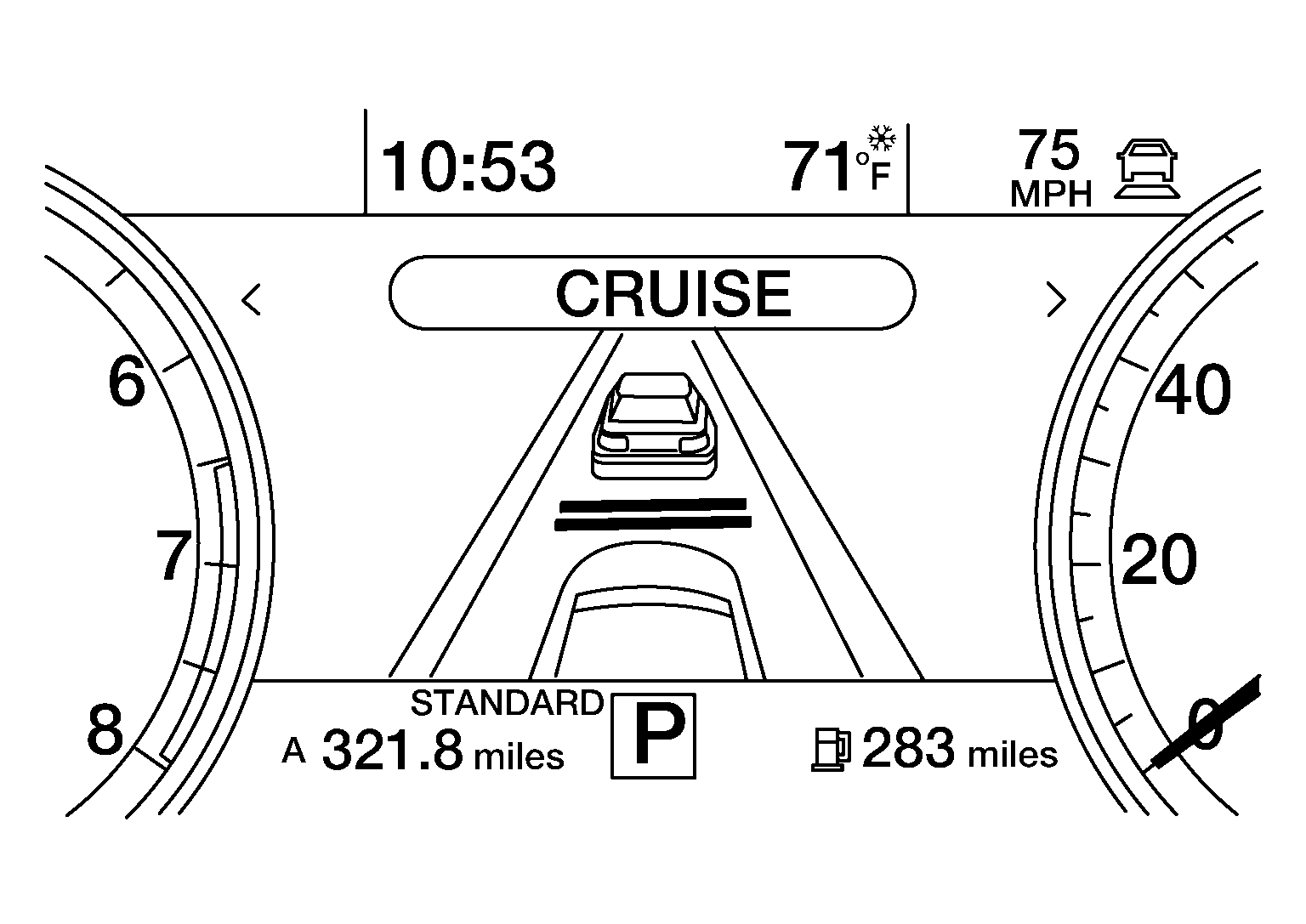

GNSALOIA0051Z-051Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Short)

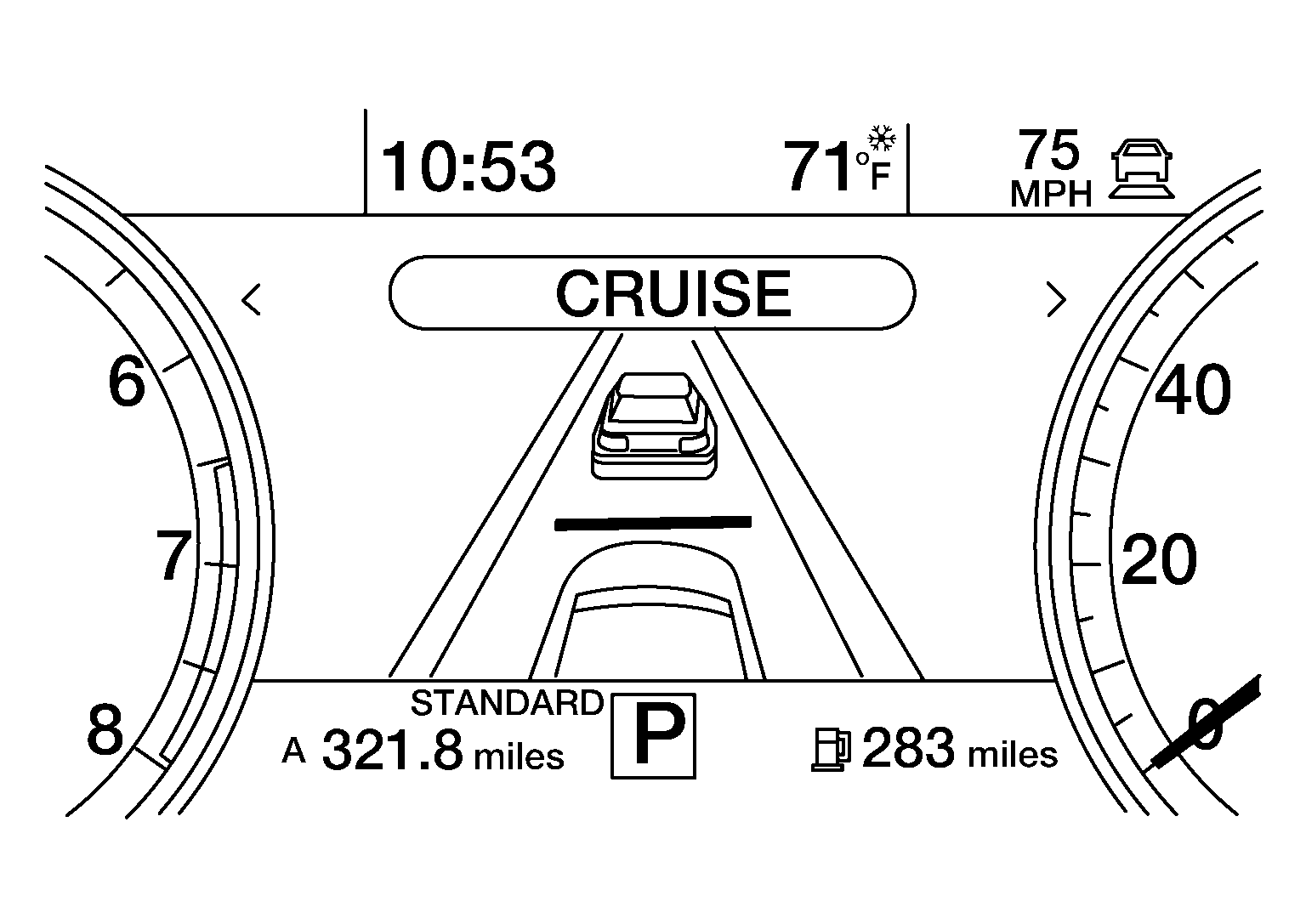

GNSDB122393Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle speed exceeds the set speed

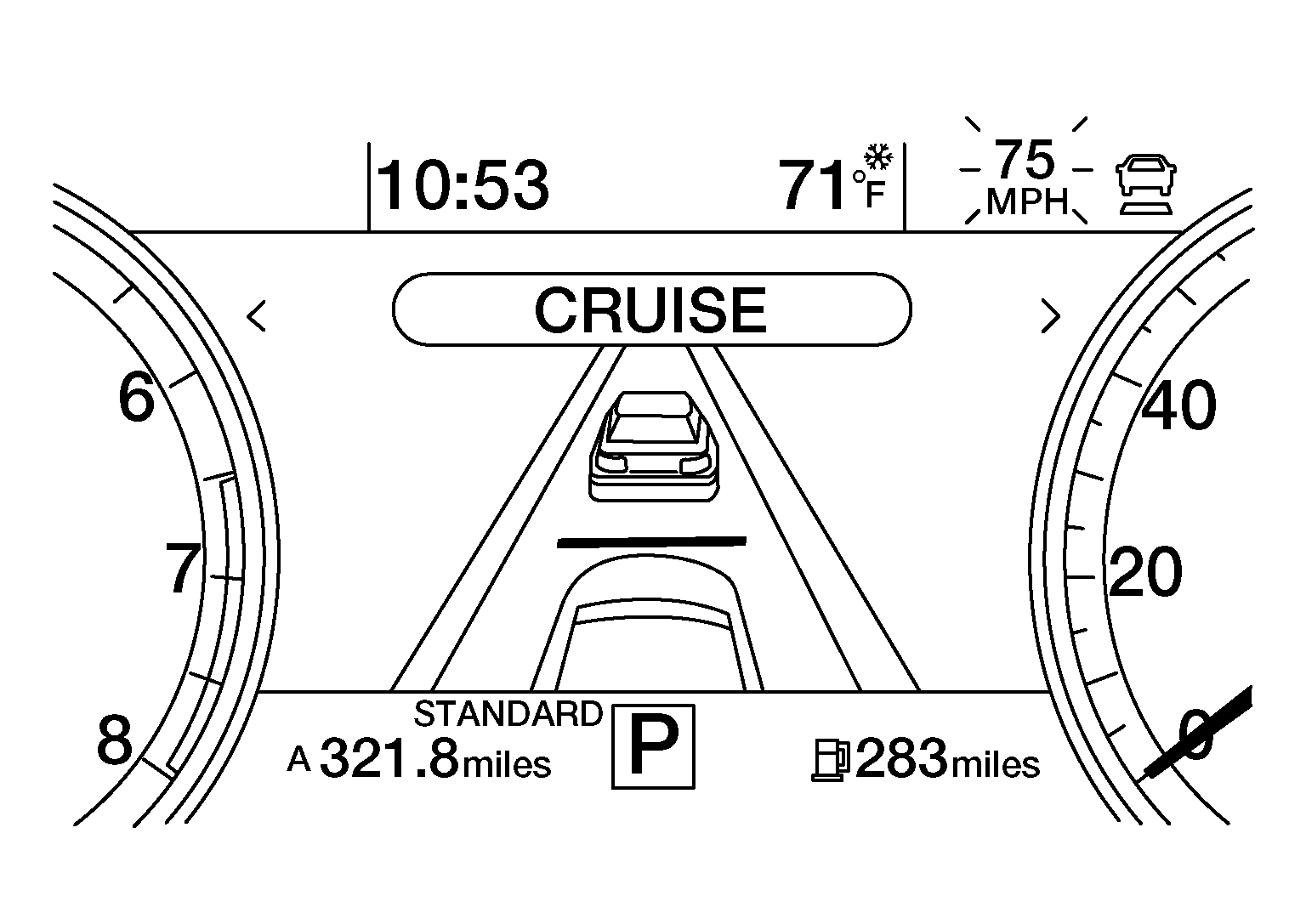

GNSDB115343Courtesy of NISSAN NORTH AMERICA, INC.
