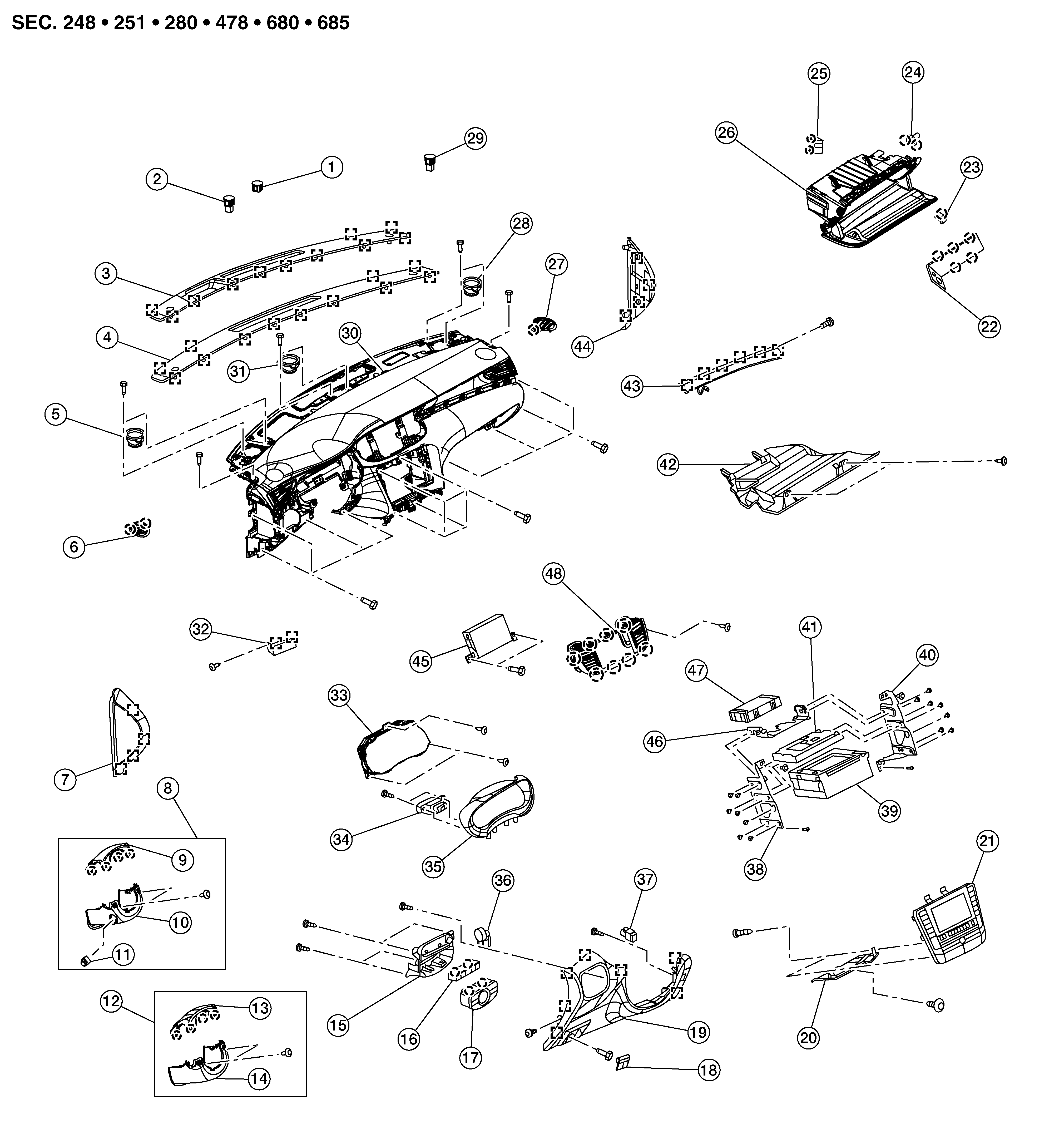

Exploded View
|
1. |
Mask hole cover |
2. |
Optical sensor |
3. |
Defroster grille (with head up display) |
|
4. |
Defroster grille (without head up display) |
5. |
Instrument panel tweeter (LH) |
6. |
Side defroster grille (LH) |
|
7. |
Instrument side finisher (LH) |
8. |
Steering column cover assembly (with ADP steering switch) |
9. |
Steering column cover (upper) |
|
10. |
Steering column cover (lower) |
11. |
ADP steering switch |
12. |
Steering column cover assembly (without ADP steering switch) |
|
13. |
Steering column cover (upper) |
14. |
Steering column cover (lower) |
15. |
Switch carrier |
|
16. |
ITS switch assembly |
17. |
Master light switch |
18. |
Hood lock release handle |
|
19. |
Instrument panel lower LH |
20. |
Cluster lid C |
21. |
Integral switch |
|
22. |
In-cabin microfilter access door |
23. |
Automatic back door main switch |
24. |
Glove box lamp |
|
25. |
SD interface |
26. |
Glove box assembly |
27. |
Side defroster grille (RH) |
|
28. |
Instrument panel tweeter (RH) |
29. |
Sunload sensor |
30. |
Instrument panel |
|
31. |
Center speaker |
32. |
Instrument finisher A |
33. |
Combination meter |
|
34. |
Trip reset switch |
35. |
Cluster lid A |
36. |
Warning buzzer |
|
37. |
In-vehicle sensor |
38. |
AV control unit bracket (LH) |
39. |
AV control unit |
|
40. |
AV control unit bracket (RH) |
41. |
NAVI control unit |
42. |
Instrument panel cover lower (RH) |
|
43. |
Instrument finisher B |
44. |
Instrument side finisher (RH) |
45. |
Display control unit |
|
46. |
TCU bracket |
47. |
TCU |
48. |
Cluster lid D |
|
|
: Metal clip |
|
: Pawl |
