Component Inspection
- EXHAUST VALVE TIMING (EVT) CONTROL POSITION SENSOR-1
- Turn ignition switch OFF.
- Loosen the sensor mounting bolt.
- Disconnect the EVT control position sensor harness connector.
- Remove the EVT control position sensor.

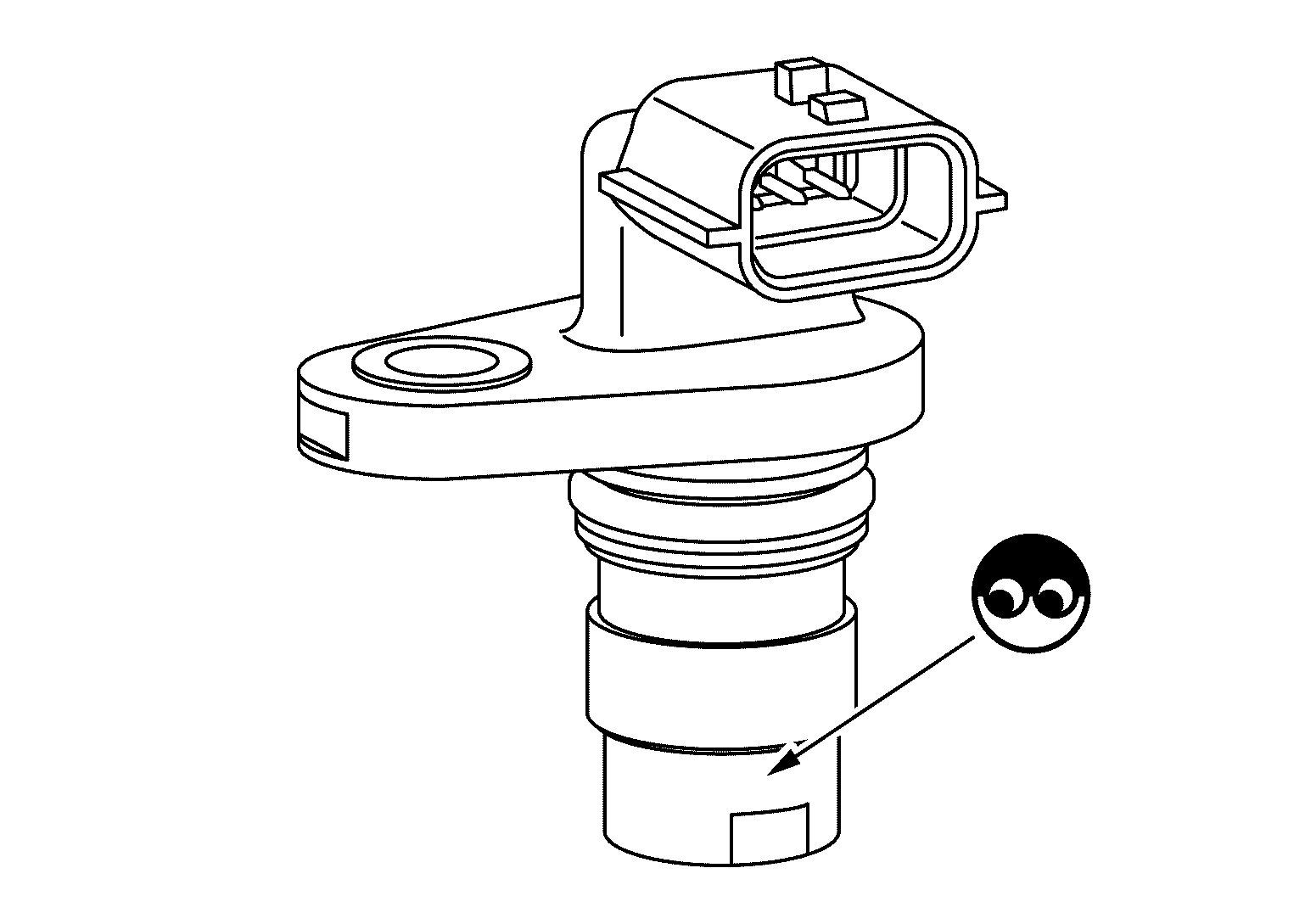

- Visually check the sensor for chipping.
Is the inspection result normal?
YES
GO TO 2.
NO
Replace EVT control position sensor. Refer to Exploded View .
- EXHAUST VALVE TIMING (EVT) CONTROL POSITION SENSOR-2
Check resistance between EVT control position sensor terminals as shown below.
EVT control position sensor
Condition
Resistance
Terminal
1
2
Temperature
25 deg.C (77 deg.F)
Except 0 Ohm
3
2
3
Is the inspection result normal?
YES
INSPECTION END
NO
Replace EVT control position sensor. Refer to Exploded View .
