Individual Function Within The System

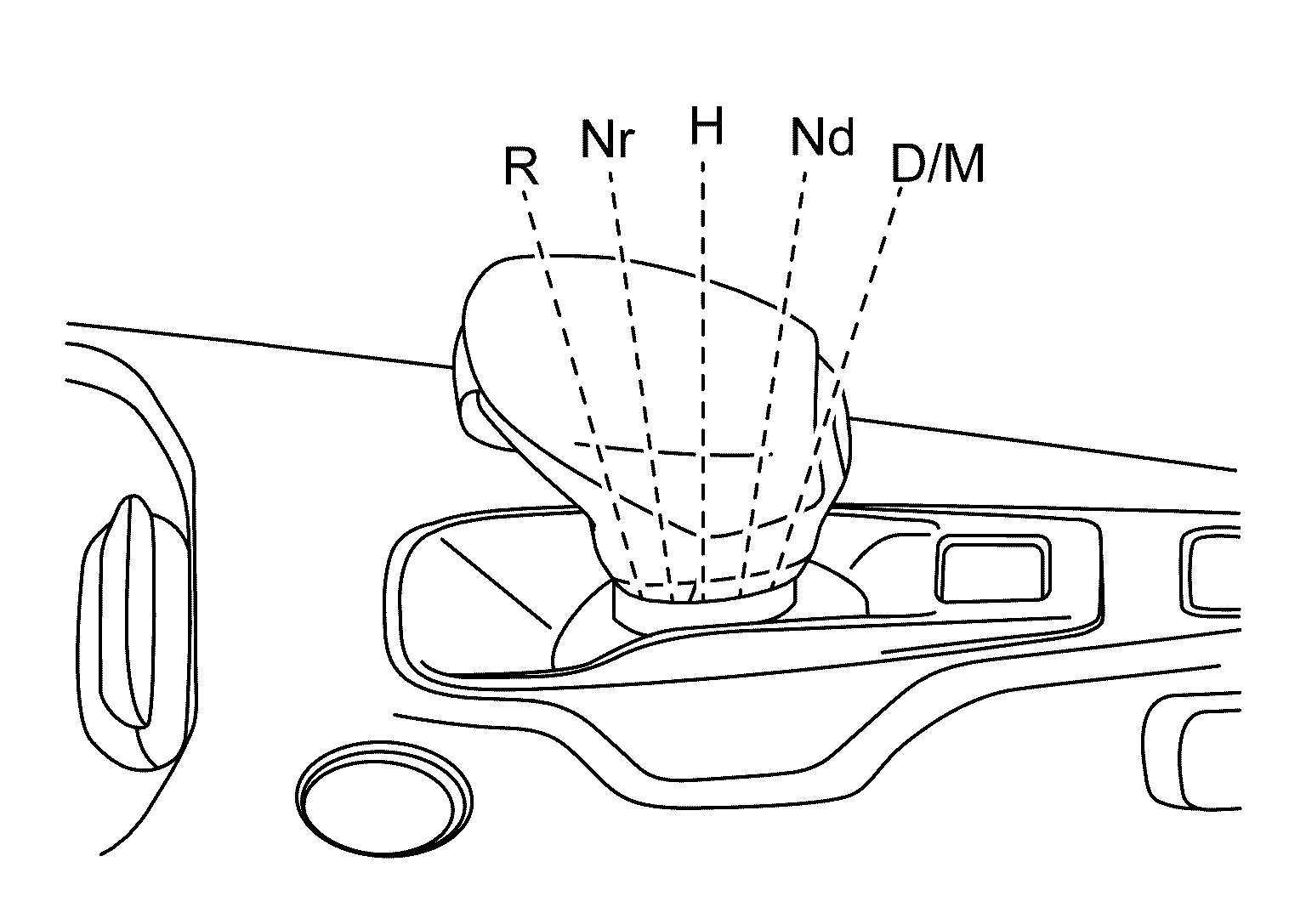

Shift selector position	Operation/Function
H (Home position)	The selector lever automatically moves back to the home position after it is operated.	Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC. Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC.

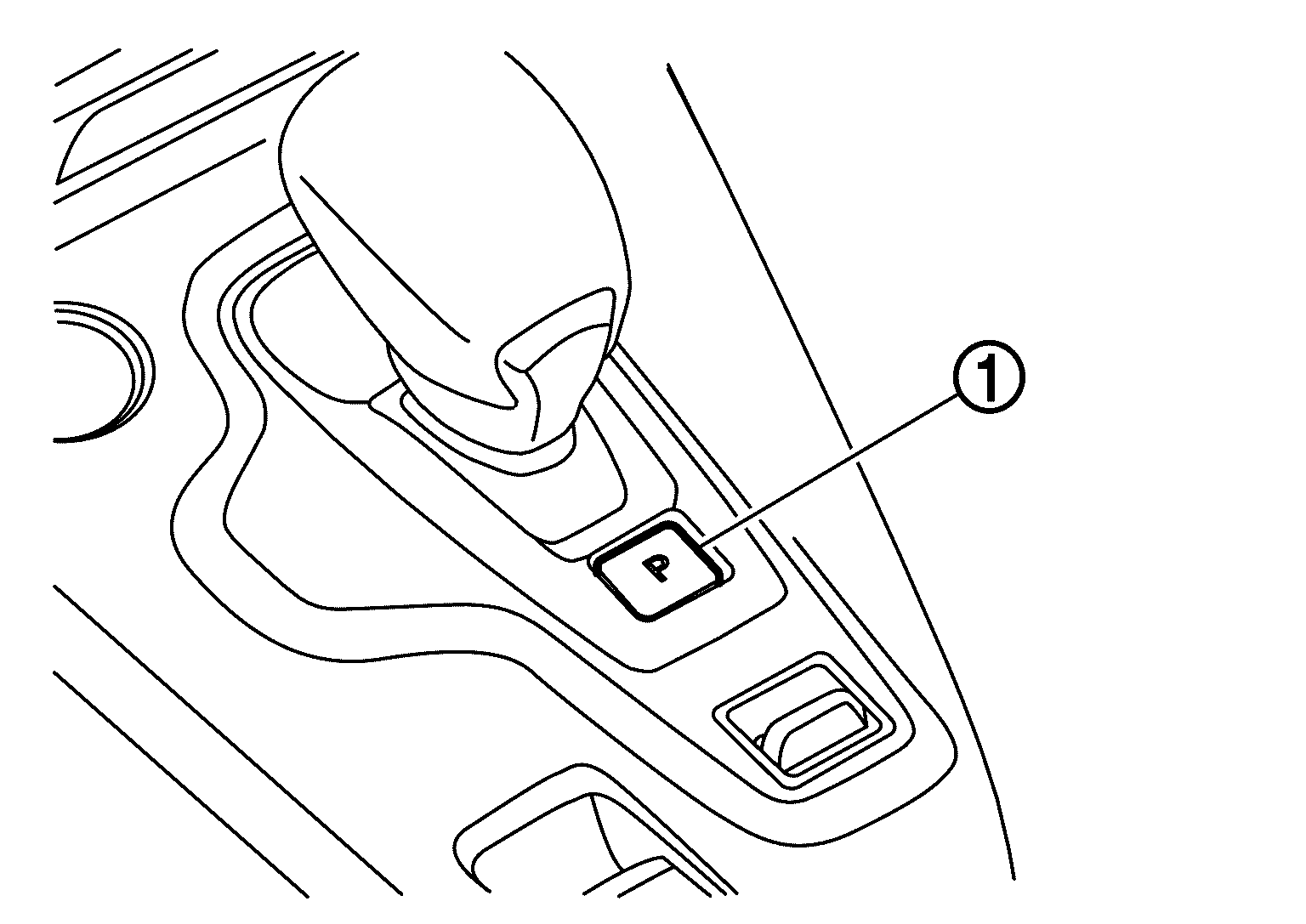

P (P position switch )	Completely stop the vehicle and press the P position switch while depressing the brake pedal. The shift position changes to P.
R	While depressing the brake pedal, press the selector knob button and shift the selector lever to R position. The shift position changes to R.
Nr	When shift position is D or M, while depressing the brake pedal, shift the selector lever to the Nr position and hold it for approx. 0.5 second. The shift position changes to N. NOTE: Even if selector lever is shifted to the Nr position when shift position is R, the shift position does not change to N and the shift position warning buzzer sounds.
Nd	When shift position is R, while depressing the brake pedal, shift the selector lever to the Nd position and hold it for approx. 0.5 second. The shift position changes to N. NOTE: Even if selector lever is shifted to the Nd position when shift position is D or M, the shift position does not change to N and the shift position warning buzzer sounds.
D/M	While depressing the brake pedal, shift the selector lever to D/M position. The shift position changes to D. While driving in the D position, shift the selctor lever to D/M position again. The shift position changes to M (manual mode) To switch from M (manual mode) to the D driving, shift the selector lever to D/M position again.

: Hold : Current shift position : Be able to shift here

OPERATIONAL CONDITIONS FOR SHIFT

POWER SW	Operation	Vehicle speed	Stop lamp switch	Shift position					Remarks
POWER SW	Operation	Vehicle speed	Stop lamp switch	P	R	N	D	M	Remarks
OFF/ACC	Selector lever	--	--		--				--
OFF/ACC	P position SW	--	--		--				--
ON (Engine stop)	Selector lever	--	ON		--		--	--	Shifted to N position even when shifted to R or D position Shift position warning buzzer: Two short beeps
	Selector lever	--	OFF		--	Shift position warning buzzer: Two short beeps
	P position SW	--	--		--		--	--	--
ON (Engine running)	Selector lever	--	ON					^*	--
	Selector lever	--	OFF		--	Shift position warning buzzer: Two short beeps
	P position SW	5 km/h (3 MPH) or less	--						--
	P position SW	5 km/h (3 MPH) or more	--	--					Shift position warning buzzer: Two short beeps

*: Direct shifting to the M position (manual mode) from the P position is not possible.
