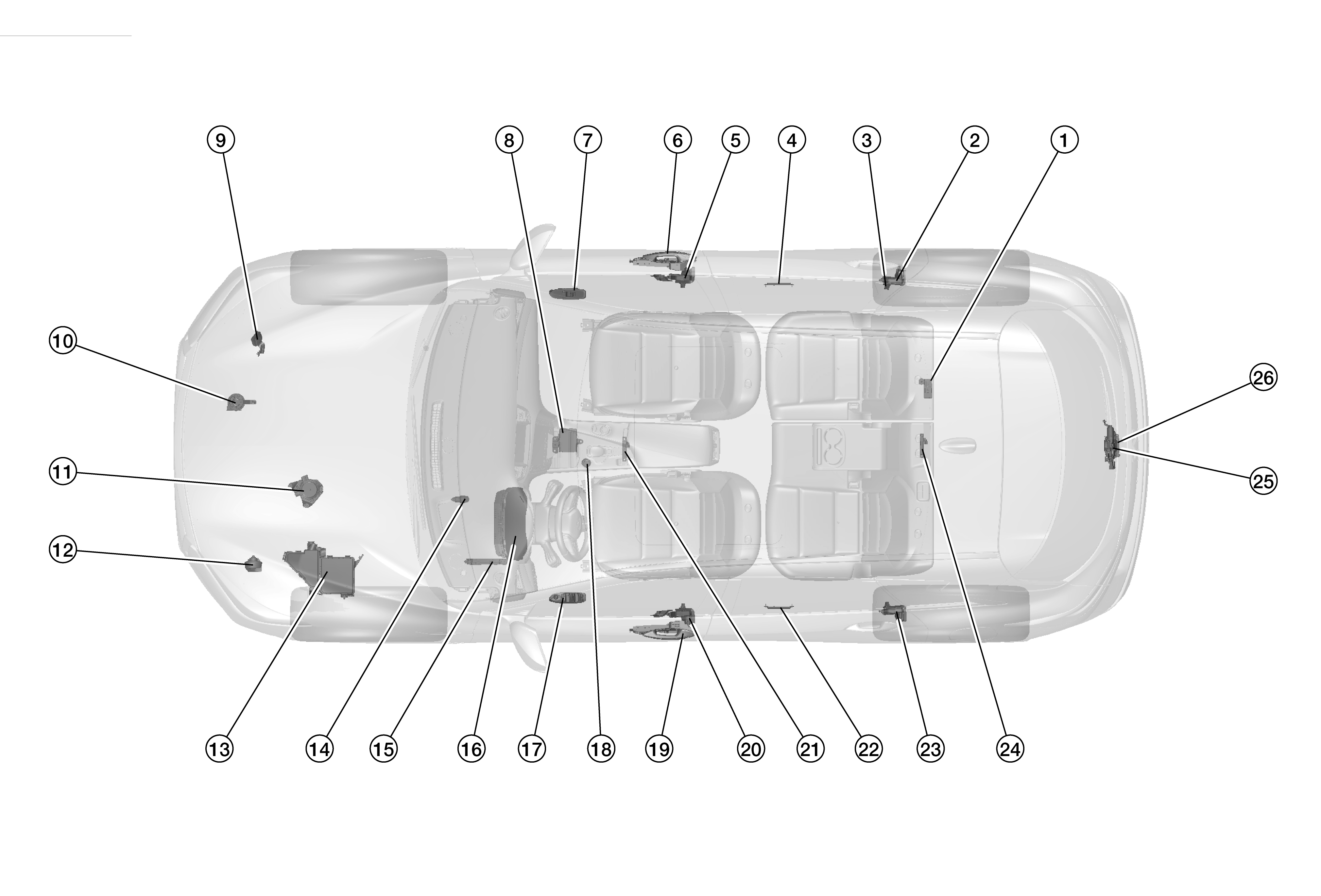

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Remote keyless entry receiver	Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key and then transmits them to BCM. Refer to Remote Keyless Entry Receiver .
2.	Rear door lock actuator RH	Rear door lock actuator locks/unlocks the rear door latch assembly.
3.	Rear door switch RH	Refer to Rear Door Switch .
4.	Outside key antenna RH	Outside key antenna (RH) detects whether Intelligent Key is outside the vehicle or not and then transmits the signal to the BCM. Refer to Outside Key Antenna (RH) .
5.	Front door lock actuator RH	Front door lock actuator locks/unlocks the front door latch assembly.
6.	Front door switch RH	Refer to Front Door Switch .
7.	Power window and door lock/unlock switch RH	Door lock and unlock switch transmits door lock/unlock operation signal to BCM.
8.	Shift by wire control unit	Shift by wire control unit detects the shift lever status, transmits park position signal to the BCM.
9.	Intelligent Key warning buzzer	Intelligent Key warning buzzer warns the user, who is outside the vehicle, of operation confirmation according to Intelligent Key operation and door request switch operation, or of an inappropriate operation.
10.	Horn (low)	Horns are operated when the panic button on the Intelligent Key is pressed or the alarm is activated.
11.	Transmission range switch	Refer to Transmission Range Switch .
12.	Horn (high)	Horns are operated when the panic button on the Intelligent Key is pressed or the alarm is activated.
13.	IPDM E/R	Refer to Component Location.
14	Stop lamp switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch .
15.	BCM	BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS [IVIS (NATS)] and VEHICLE SECURITY SYSTEM. BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to Component Location for detailed installation location.
16.	Combination meter	Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS [IVIS (NATS)] is on board. Refer to Component Location .
17.	Main power window and door lock/unlock switch	Door lock and unlock switch is integrated into the main power window and door lock/unlock switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to Main Power Window And Door Lock/Unlock Switch .
18.	Push-button ignition switch/NATS antenna amp	Push-button ignition switch has push switch inside which detects that push-button ignition switch is pressed, and then transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated. Refer to NATS Antenna Amp. .
19.	Front door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
20.	Front door lock assembly LH	Door key cylinder switch is integrated into front door lock assembly (driver side). Door key cylinder switch detects door LOCK/UNLOCK operation using mechanical key, and then transmits the operation signal to BCM. Refer to Front Door Lock Assembly (LH) .
21.	Inside key antenna (console)	Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to Inside Key Antenna (Console) .
22.	Outside key antenna LH	Outside key antenna (LH) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to Outside Key Antenna (LH) .
23.	Rear door lock actuator LH	Rear door lock actuator locks/unlocks the rear door latch assembly.
24.	Inside key antenna (luggage room)	Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM.
25.	Back door lock assembly	Back door lock actuator locks/unlocks the back door latch assembly.
26.	Outside key antenna (rear bumper)	Outside key antenna (Rear bumper) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to Outside Key Antenna (Rear Bumper) .
