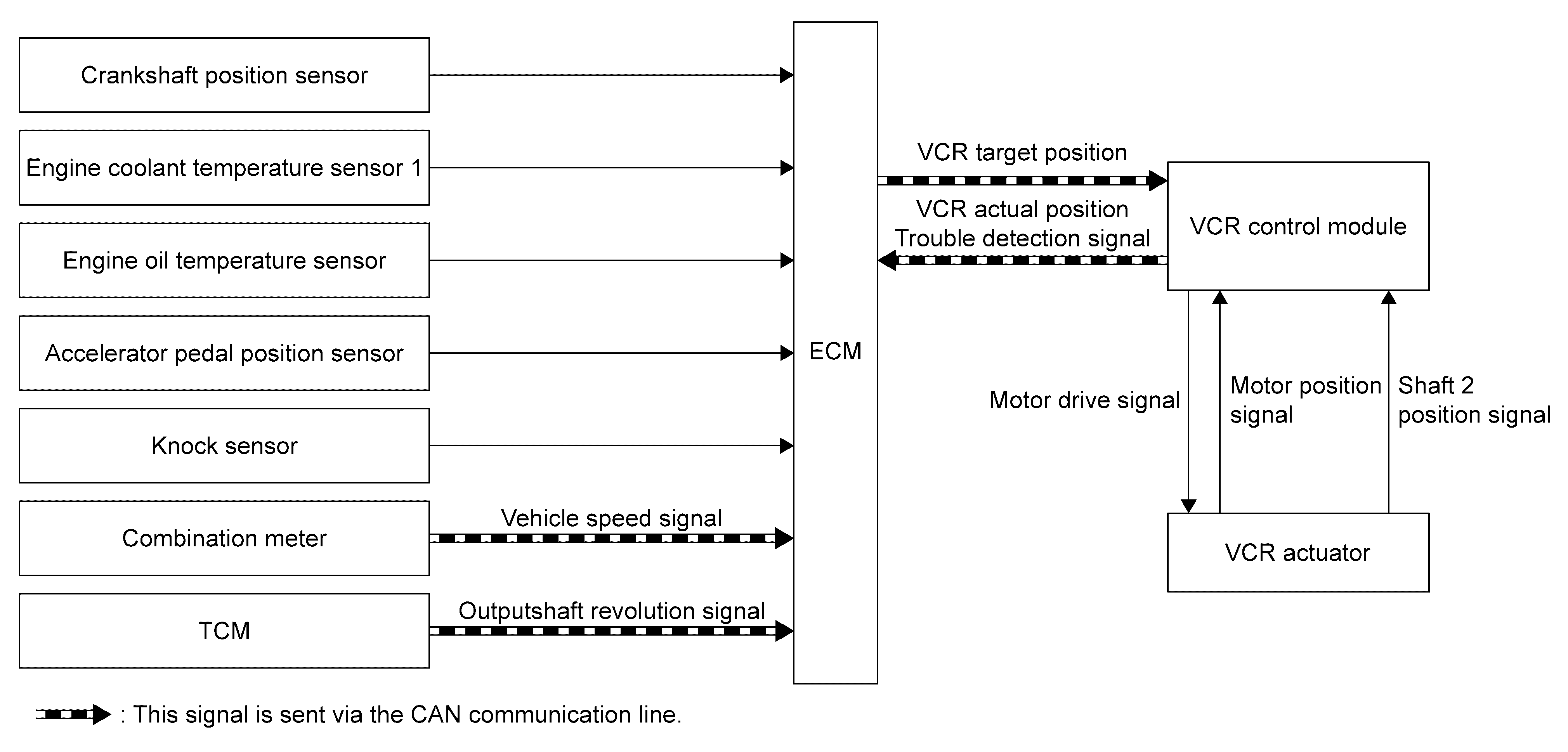

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor |
|
|
Engine Coolant Temperature Sensor 1 |
|
|
Engine Oil Temperature Sensor |
|
|
Accelerator Pedal Position Sensor |
|
|
Knock Sensor |
|
|
Combination meter |
ECM receives the vehicle speed signal via CAN communication. |
|
TCM |
ECM receives the G sensor signal via CAN communication. |
|
ECM |
|
|
VCR control module |
|
|
VCR actuator |
