Exploded View

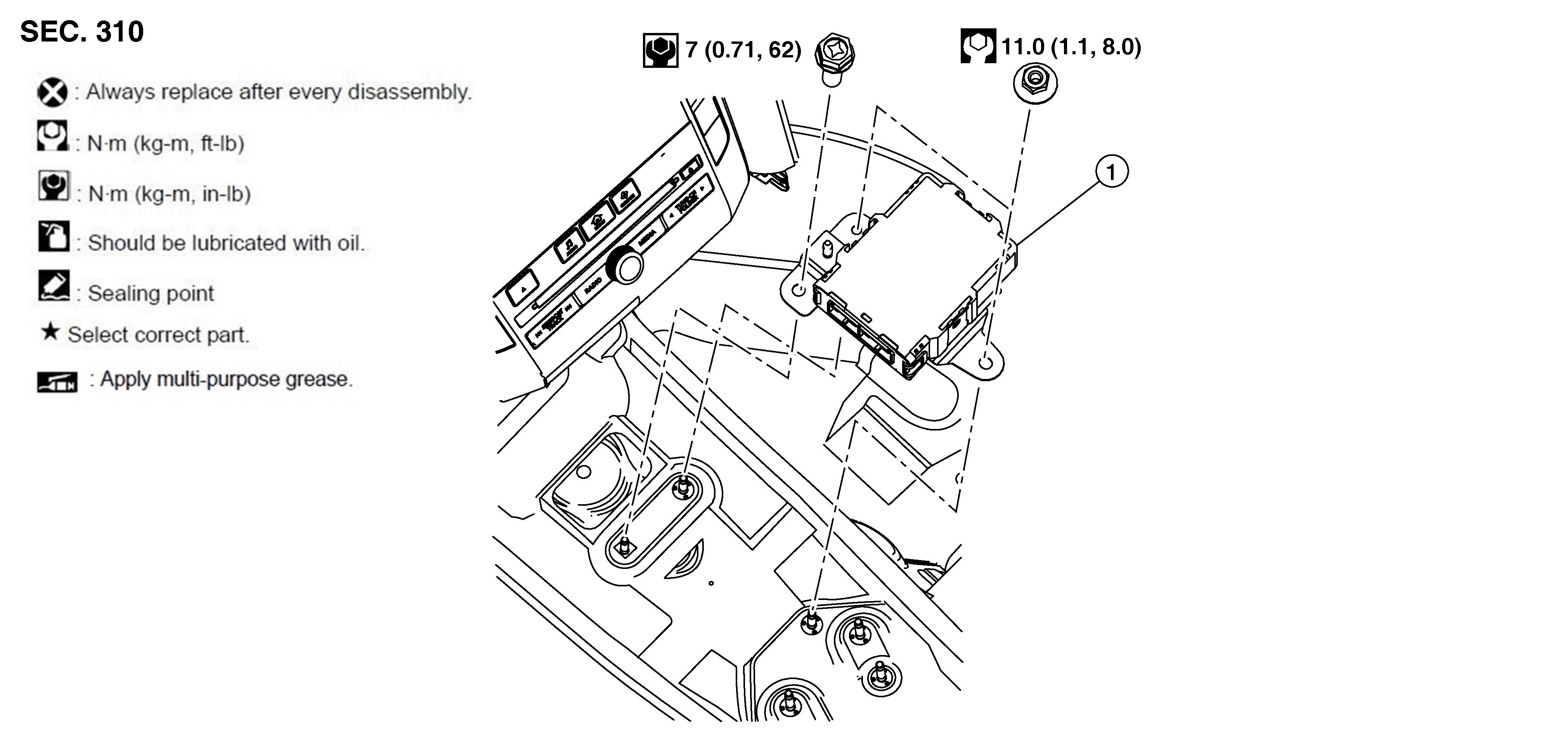

Fig 1: Electric Shift Control Module With Torque Specifications
GNSALDIA0167Z-167Courtesy of NISSAN NORTH AMERICA, INC.

1.

Electric shift control module
