Exploded View

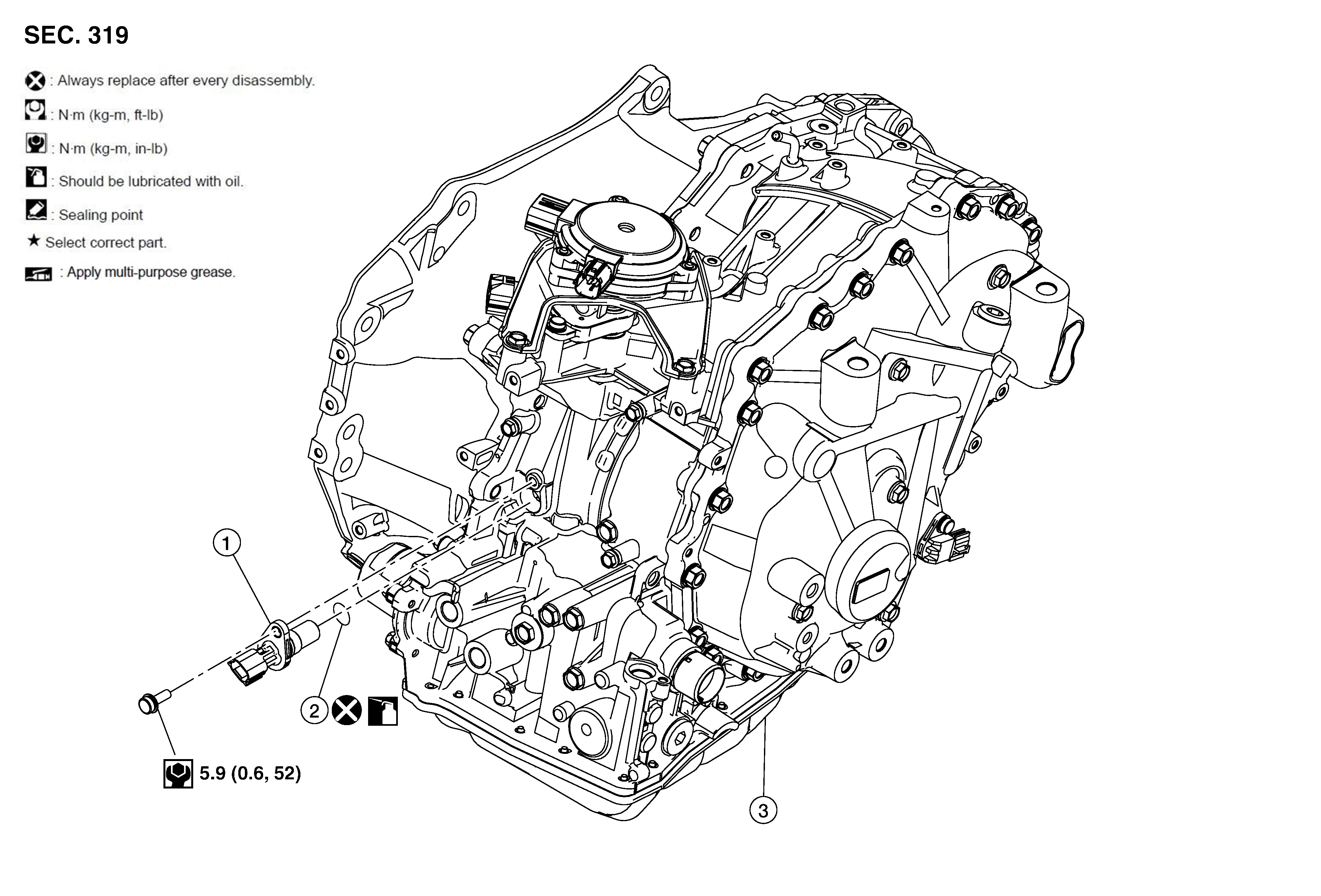

Fig 1: Input Speed Sensor With Torque Specifications
GNSALDIA0076Z-076Courtesy of NISSAN NORTH AMERICA, INC.

1.

Input speed sensor

2.

O-ring

3.

Transaxle assembly
