Exploded View

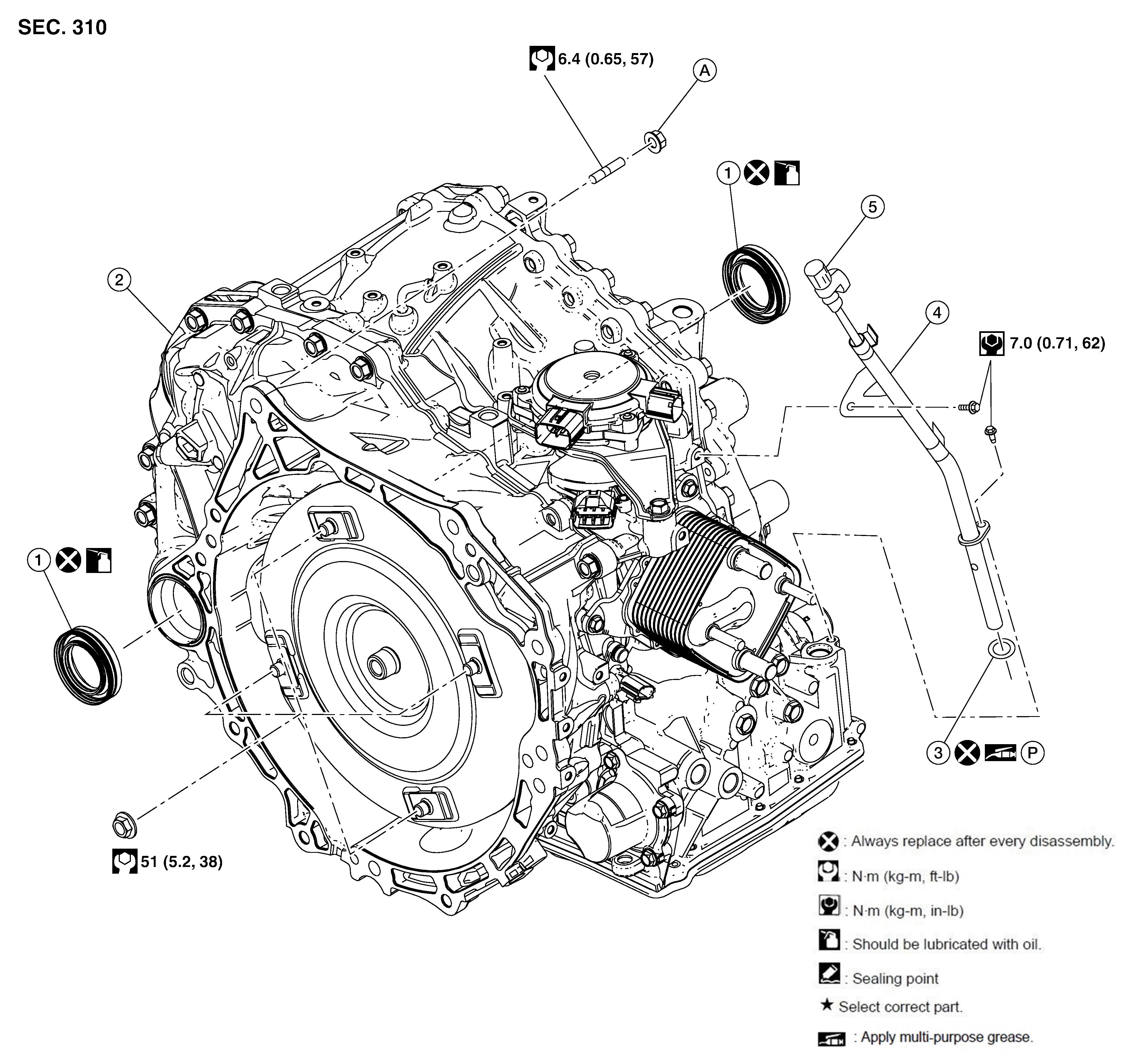

Fig 1: Transaxle Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Differential side oil seal	2.	Transaxle assembly	3.	O-ring
4.	CVT fluid charging pipe	5.	CVT fluid charging pipe cap	A.	Refer to Removal and Installation .

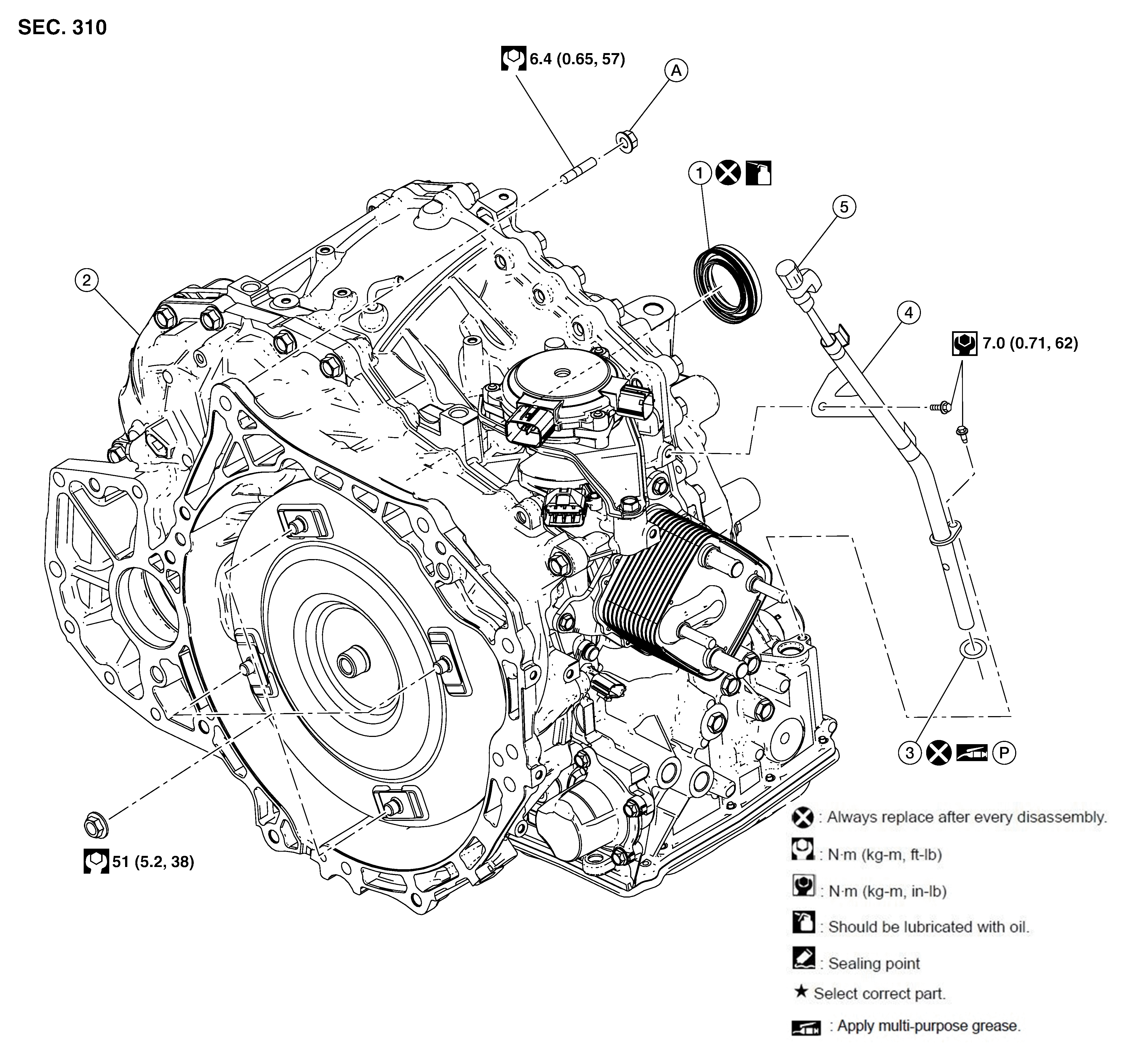

Fig 2: AWD Models With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Differential side oil seal	2.	Transaxle assembly	3.	O-ring
4.	CVT fluid charging pipe	5.	CVT fluid charging pipe cap	A.	Refer to Removal and Installation .
