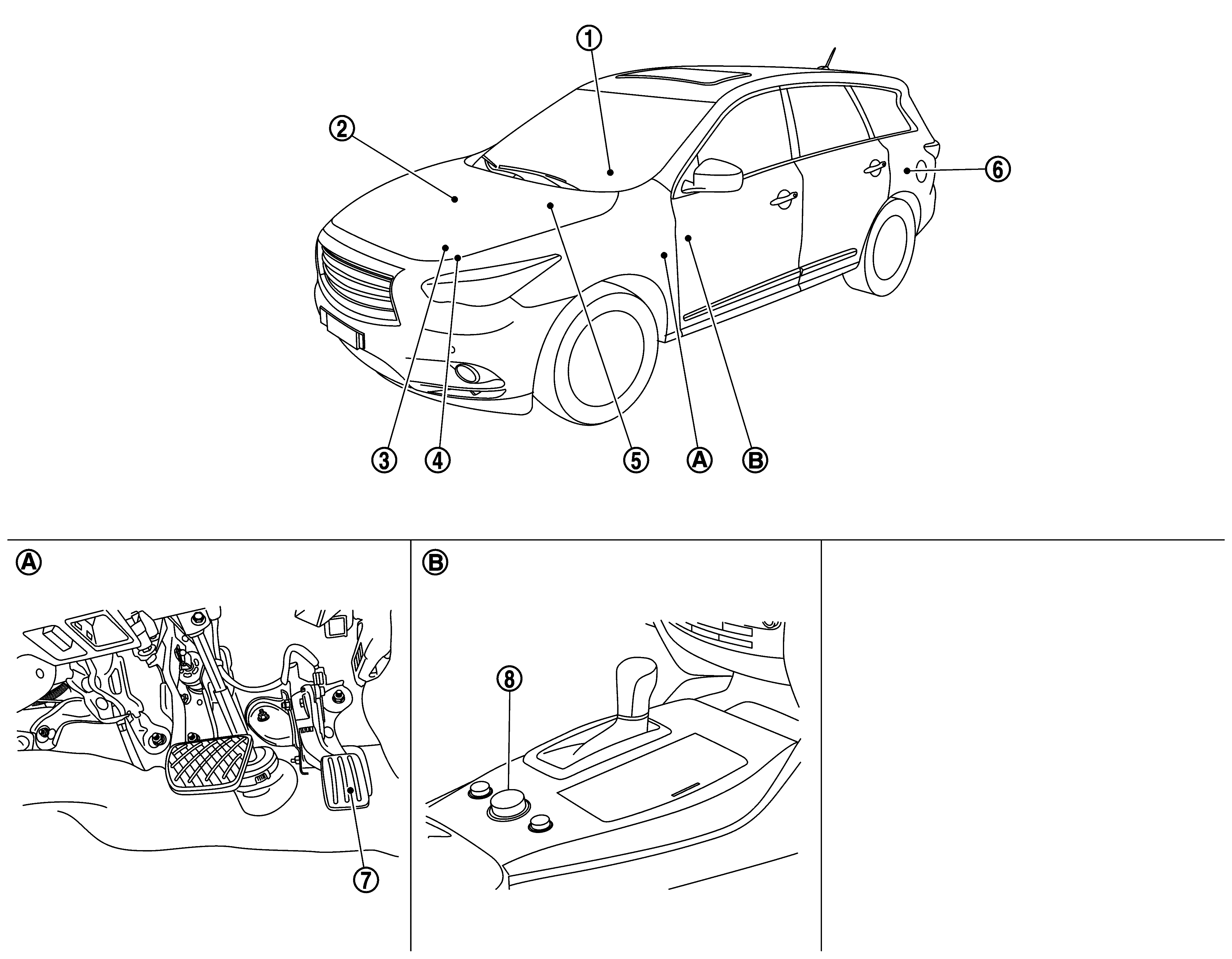

Component Parts Location - Early Production

Courtesy of NISSAN NORTH AMERICA, INC.

Around the pedal

Around the selector lever

No.	Part	Description
1	Combination meter	Displays a mode state on the vehicle information display, based on the mode state received from the A/C auto amp. For details of installation position, refer to Component Parts Location .
2	ABS actuator and electric unit	Activates the ABS actuator, according to an active trace control function control signal received from the ADAS control unit. For details of installation position, refer to Component Parts Location (Type 1) or Component Parts Location (Type 2).
3	TCM	Selects a shift pattern, based on a mode state received from the A/C auto amp. Transmits a mode state received from the A/C auto amp. to ECM. For details of installation position, refer to Component Parts Location (RE0F10J).
4	ECM	Receives a mode signal from TCM and controls throttle angle characteristics. For details of installation position, refer to Component Parts Location (VQ35DD) .
5	A/C auto amp.	Receives an ON/OFF state of each mode from the drive mode select switch and transmits the switch signal to TCM, combination meter and ADAS control unit via CAN communications. For details of installation position, refer to Component Parts Location .
6	ADAS control unit	Controls the active trace control function, based on a mode state received from the A/C auto amp. Controls accelerator pedal reaction force of the accelerator pedal actuator, based on a ECO pedal reaction force control signal received from ECM. For details of installation position, refer to Component Parts Location .
7	Accelerator pedal actuator	Applies reaction force to the accelerator pedal, based on an accelerator pedal reaction force control signal received from the ADAS control unit.
8	Drive mode select switch	Outputs an ON/OFF state of STANDARD, SPORT, ECO, or SNOW mode to the A/C auto amp.
