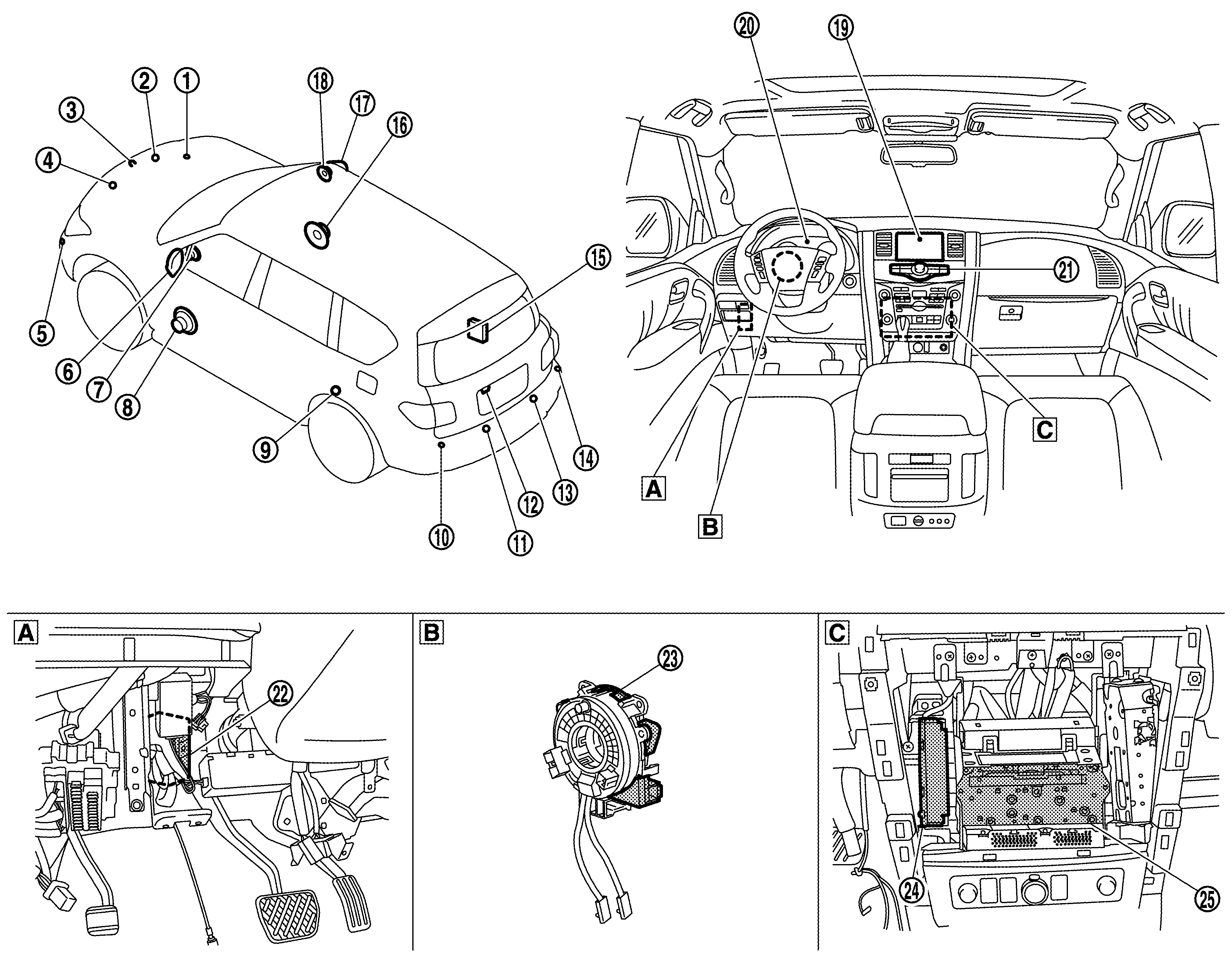

Components Location
WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Corner sensor front RH |
2. |
Center sensor front RH |
3. |
Front camera |
|
4. |
Center sensor front LH |
5. |
Corner sensor front LH |
6. |
Side camera LH |
|
7. |
Front door tweeter LH |
8. |
Front door speaker LH |
9. |
ADAS control unit |
|
10. |
Corner sensor rear LH |
11. |
Center sensor rear LH |
12. |
Rear camera |
|
13. |
Center sensor rear RH |
14. |
Corner sensor rear RH |
15. |
BOSE amp. |
|
16. |
Front door speaker RH |
17. |
Side camera RH |
18. |
Front door tweeter RH |
|
19. |
Display control unit |
20. |
Combination meter |
21. |
Multifunction switch |
|
22. |
Sonar control unit |
23. |
Steering angle sensor |
24. |
Around view monitor control unit |
|
25. |
AV control unit |
||||
|
A. |
Instrument lower panel LH removed condition |
B. |
Spiral cable part |
C. |
Cluster lid C removed condition |
