Components Location

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

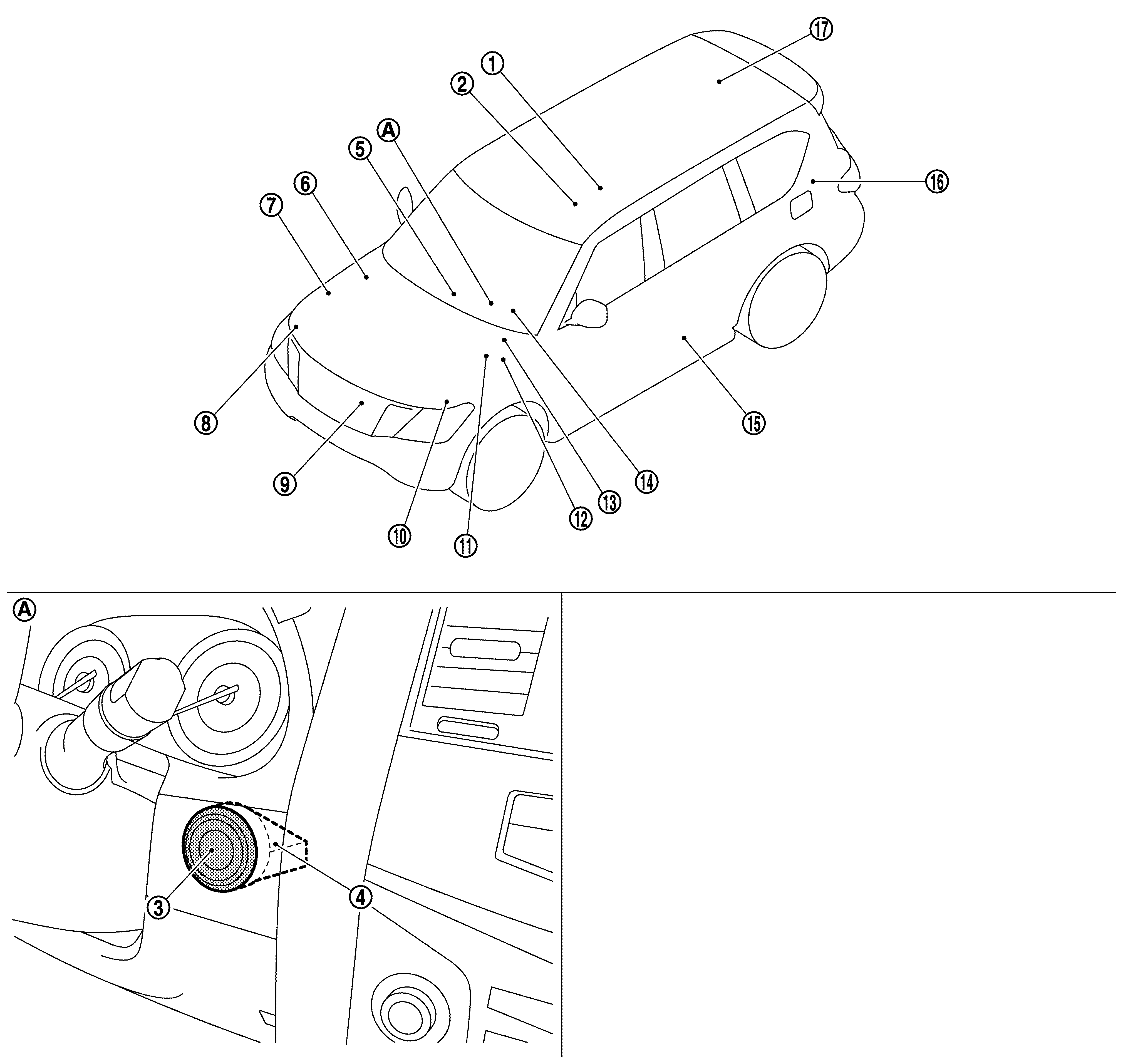

1.	Inside key antenna (console) Refer to Component Parts Location .	2.	A/T assembly Refer to Components Location .	3.	Push-button ignition switch
4.	NATS antenna amp.	5.	Inside key antenna (instrument center) Refer to Component Parts Location .	6.	IPDM E/R Refer to Components Location .
7.	ECM Refer to Components Location .	8.	Hood switch 1	9.	Horn
10.	Hood switch 2	11.	ABS actuator and electric unit (control unit) Refer to Components Location .	12.	Stop lamp switch Refer to Components Location .
13.	BCM Refer to Components Location .	14.	Combination meter Refer to Components Location .	15.	Front door switch (driver side) Refer to Component Parts Location .
16	Remote keyless entry receiver Refer to Component Parts Location .	17.	Inside key antenna (luggage room) Refer to Component Parts Location .
A.	Behind push-button ignition switch
