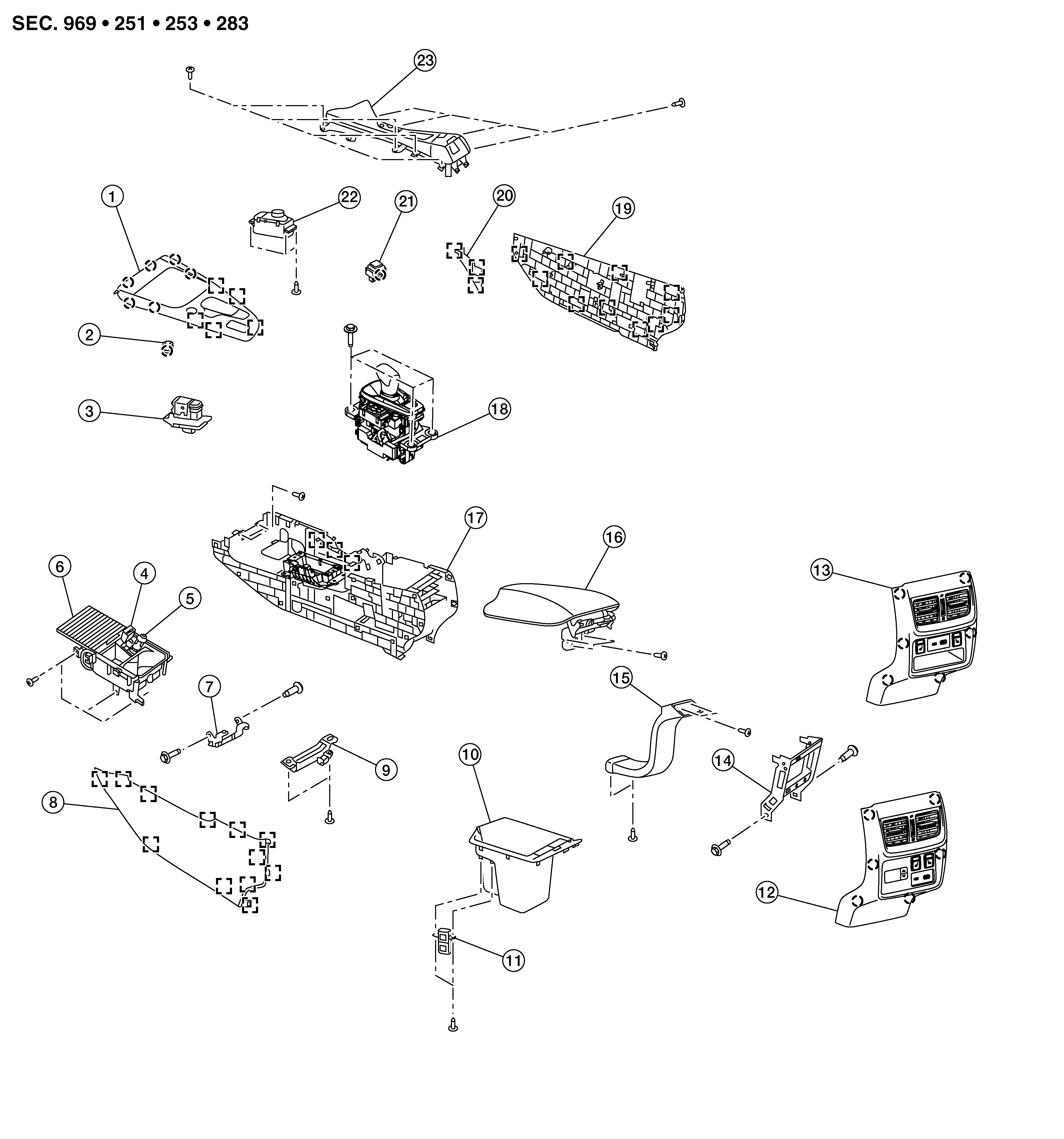

Exploded View
|
1. |
Shift selector finisher |
2. |
Push button ignition switch |
3. |
Electric parking brake switch |
|
4. |
Front Auxiliary Input jacks |
5. |
Front power socket |
6. |
Center console cup holder |
|
7. |
Center console brace |
8. |
Center console finisher (LH) |
9. |
Inside key antenna (center console) |
|
10. |
Center console bin |
11. |
Front USB charge port |
12. |
Center console rear finisher (with rear air control) |
|
13. |
Center console rear finisher (without rear air control) |
14. |
Center console rear brace |
15. |
Rear center ventilator duct |
|
16. |
Center console lid |
17. |
Center console |
18. |
Electric shift selector |
|
19. |
Center console finisher (RH) |
20. |
Center console finisher (upper RH) |
21. |
Drive mode switch |
|
22. |
Multifunction switch |
23. |
Center console finisher (upper) |
|
Metal clip |
|
|
Pawl |
