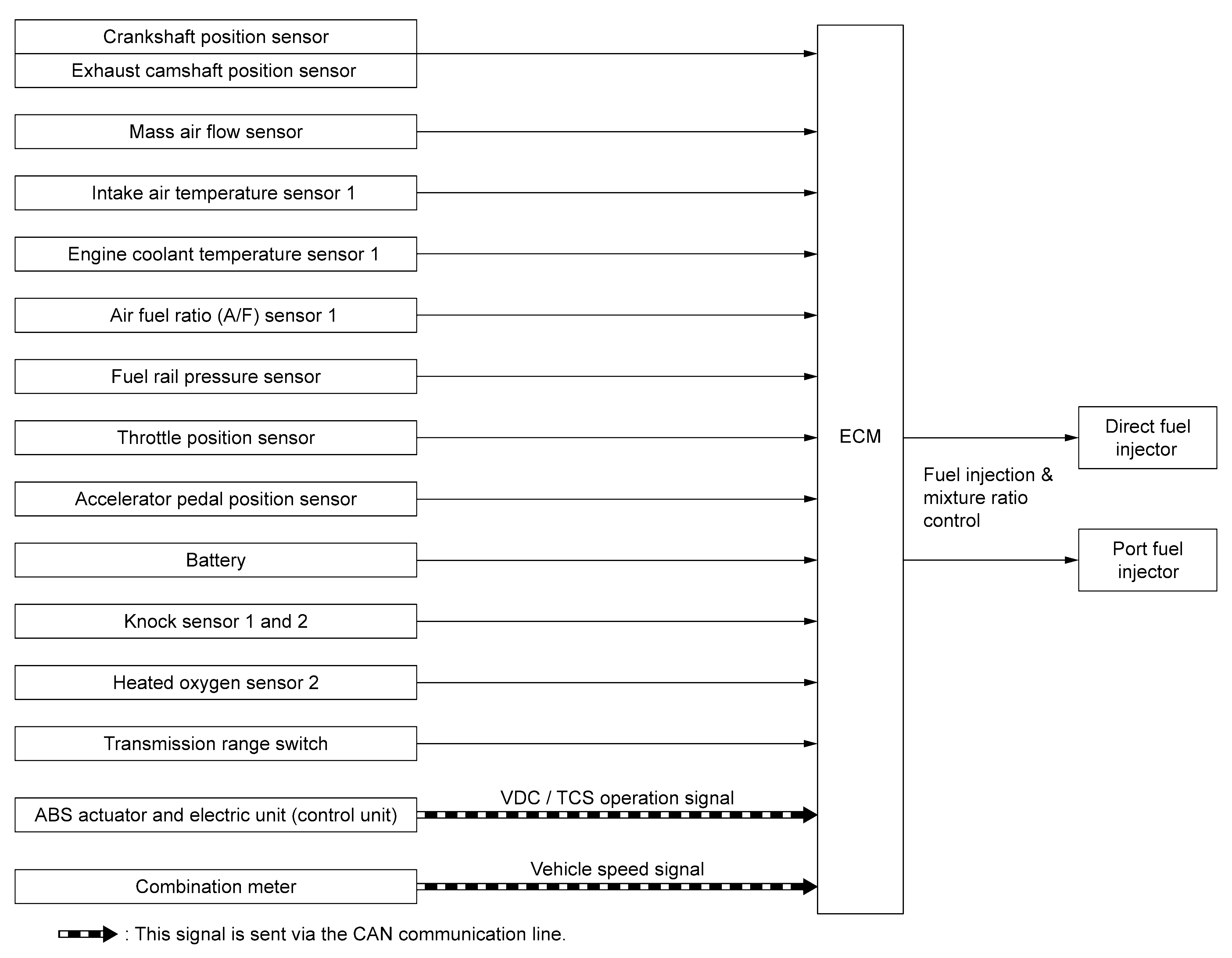

Home >> Infiniti >> 2022 >> QX50 Essential, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (1 Of 3) >> System Description >> System >> Direct And Port Fuel Injection System >> System Description >> System Diagram
