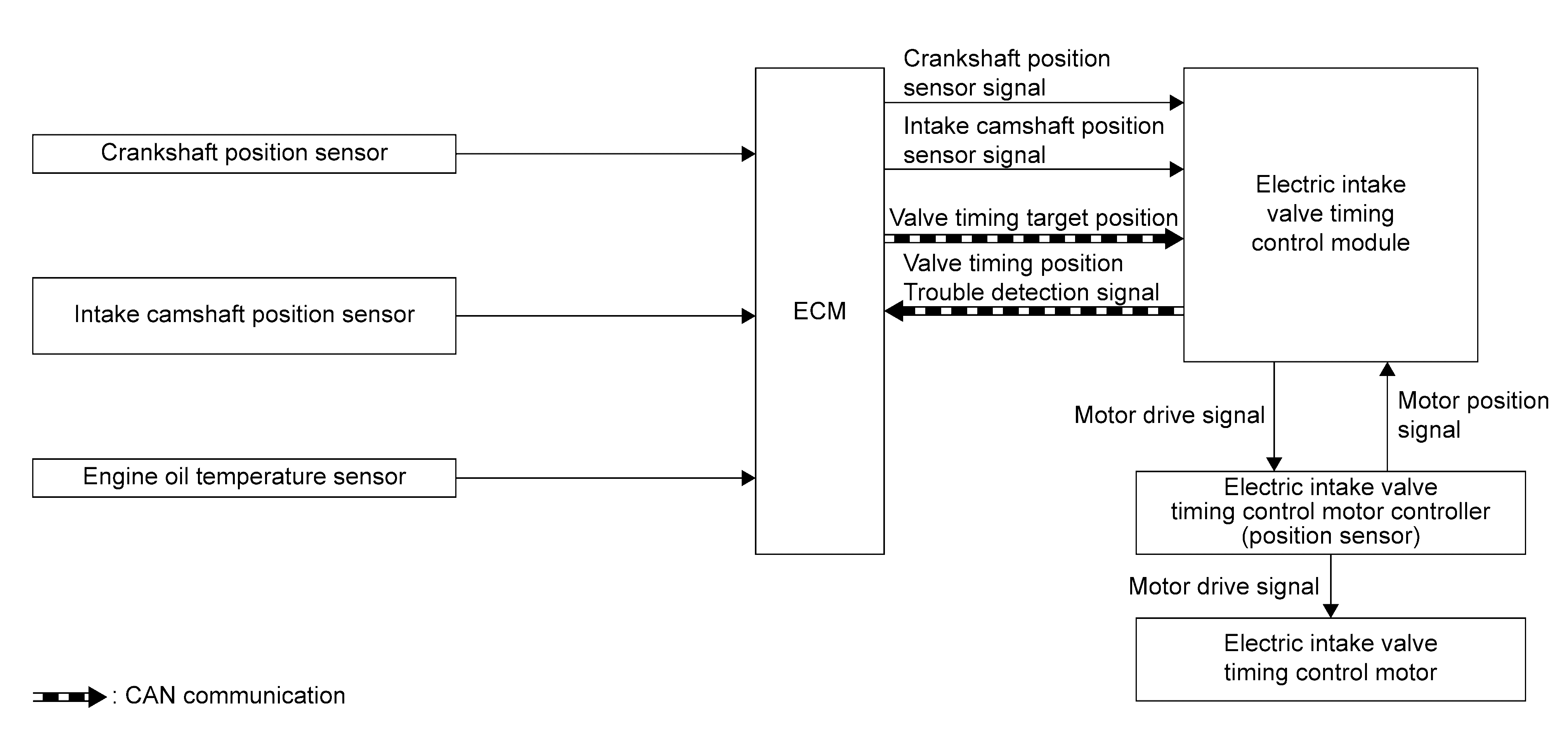

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Component parts	Function
Crankshaft position sensor	Crankshaft Position Sensor
Intake camshaft position sensor	Intake Camshaft Position Sensor
Engine oil temperature sensor	Engine Oil Temperature Sensor
ECM	ECM
Electric intake valve timing control module	Electric Intake Valve Timing Control Module
Electric intake valve timing control actuator	Electric Intake Valve Timing Control Actuator
Electric intake valve timing control motor*	Electric Intake Valve Timing Control Actuator

*: Electric intake valve timing control motor is built in to the cam sprocket (INT).
