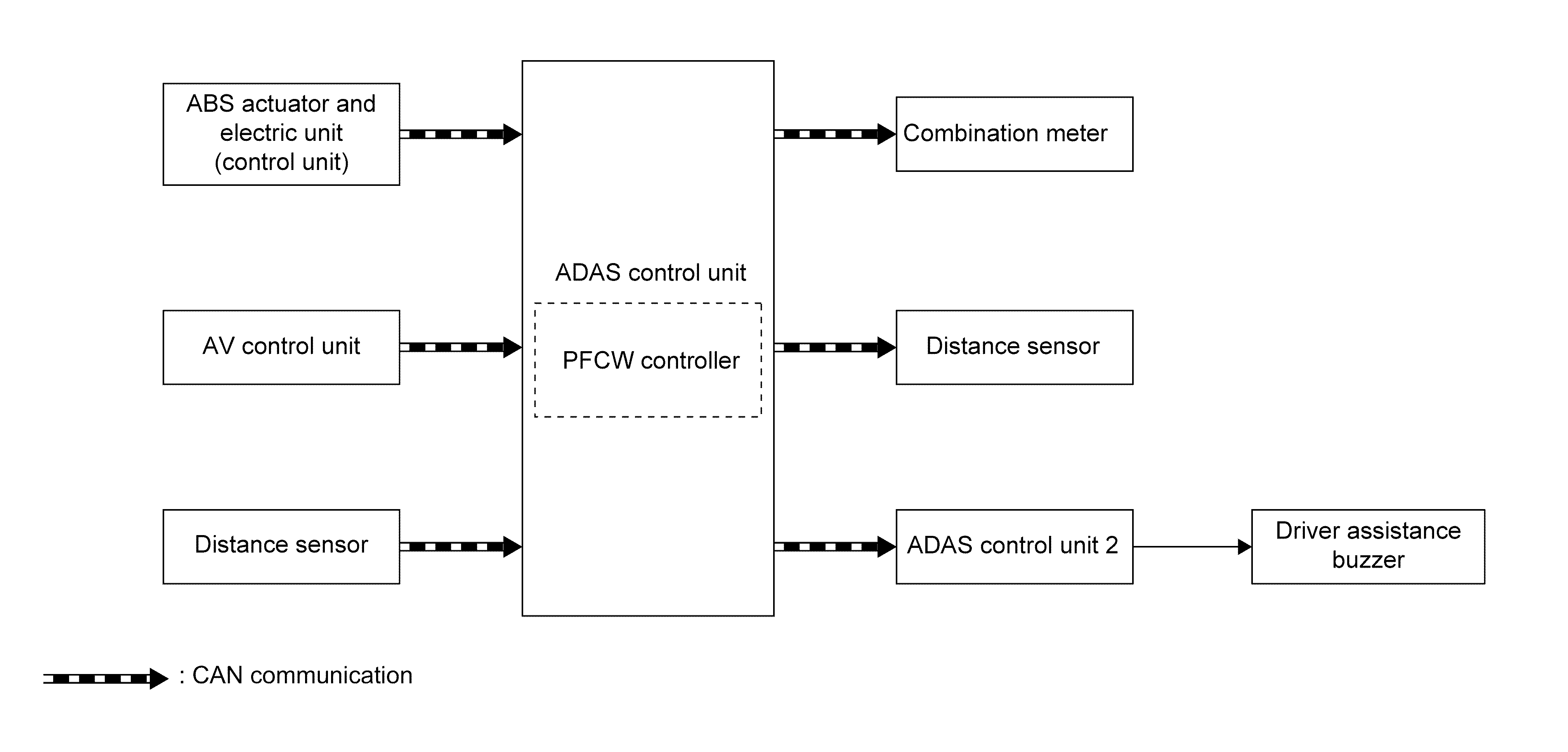

System Diagram

GNSILL0337557Courtesy of NISSAN NORTH AMERICA, INC.

Component

Description

ADAS control unit

Component Description

ADAS control unit 2

Component Description

ABS Actuator and Electric Unit (Control Unit)

Component Description

Combination meter

Component Description

AV control unit

Component Description

Distance sensor

Component Description

Driver assistance buzzer

Component Description
