Removal and Installation: Removal

  1. Remove the rear door finisher. Refer to Removal and Installation .
  2. Using suitable tool, release pawls and remove rear power window switch (1).

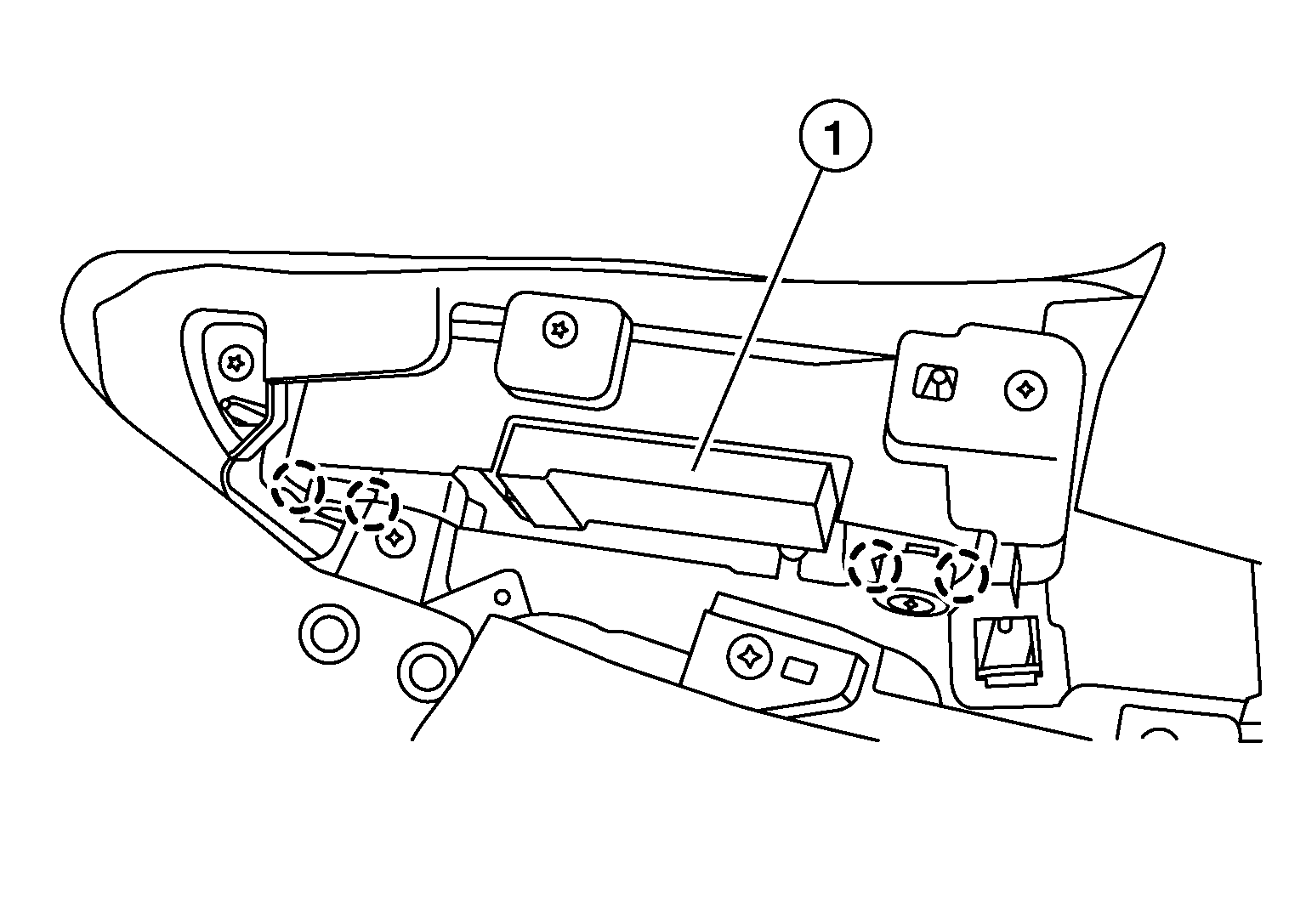

    GNSALKIA0200Z-200Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: LH shown, RH similar.

    SYMBOL

    : Pawl
