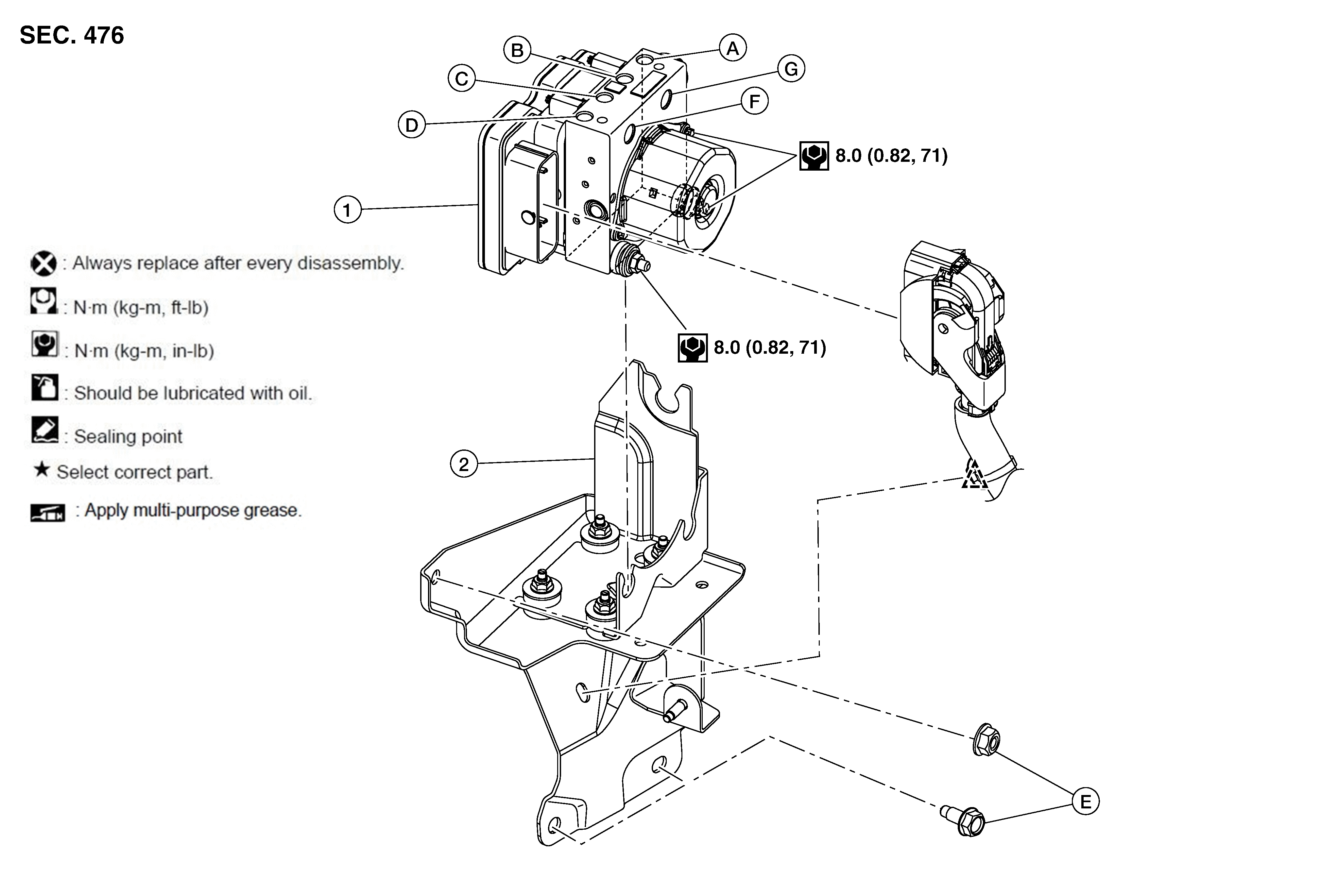

Exploded View
|
1. |
ABS actuator and electric unit (control unit) |
2. |
Actuator bracket |
A. |
To rear caliper (LH). Refer to Exploded View . |
|
B. |
To front caliper (RH). Refer to Exploded View . |
C. |
To front caliper (LH). Refer to Exploded View . |
D. |
To rear caliper (RH). Refer to Exploded View . |
|
E. |
Refer to Removal and Installation . |
F. |
To master cylinder secondary side. Refer to Exploded View . |
G. |
To master cylinder primary side. Refer to Exploded View . |
|
|
Clip |
