Exploded View

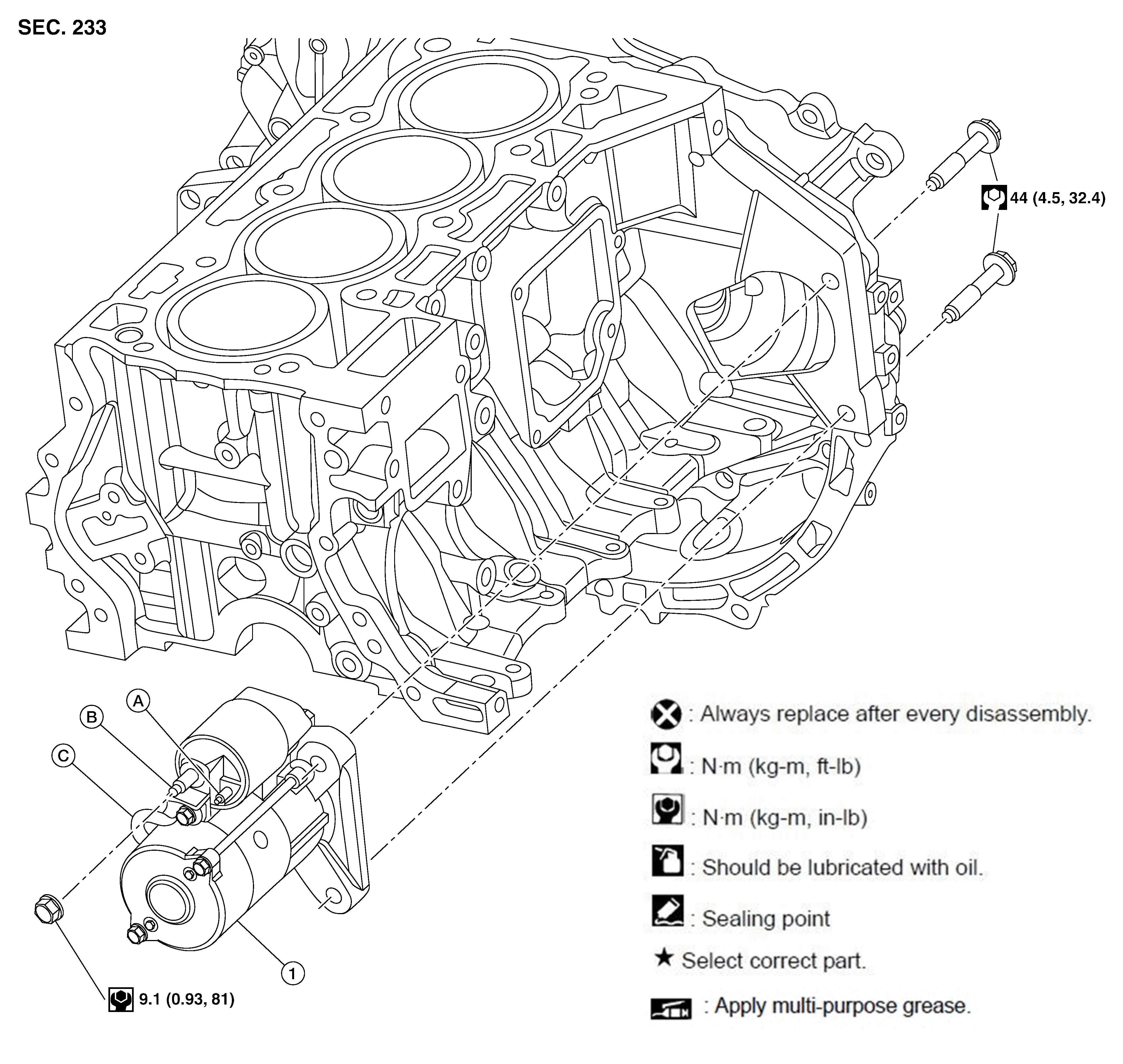

Fig 1: Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Starter assembly	A.	"S" Connector	B.	"B" Terminal
C.	Ground harness
