Exploded View

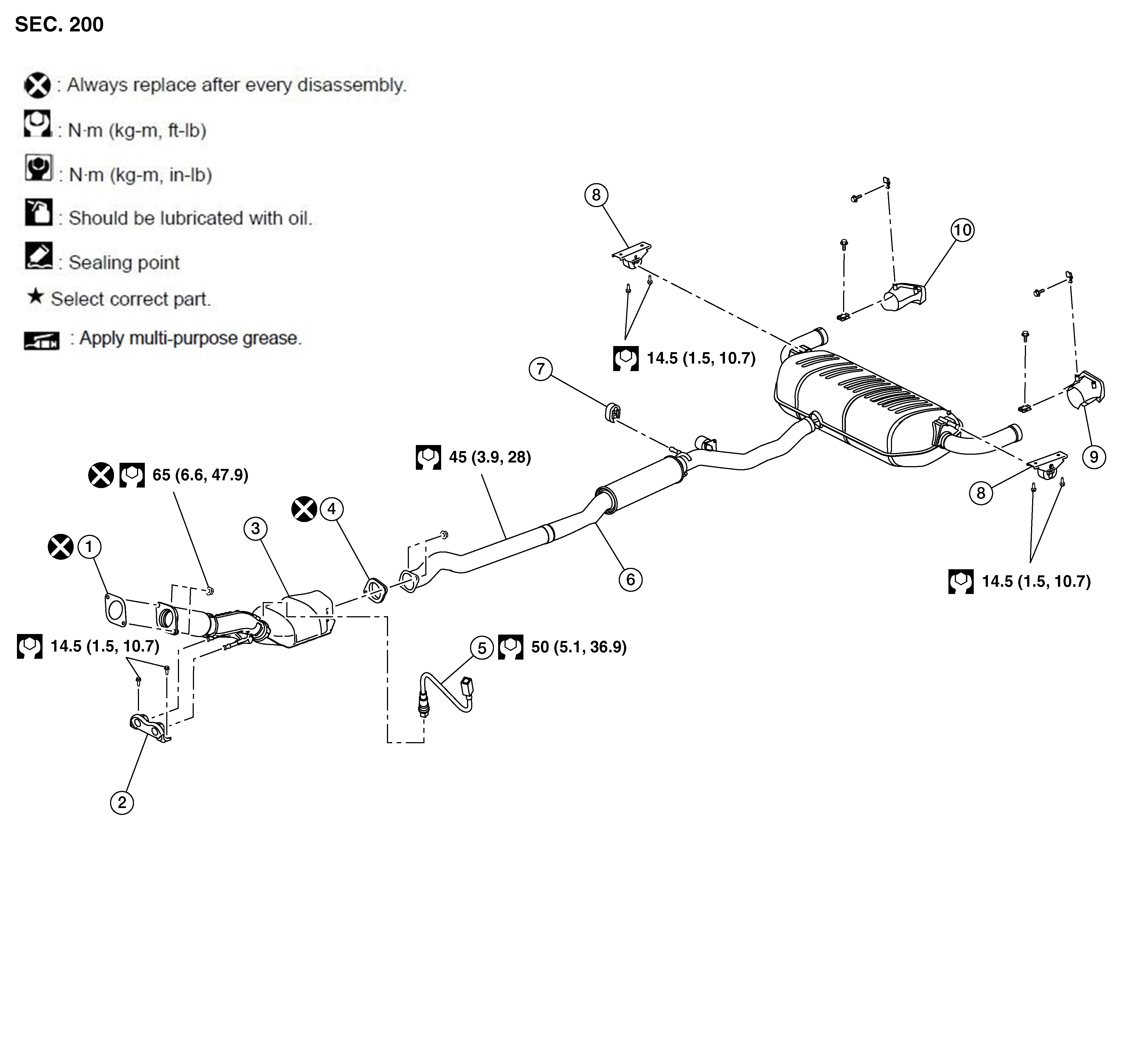

Fig 1: Exhaust System With Torque Specifications

GNSAWBIA0529Z-529

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Exhaust gasket	2.	Mounting rubber	3.	Front exhaust tube assembly
4.	Exhaust gasket	5.	Oxygen sensor	6.	Main muffler assembly
7.	Mounting rubber	8.	Mounting rubber	9.	Exhaust diffuser (LH)
10.	Exhaust diffuser (RH)
