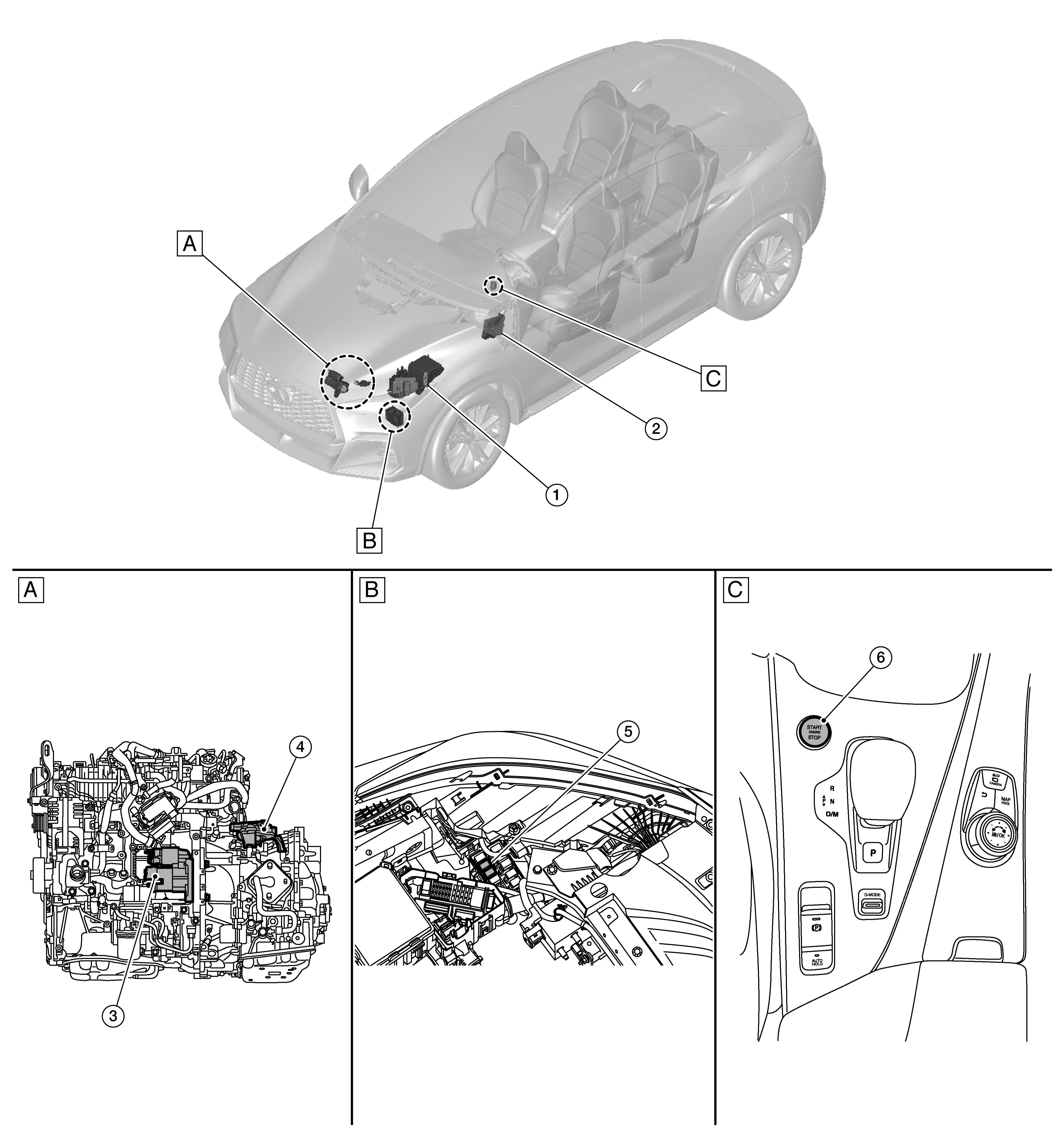

Component Location
|
A. |
View with engine removed |
B. |
Engine room left side |
|
C. |
Center console |
|
No. |
Component |
Function |
|
1. |
(Intelligent Power Distribution Module Engine Room) |
Refer to System Description . |
|
2. |
(Body control module) |
Refer to System Description . |
|
3. |
Starter motor |
Refer to Starter Motor . |
|
4. |
Transmission range switch |
Refer to Transmission Range Switch . |
|
5. |
High pressure fuel pump relay and starter cut relay |
Power is supplied to the starter cut relay with BCM control. |
|
6. |
Push-button ignition switch |
Supplies ignition switch status to the IPDM E/R. |
