Steering Gear Assembly: Notes

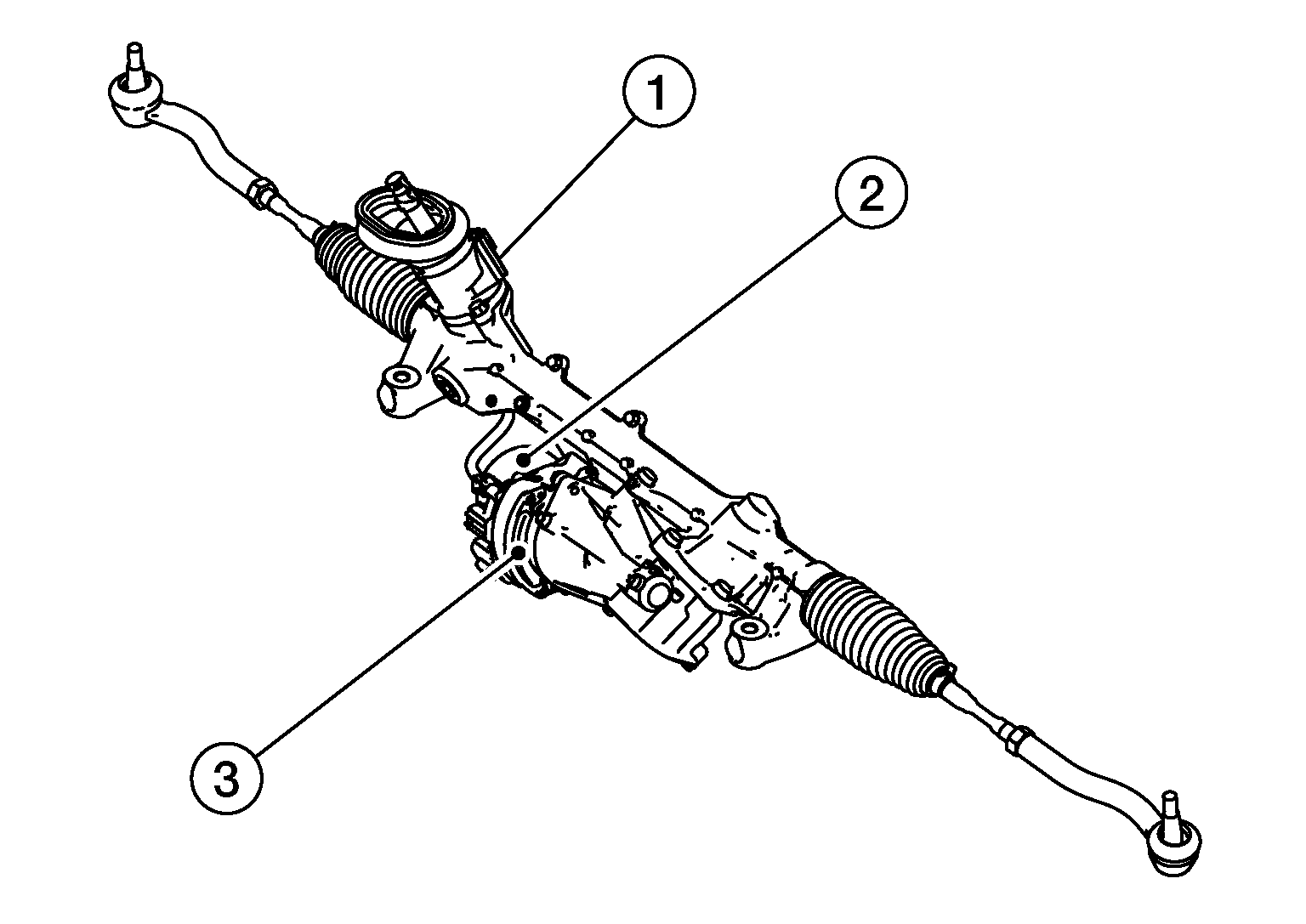

The steering gear assembly is primarily composed of torque sensor (1), EPS motor (2) and EPS control unit (3).

GNSALGIA0206Z-206Courtesy of NISSAN NORTH AMERICA, INC.
