Cooling Fan Operation
ECM transmits a pulse duty (PWM) signal to IPDM E/R.

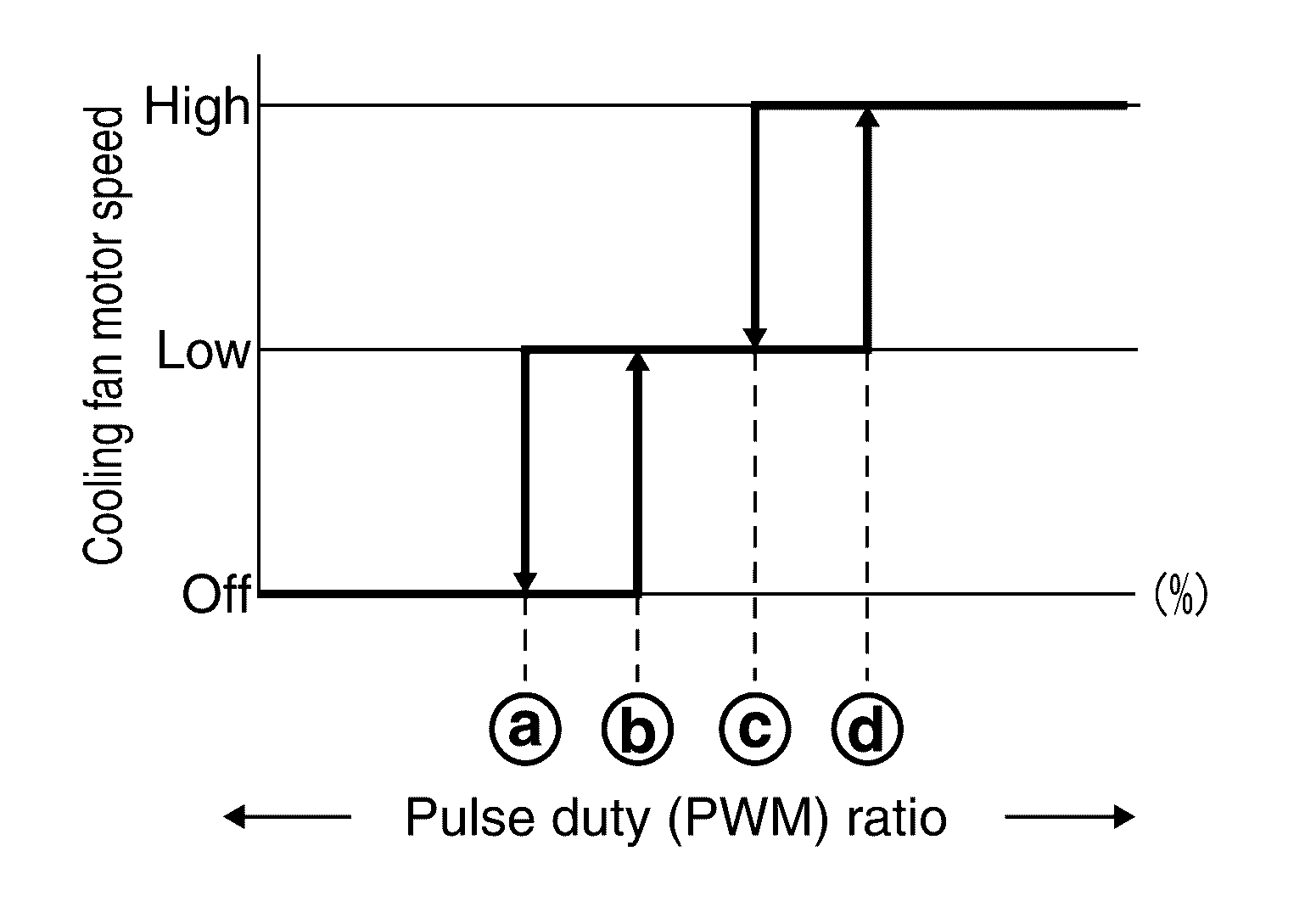

IPDM E/R has threshold value to the pulse duty (PWM) signal and operates cooling fan motor with three phases of [HI (high-speed) /LOW (low-speed) /OFF].
|
|
: Less than 30% (OFF <- low-speed) |
|
|
: More than 40% (OFF -> low-speed) |
|
|
: Less than 50% (low-speed <- high-speed) |
|
|
: More than 60% (low-speed -> high-speed) |
