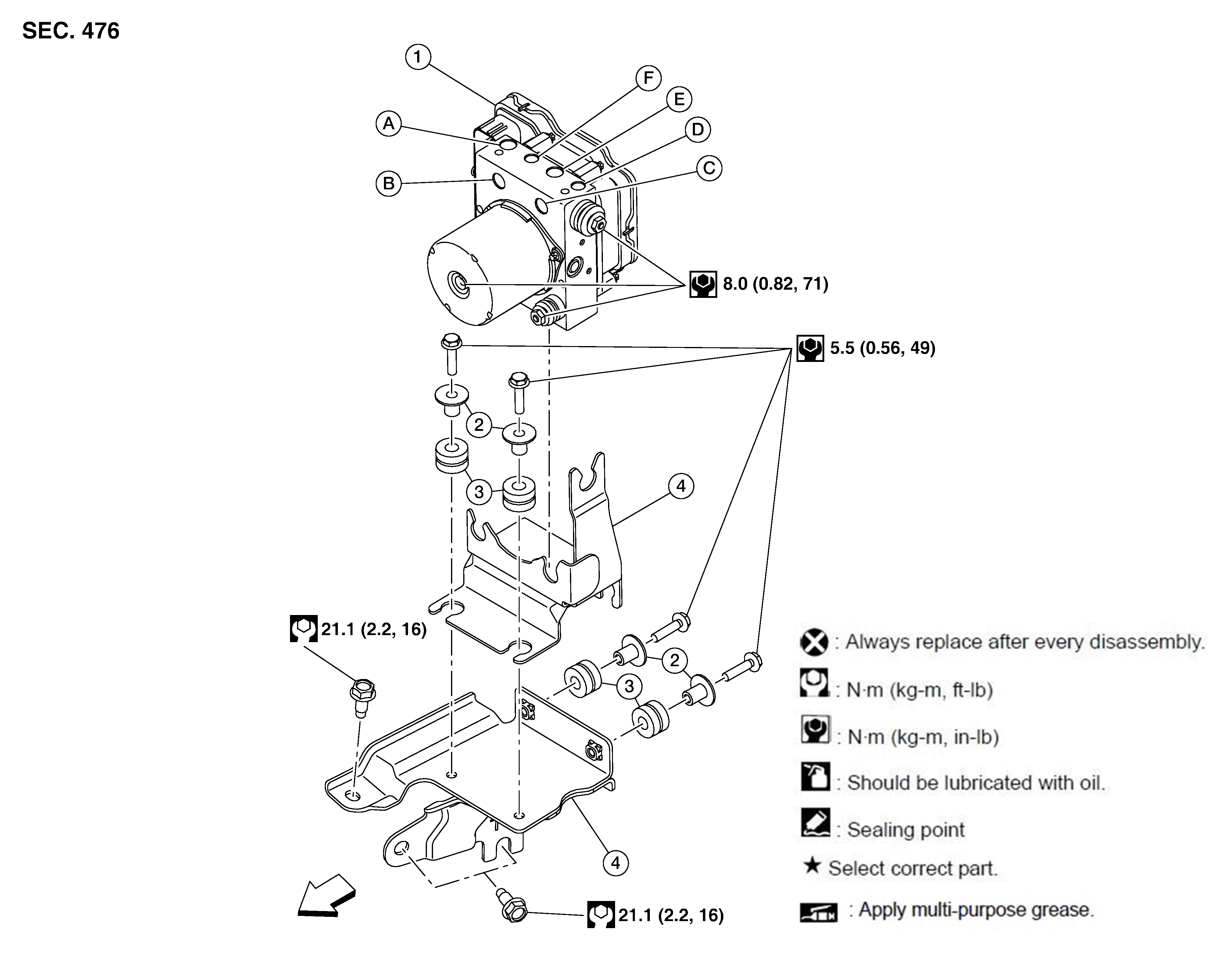

Exploded View
|
1. |
ABS actuator and electric unit (control unit) |
2. |
Insulator collar |
3. |
Rubber bushing |
|
4. |
Bracket |
A. |
To rear RH brake caliper. Refer to Exploded View . |
B. |
From master cylinder secondary side. Refer to Exploded View . |
|
C. |
From master cylinder primary side. Refer to Exploded View . |
D. |
To rear LH brake caliper. Refer to Exploded View . |
E. |
To front RH brake caliper. Refer to Exploded View . |
|
F. |
To front LH brake caliper. Refer to Exploded View . |
|
Front |
