Exploded View

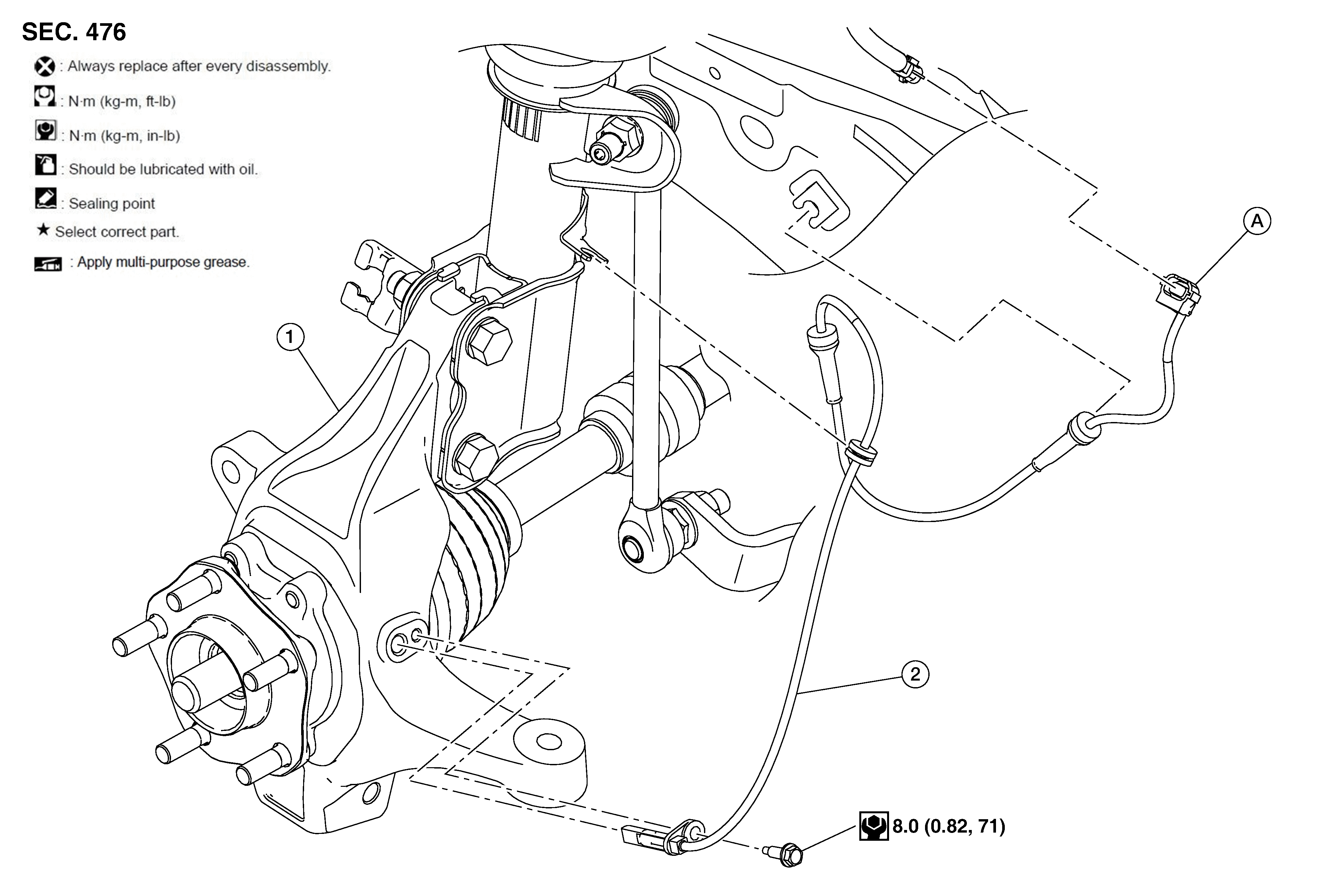

Fig 1: Front Wheel Sensor With Torque Specifications
GNSDB17833Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering knuckle

2.

Front wheel sensor

A.

Harness connector
