Component Location

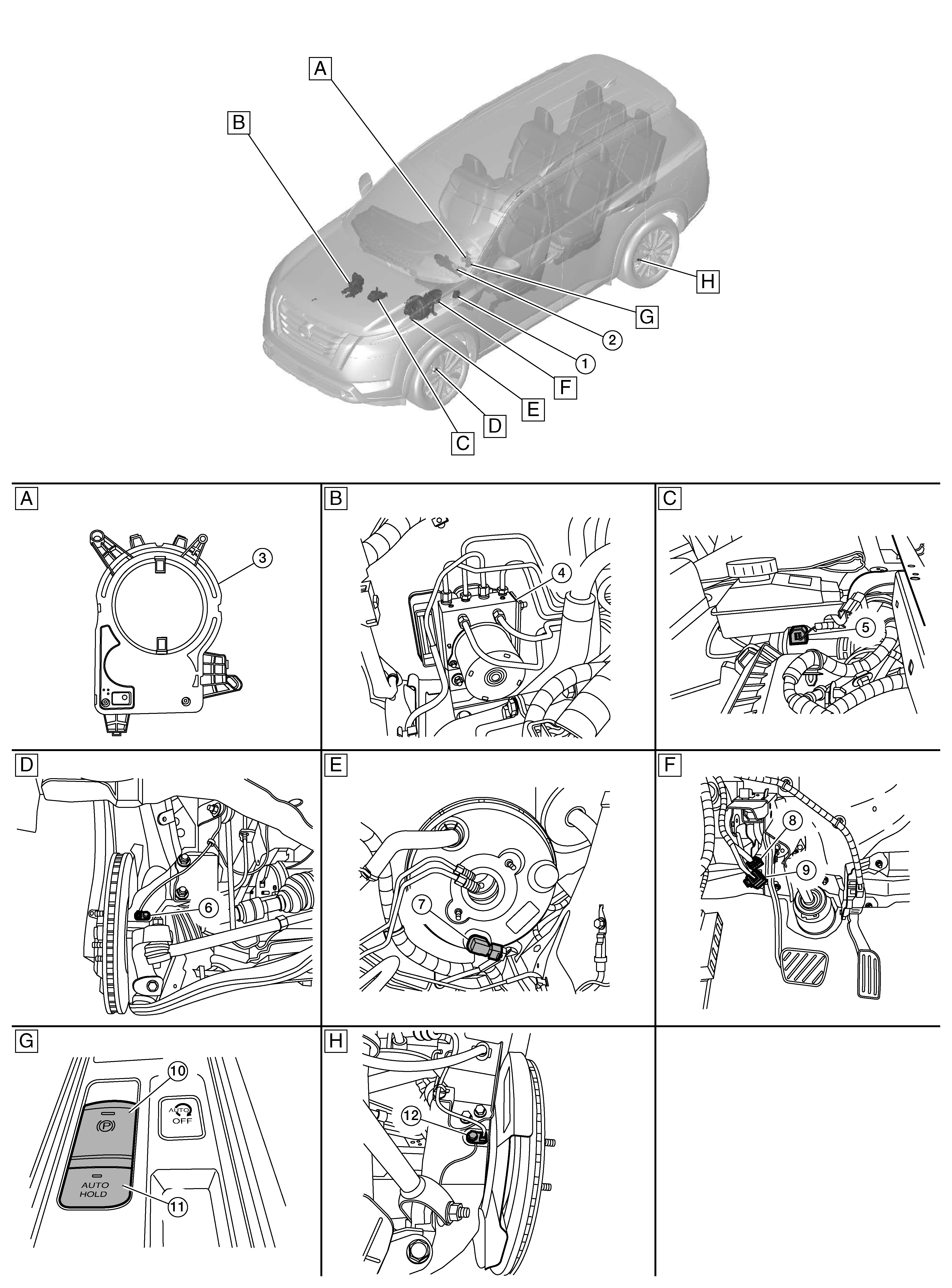

GNSDB18110Courtesy of NISSAN NORTH AMERICA, INC.

A.

Steering column area

B.

Engine room (RH)

C.

Engine room (LH)

D.

Front left wheel

E.

Engine room (LH)

F.

Brake pedal area

G.

Center console area

H.

Rear left wheel

No.

Component

Function

1.

Chassis control module

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:

  • Drive MODE signal
  • Active Trace Control signal
  • Brake hold status signal
  • Brake hold request signal

Refer to Component Location for detailed component location.

2.

Combination meter

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:

  • Brake fluid level switch signal
  • Electric parking brake switch signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:

  • ABS warning lamp signal
  • Brake warning lamp signal
  • VDC OFF indicator lamp signal
  • VDC warning lamp signal

Refer to Component Location (Full TFT Meter) or Component Location (7 Inch Information Display) for detailed component location.

3.

Steering angle sensor
  • Steering angle sensor transmits the steering angle sensor malfunction signal to ADAS control unit, AWD control unit, Chassis control unit ABS actuator and electric unit (control unit) and AV control unit via CAN communication
  • Refer to Steering Angle Sensor .

4.

ABS (Anti-lock Braking System) actuator and electric unit (control unit)

Refer to ABS Actuator and Electric Unit (Control Unit) .

5.

Brake fluid level switch

Refer to Brake Fluid Level Switch .

6.

Front wheel sensor LH (RH similar)

Refer to Wheel Sensor and Sensor Rotor .

7.

Vacuum sensor

Refer to Vacuum Sensor .

8.

Brake pedal position switch

Refer to Component Location for detailed component location.

9.

Stop lamp switch

Refer to Component Location for detailed component location.

10.

Parking brake switch

Refer to Component Location for detailed component location.

11.

Automatic brake hold switch

12.

Rear wheel sensor LH (RH similar)

Refer to Wheel Sensor and Sensor Rotor .
