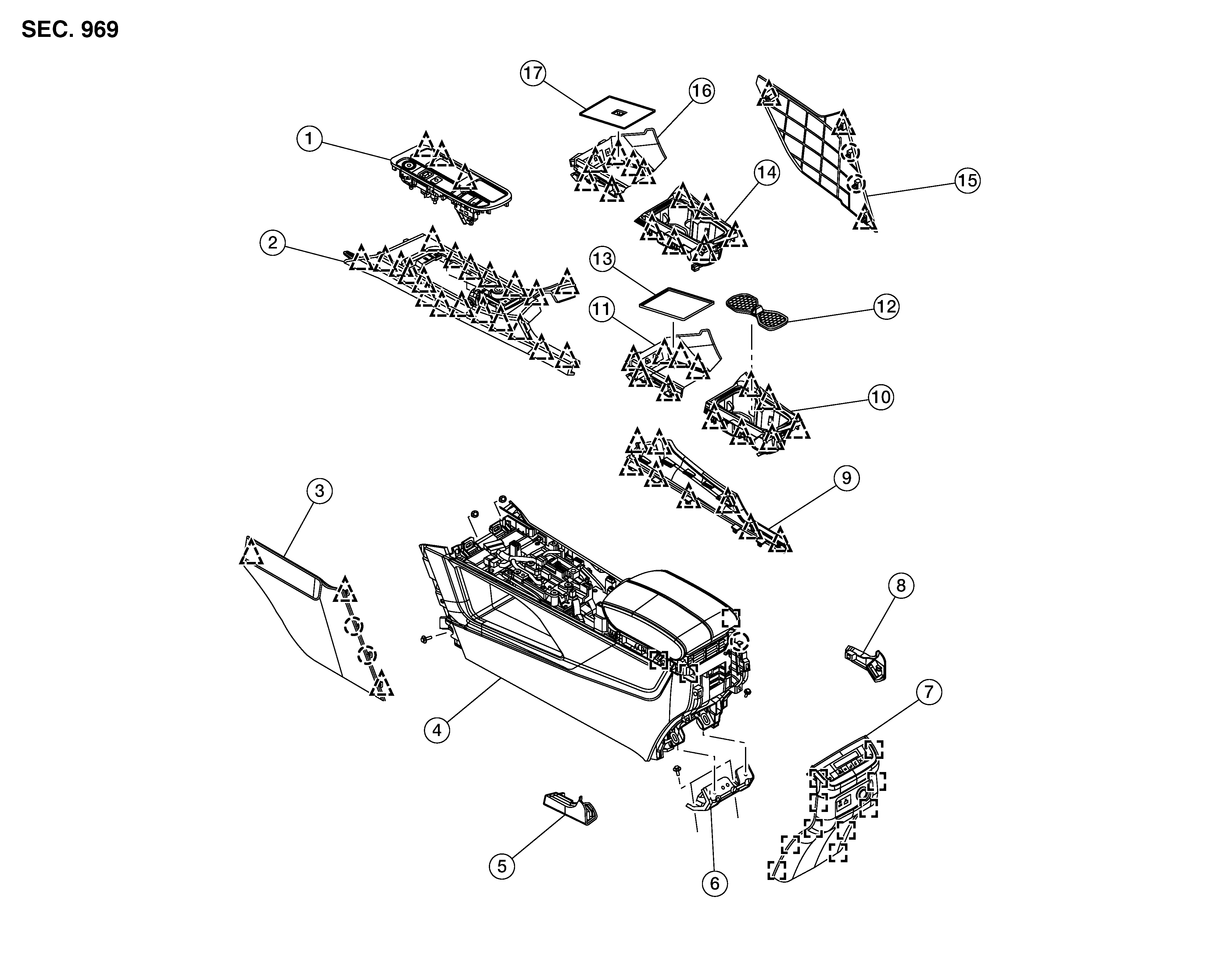

Exploded View
|
1. |
Shift selector finisher |
2. |
Console finisher assembly |
3. |
Front center console finisher (LH) |
|
4. |
Center console assembly |
5. |
Console cover (LH) |
6. |
Console bracket |
|
7. |
Center console rear finisher |
8. |
Console cover (RH) |
9. |
Console panel (RH) |
|
10. |
Cupholder assembly |
11. |
Front console pocket (without wireless charger unit) |
12. |
Cupholder mat |
|
13. |
Front tray mat |
14. |
Cupholder assembly |
15. |
Front center console finisher (RH) |
|
16. |
Front console pocket (with wireless charger unit) |
17. |
Wireless charger unit |
|
Metal clip |
|
|
Clip |
|
Pawl |
