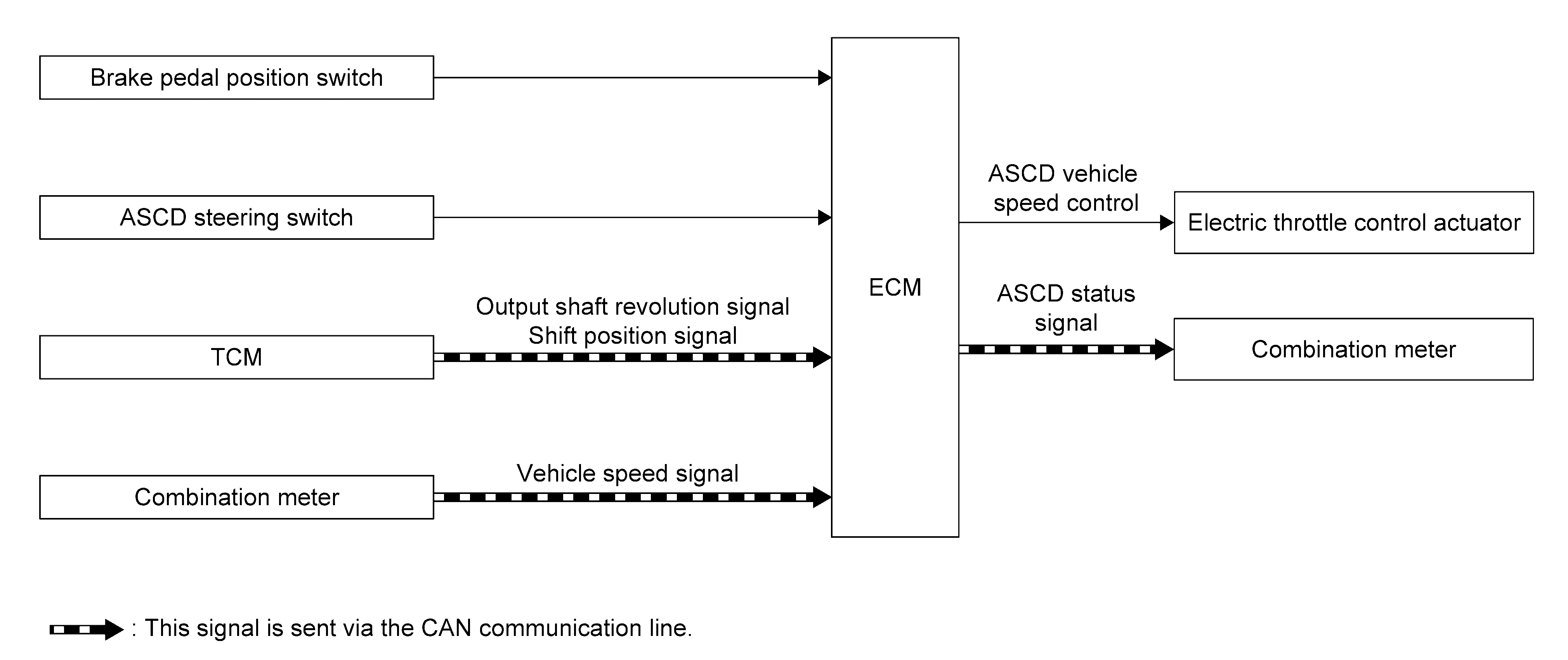

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Component parts	Function
Brake pedal position switch	Stop Lamp Switch Brake Pedal Position Switch
ASCD steering switch	ASCD Steering Switch
TCM	ECM receives the following signals via CAN communication. Output shaft revolution signal Shift position signal
Combination meter	ECM receives the vehicle speed signal via CAN communication. ECM transmits ASCD status signal via CAN communication.
ECM	ECM (With Barometric Pressure Sensor)
Electric throttle control actuator	Electric Throttle Control Actuator
