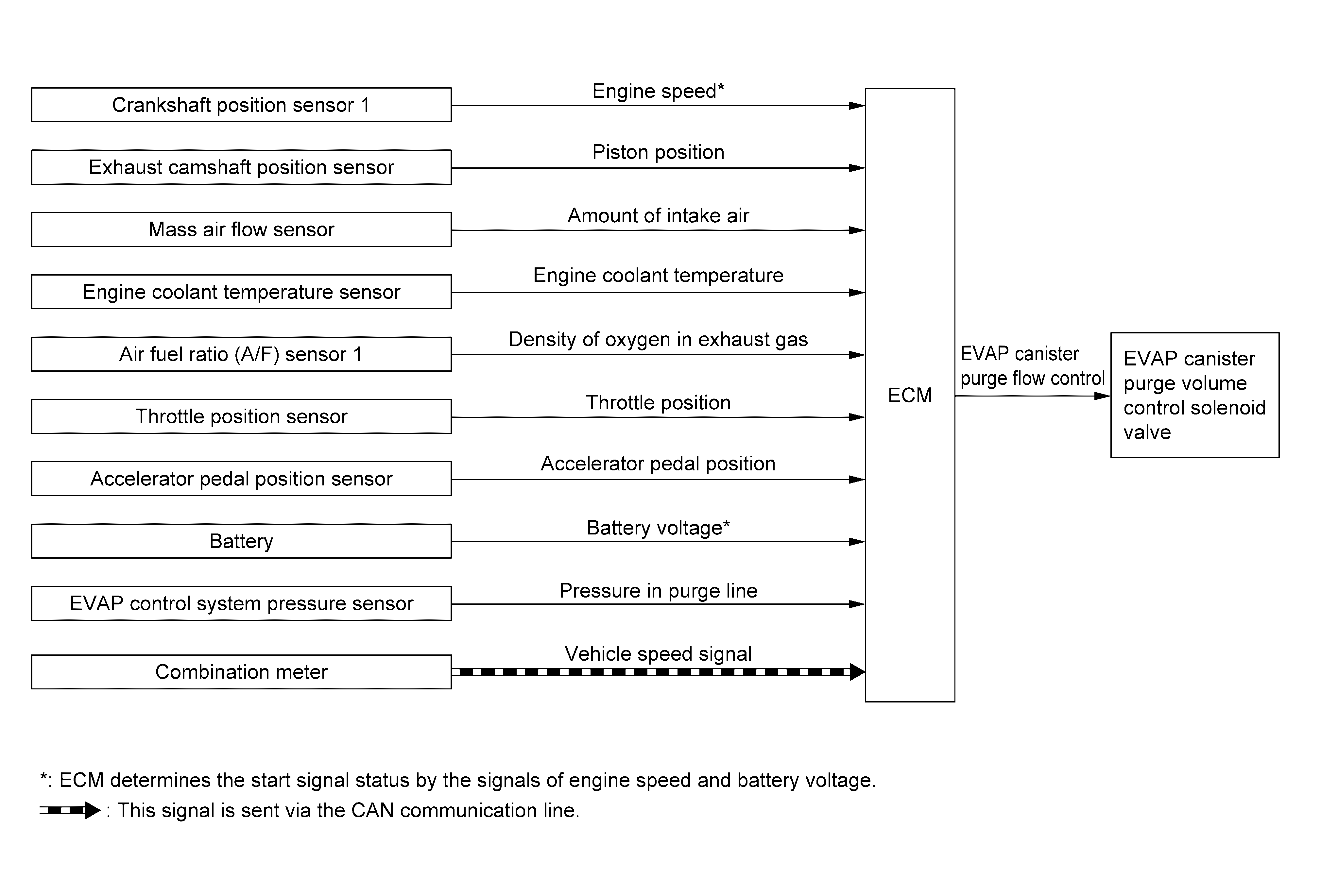

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor 1 |
|
|
Exhaust camshaft position sensor |
|
|
Mass air flow sensor (With intake air temperature sensor) |
|
|
Engine coolant temperature sensor |
|
|
Air fuel ratio (A/F) sensor 1 |
|
|
Throttle position sensor |
|
|
Accelerator pedal position sensor |
|
|
Battery |
ECM receives the battery voltage signal. |
|
EVAP control system pressure sensor |
|
|
Combination meter |
ECM receives the vehicle speed signal via CAN communication. |
|
ECM |
|
|
EVAP canister purge volume control solenoid valve |
