Direct Connect

The following SRS components use direct-connect style harness connectors:

Courtesy of NISSAN NORTH AMERICA, INC.

• Driver air bag module

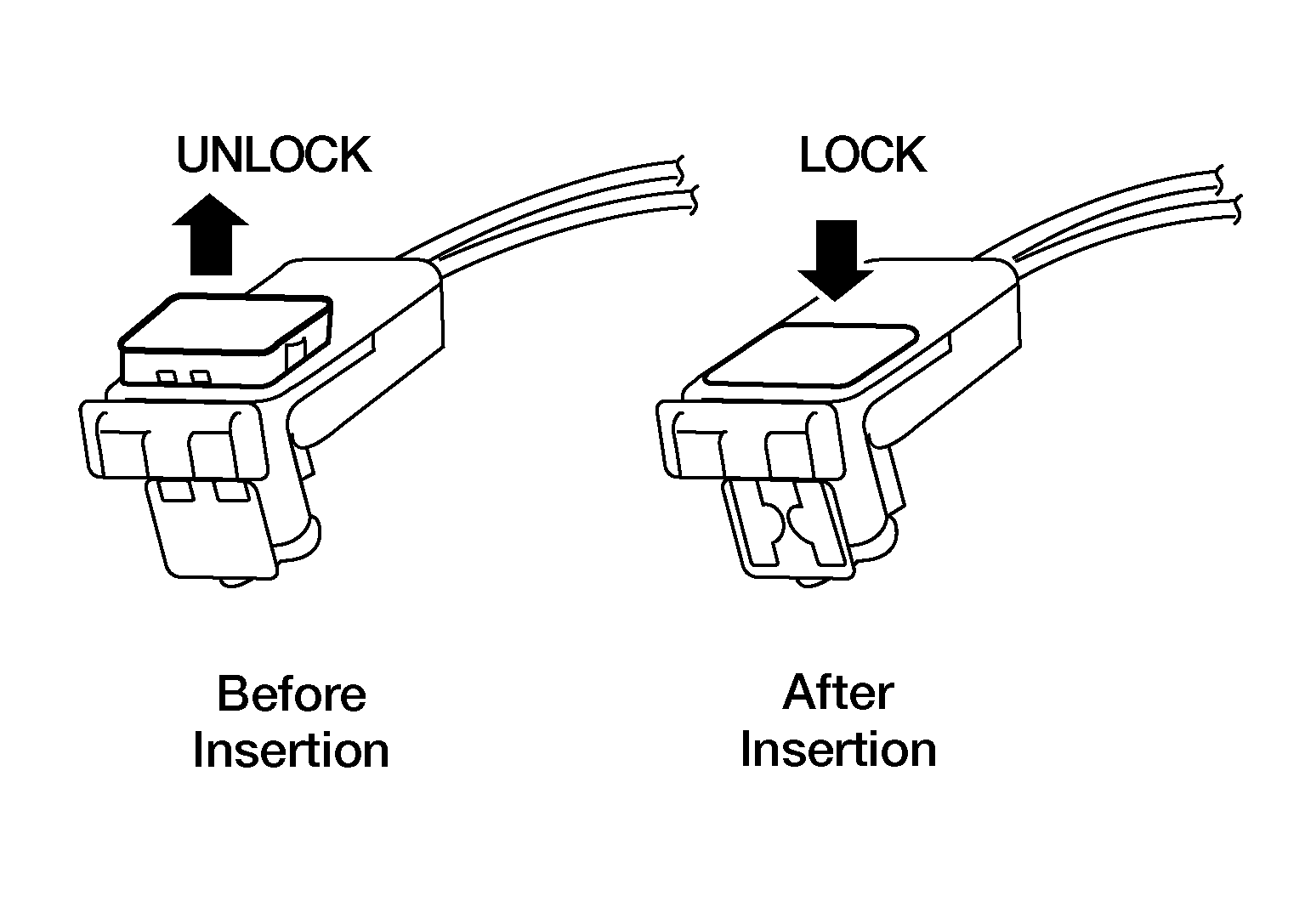

Always pull up to release locking tab prior to removing connector from SRS component.

Always push down to lock locking tab after installing connector to SRS component. When locked, the locking tab is level with the connector housing.
