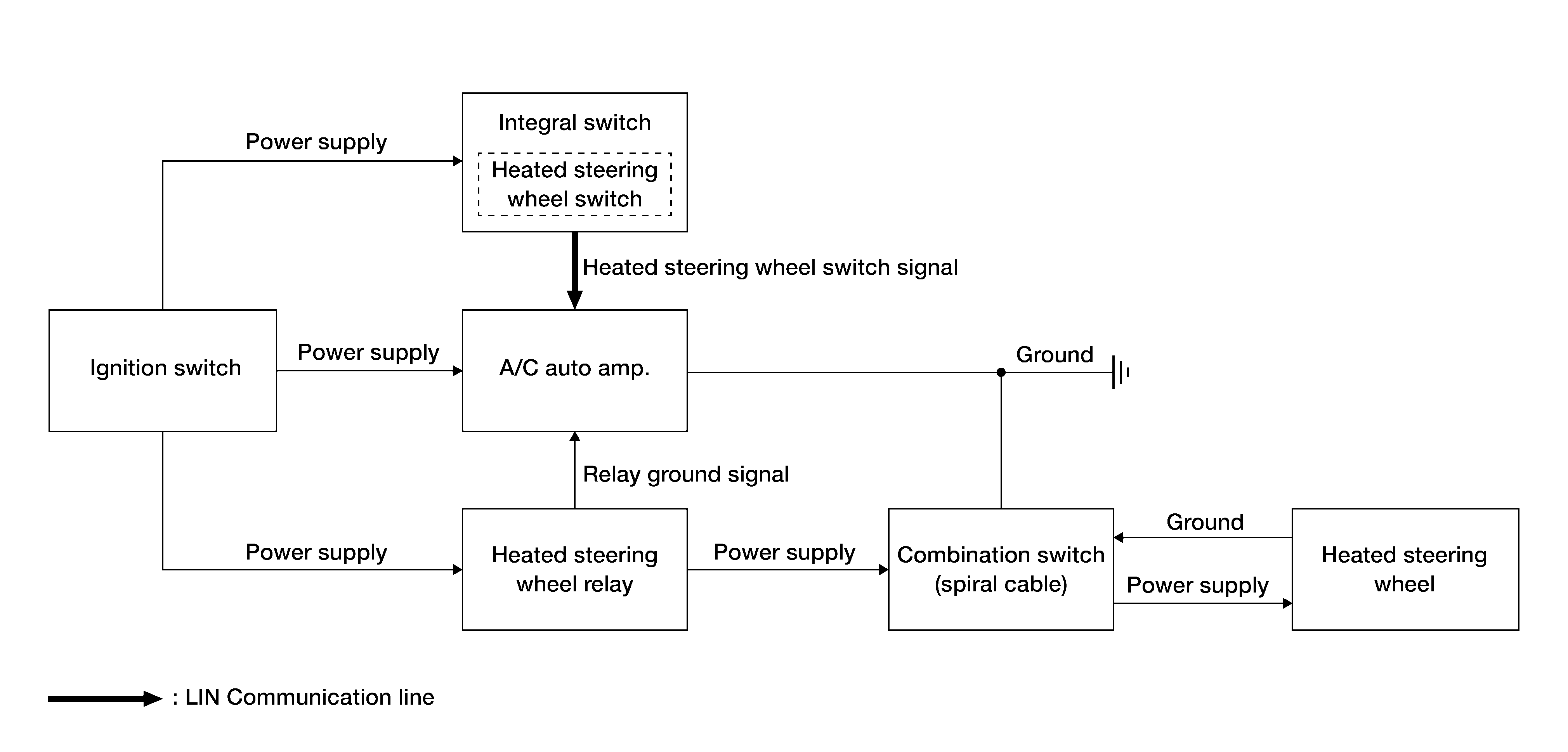

System Diagram

GNSDB18212Courtesy of NISSAN NORTH AMERICA, INC.
A/C AUTO AMP. INPUT SIGNAL

Component parts

Signal description

Integral switch (heated steering wheel switch)

Transmits the heated steering wheel switch signal to the A/C auto amp. via LIN communication.

Heated steering wheel relay and back-up lamp relay (heated steering wheel relay)

Transmits the heated steering wheel relay and back-up lamp relay (heated steering wheel relay) signal to the A/C auto amp.
