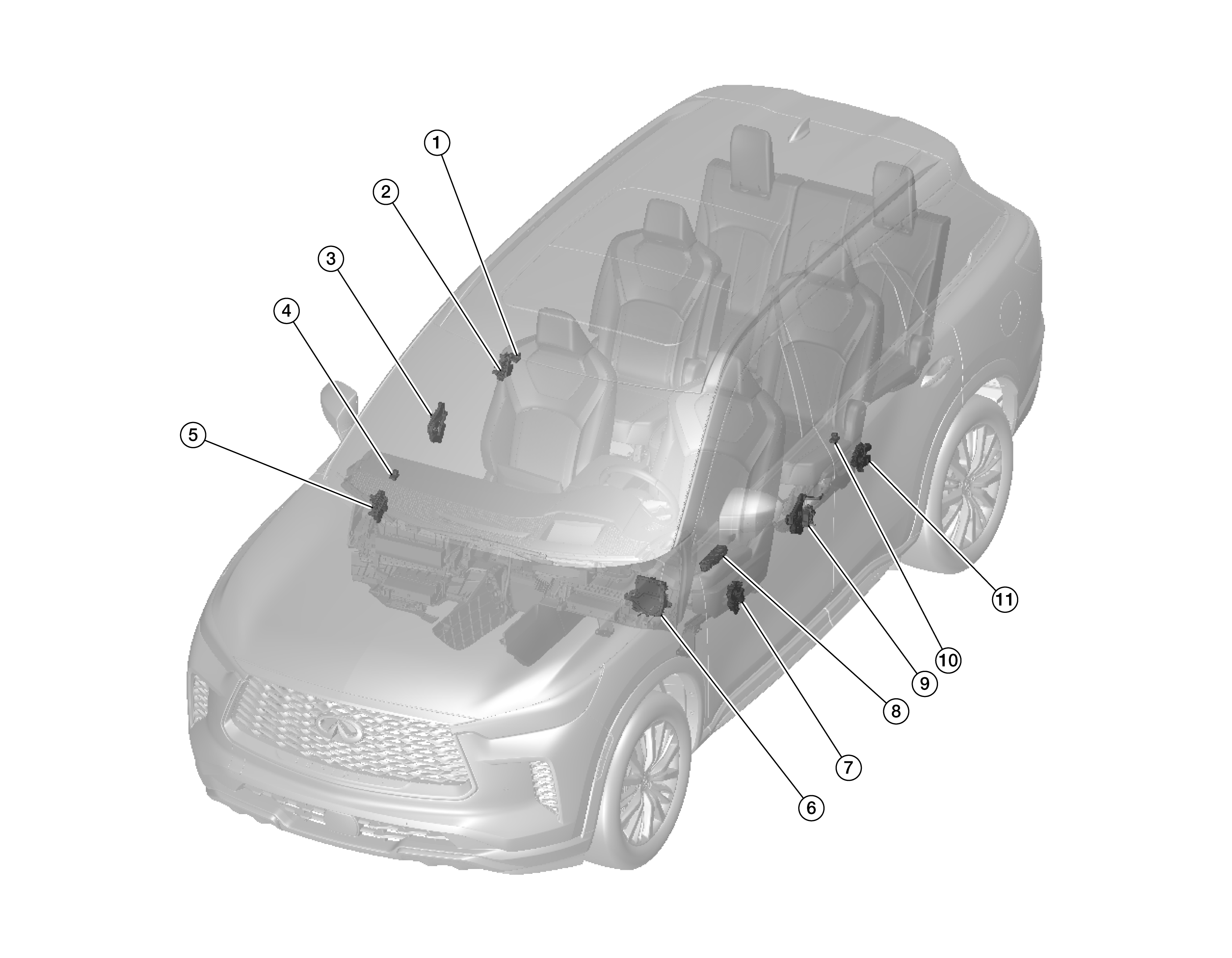

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Rear power window switch RH	Refer to Rear Power Window Switch .
2.	Rear power window motor RH	Refer to Rear Power Window Motor .
3.	Front door lock assembly RH (door switch)	Detects door open/close condition and transmits the signal to the BCM. Refer to Component Location for detailed component location.
4.	Front power window switch RH	Refer to Front Power Window Switch RH .
5.	Front power window motor RH	Refer to Front Power Window Motor RH .
6.	BCM (Body Control Module)	Supplies power supply to the power window switch. Controls retained power. Refer to Component Location for detailed component location.
7.	Front power window motor LH	Refer to Front Power Window Motor LH .
8.	Main power window and door mirror switch	Refer to Main Power Window and Door Mirror Switch .
9.	Front door lock assembly LH (door switch)	Detects door open/close condition and transmits the signal to the BCM. Refer to Component Location for detailed component location.
10.	Rear power window switch LH	Refer to Rear Power Window Switch .
11.	Rear power window motor LH	Refer to Rear Power Window Motor .
