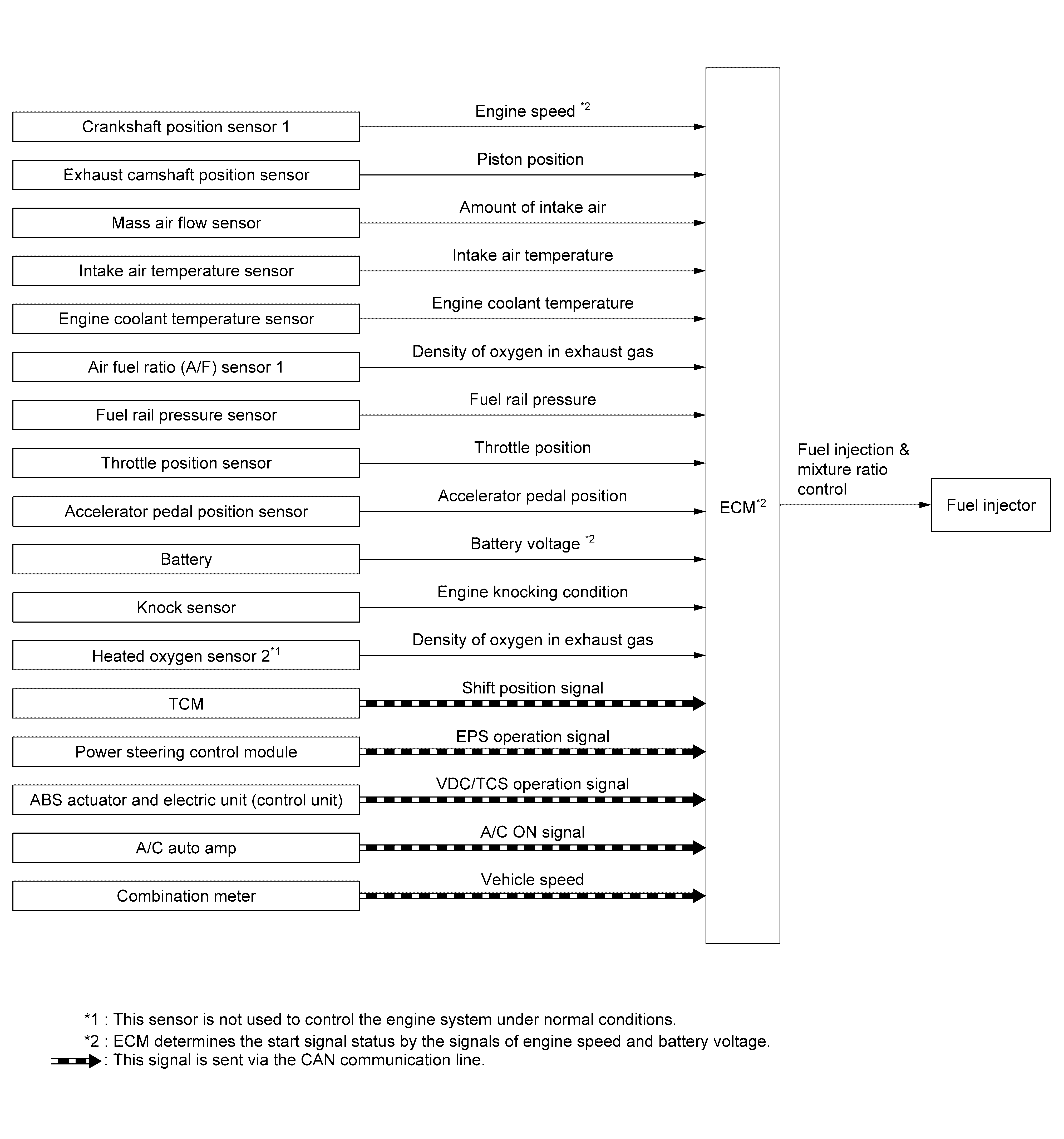

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor 1 |
|
|
Exhaust camshaft position sensor |
|
|
Mass air flow sensor (With intake air temperature sensor) |
|
|
Intake air temperature sensor |
|
|
Engine coolant temperature sensor |
|
|
Air fuel ratio (A/F) sensor 1 |
|
|
Fuel rail pressure sensor |
|
|
Throttle position sensor |
|
|
Accelerator pedal position sensor |
|
|
Battery |
ECM receives the battery voltage signal. |
|
Knock sensor |
|
|
Heated oxygen sensor 2 |
|
|
TCM |
ECM receives the shift position signal via CAN communication. |
|
Power steering control module |
ECM receives the EPS operation signal via CAN communication. |
|
ABS actuator and electric unit (control unit) |
ECM receives the following signals via CAN communication.
|
|
A/C auto amp. |
ECM receives the A/C ON signal via CAN communication. |
|
Combination meter |
ECM receives the vehicle speed signal via CAN communication. |
|
ECM |
|
|
Fuel injector |
