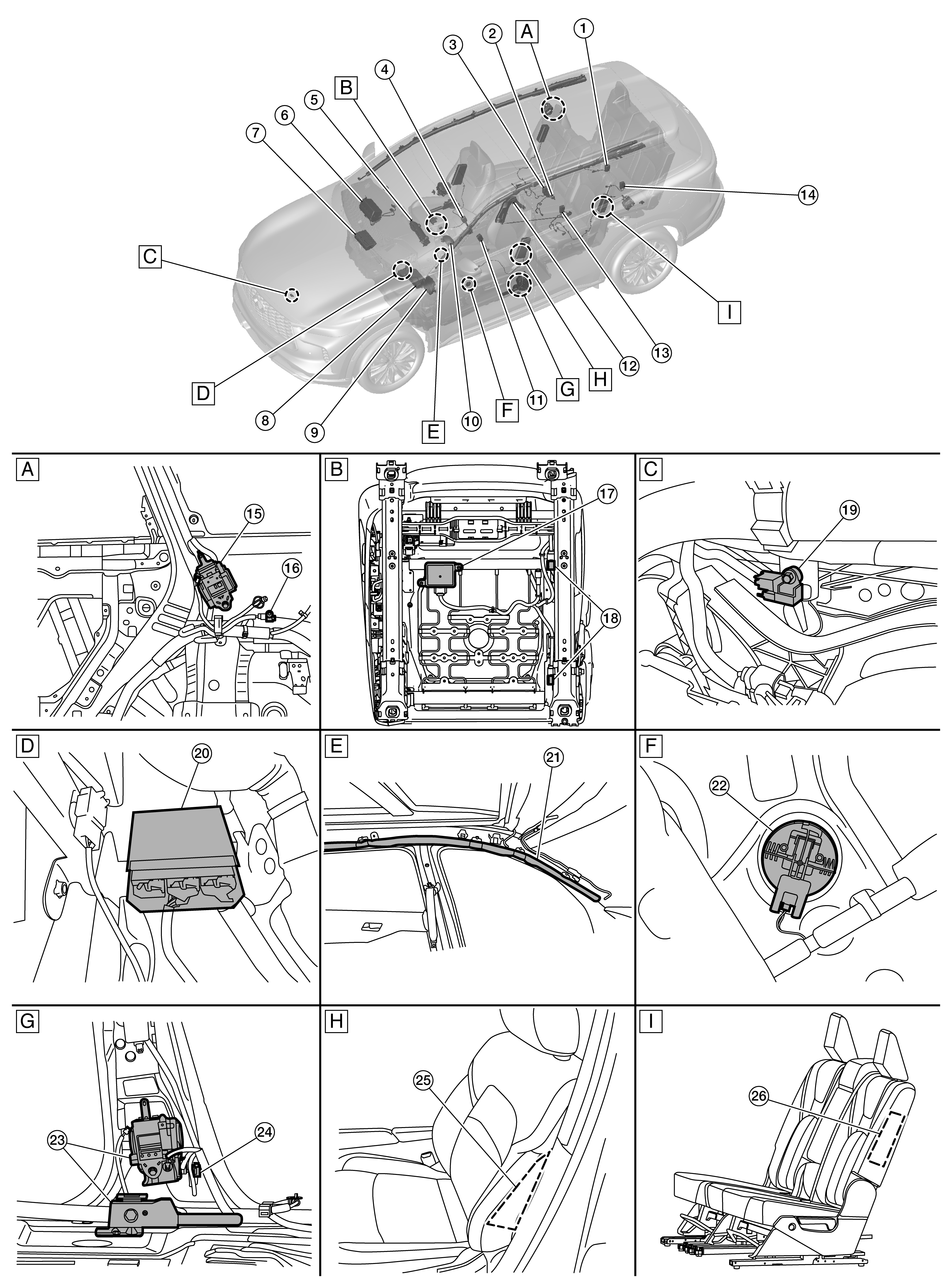

Component Location
|
A. |
Right rear seat area (view with rear side finisher removed) |
B. |
Right front passenger seat (view with seat removed from vehicle) |
C. |
Core support area (view with air intake removed) |
|
D. |
Between driver and passenger seat (view with center console removed) |
E. |
Roof area (view with headliner removed |
F. |
Driver door area (view with driver's door finisher removed) |
|
G. |
Left of driver seat (view with lower B-pillar finisher removed) |
H. |
Driver seat area |
I. |
2nd row seat |
|
No. |
Component |
Function |
|
1. |
3rd row seat belt buckle switch RH |
Transmits the 3rd row seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
|
2. |
2nd row seat belt buckle switch CTR (if equipped) |
Transmits the 2nd row seat belt buckle switch CTR signal to the air bag diagnosis sensor unit. |
|
3. |
2nd row seat belt buckle switch RH |
Transmits the 2nd row seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
|
4. |
Front seat belt buckle switch RH |
Transmits the front seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
|
5. |
Integral switch (front passenger air bag off indicator) |
Refer to Front Passenger Air Bag Off Indicator . |
|
6. |
Front passenger air bag module |
Refer to Front Passenger Air Bag Module . |
|
7. |
Knee air bag module RH (if equipped) |
Refer to Knee Air Bag Module . |
|
8. |
Knee air bag module LH |
|
|
9. |
BCM (Body Control Module) |
Transmits the front seat belt buckle switch LH signal via CAN communication. Refer to Component Location for detailed component location. |
|
10. |
Driver air bag module |
Refer to Driver Air Bag Module . |
|
11. |
Front seat belt buckle switch LH |
Transmits the front seat belt buckle switch LH signal to the BCM. |
|
12. |
Front center air bag module (if equipped) |
Refer to Front Center Air Bag Module . |
|
13. |
2nd row seat belt buckle switch LH |
Transmits the 2nd row seat belt buckle switch LH signal to the air bag diagnosis sensor unit. |
|
14. |
3rd row seat belt buckle switch LH |
Transmits the 3rd row seat belt buckle switch LH signal to the air bag diagnosis sensor unit. |
|
15. |
Rear RH seat belt pre-tensioner (if equipped) (LH similar) |
Refer to Rear Seat Belt Pre-tensioner . |
|
16. |
Rear side air bag satellite sensor RH (LH similar) |
Refer to Rear Side Air Bag Satellite Sensor . |
|
17. |
Occupant classification system control unit |
Refer to System Description . |
|
18. |
Occupant classification system sensors |
|
|
19. |
Crash zone sensor |
Refer to Crash Zone Sensor . |
|
20. |
Air bag diagnosis sensor unit |
Refer to Air Bag Diagnosis Sensor Unit . |
|
21. |
Side curtain air bag module LH (RH similar) |
Refer to Side Curtain Air Bag Module . |
|
22. |
Front door satellite sensor LH (RH similar) |
Refer to Front Door Satellite Sensor . |
|
23. |
Front LH seat belt pre-tensioner (RH similar) |
Refer to Front Seat Belt Pre-tensioner . |
|
24. |
Front side air bag satellite sensor LH (RH similar) |
Refer to Front Side Air Bag Satellite Sensor . |
|
25. |
Front side air bag module LH (RH similar) |
Refer to Front Side Air Bag Module . |
|
26. |
Rear side air bag module LH (if equipped) (RH similar) |
Refer to Rear Side Air Bag Module . |
