Disassembly and Assembly: Disassembly

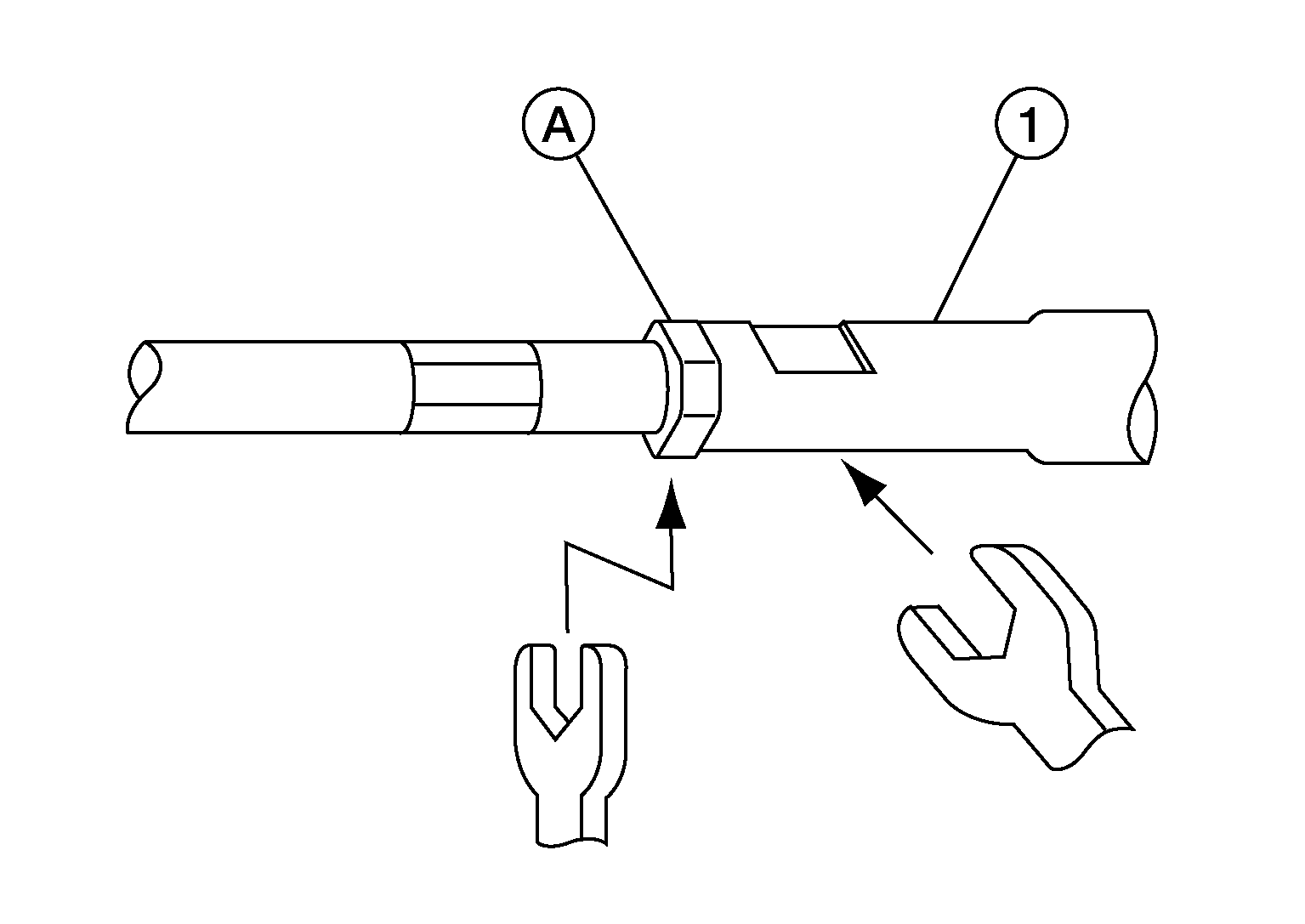

  1. Remove inner socket lock nut (A) and outer socket (1).
    GNSDB17413Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To prevent damage, hold outer socket (1) across flats using suitable tool while loosening inner socket lock nut (A).
  2. Remove boot clamps and boot.
    CAUTION: Do not reuse large boot clamp.

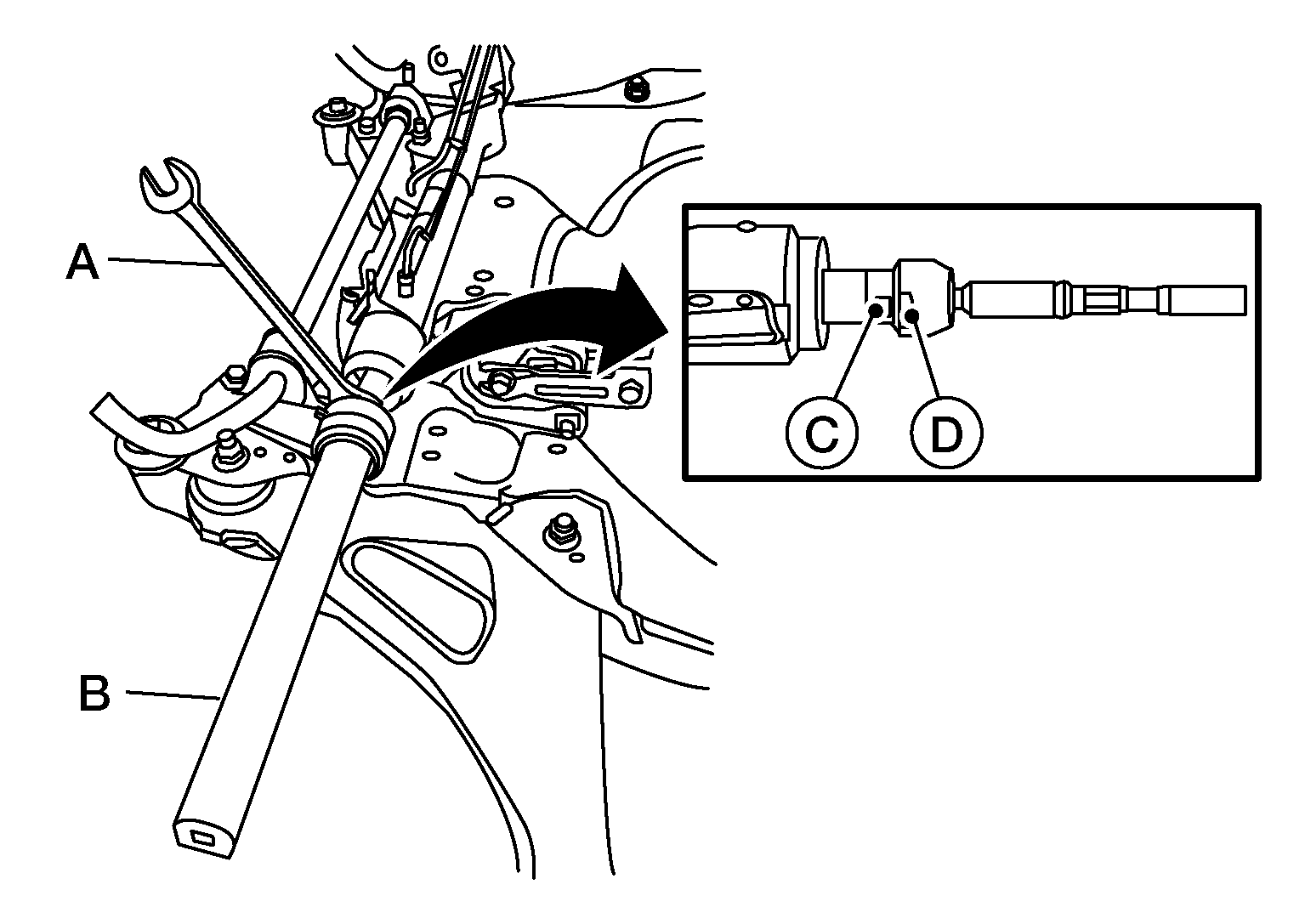

  3. Remove inner socket.
    GNSDB14969Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To prevent damage to the rack bar when removing the inner socket, hold suitable tool (A) across rack bar flats (C) while turning suitable tool (B) across inner socket flats (D).
  4. Remove bracket bolt and bracket.
  5. Remove heat shield bolts and heat shield.
