Removal and Installation: Removal

  1. Remove shift selector finisher. Refer to Exploded View .

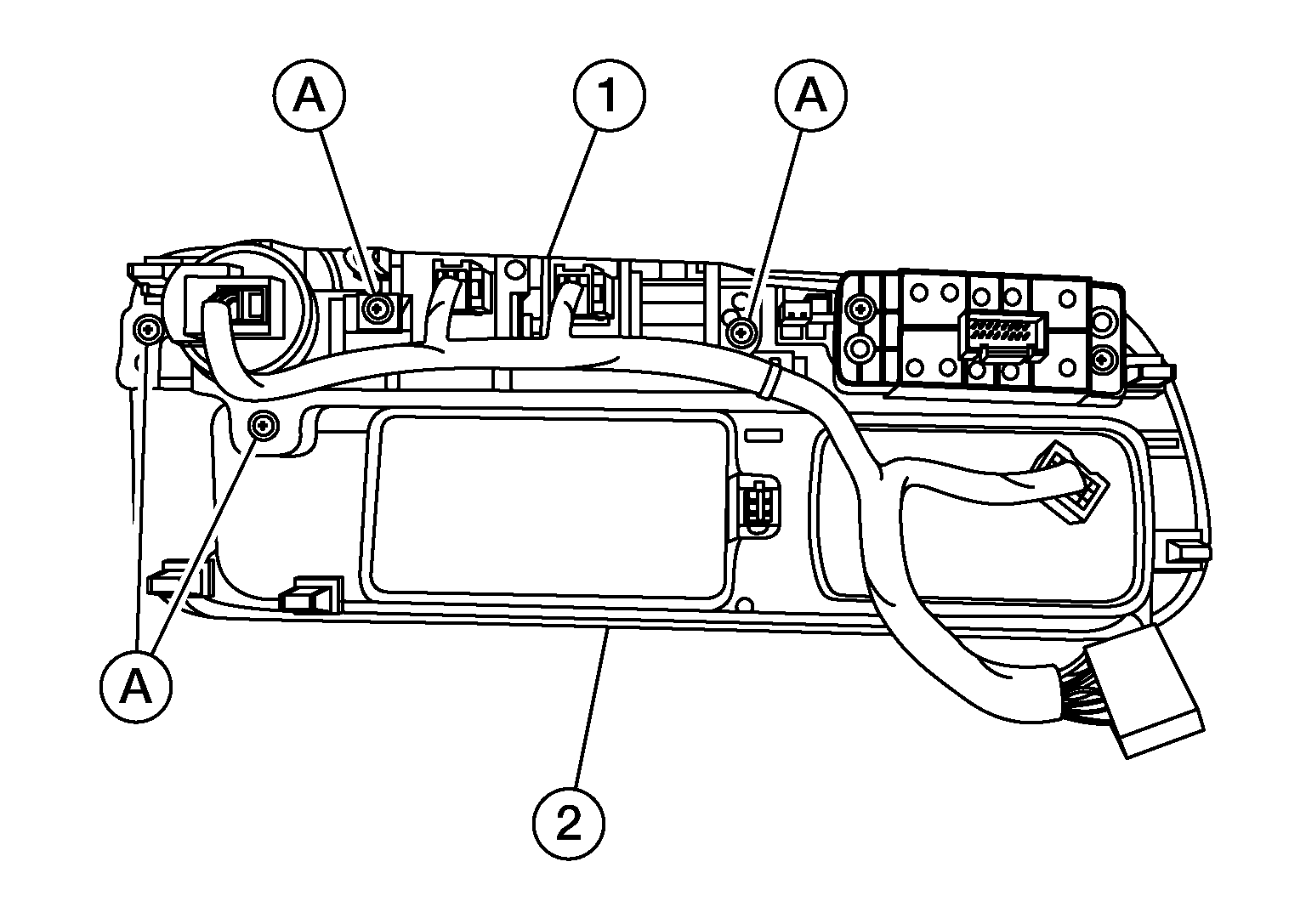

  2. Remove screws (A) and switch carrier (1) from shift selector finisher (2).
    GNSDB18568Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connector from drive mode switch.

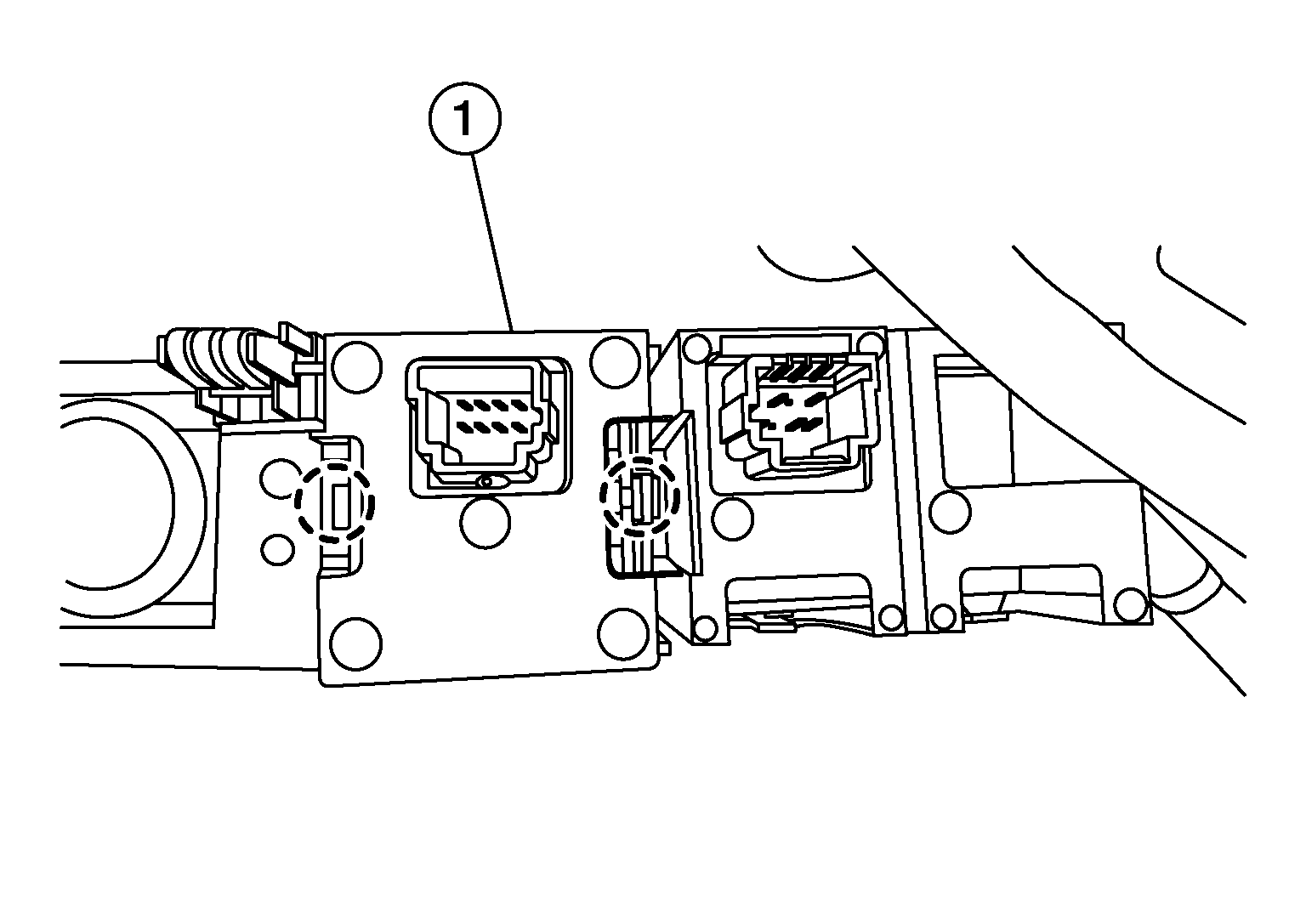

  4. Using a suitable tool, release pawls and remove drive mode switch (1).
    GNSDB19097Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
