Component Location

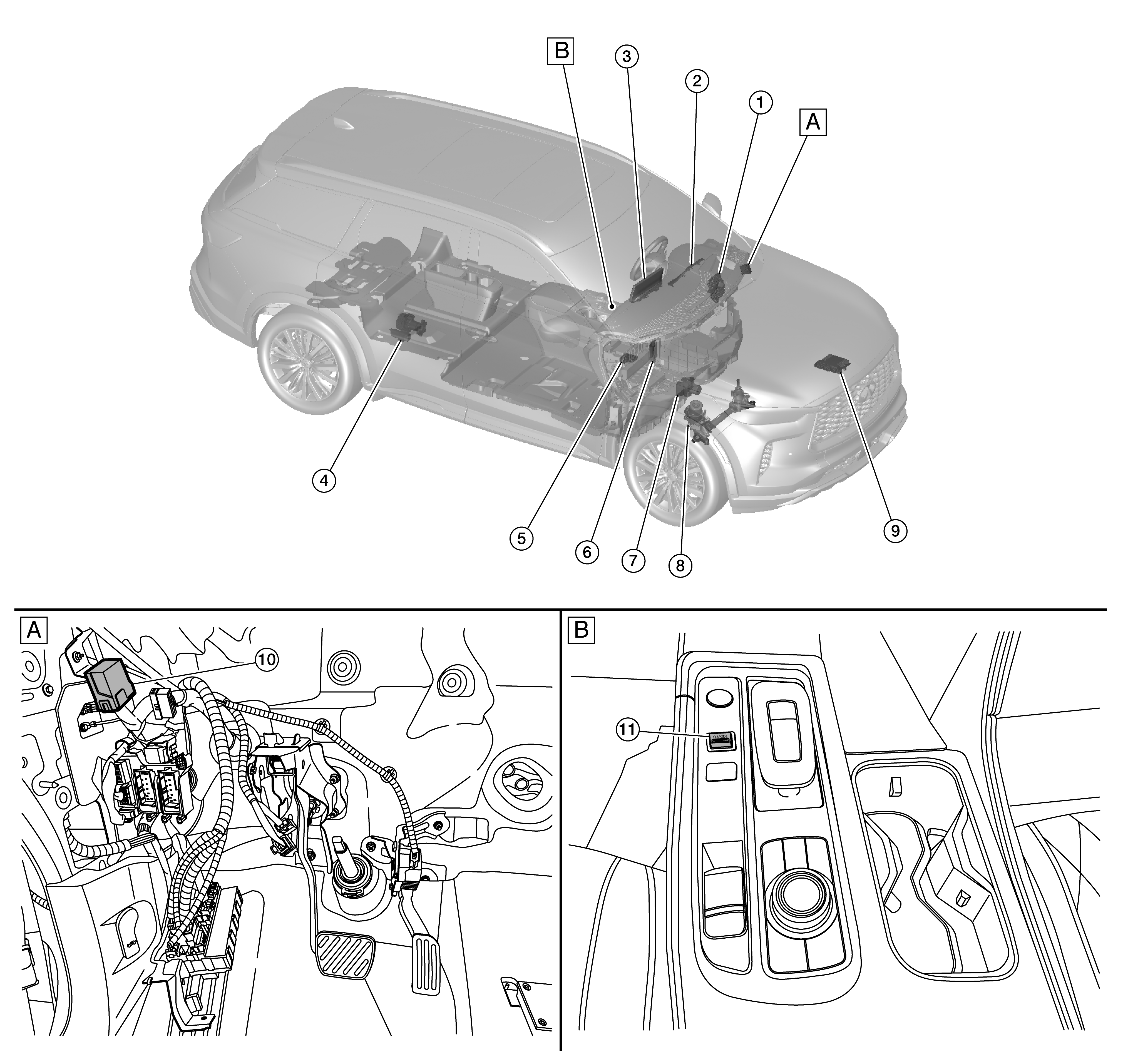

GNSDB19535Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Upside of instrument lower panel LH

SYMBOL

Center console finisher

SYMBOL

BCM

Refer to Component Location for detailed installation location.

SYMBOL

Combination meter

Refer to Component Location (full TFT meter), Component Location (7 inch information display) for detailed installation location.

SYMBOL

AV control unit

Refer to Component Location for detailed installation location.

SYMBOL

AWD control unit

Refer to Component Location for detailed installation location.

SYMBOL

Intelligent Key unit

Refer to Component Location for detailed installation location.

SYMBOL

ADAS control unit 2

Refer to Component Location for detailed installation location.

SYMBOL

ABS actuator and electric unit (control unit)

Refer to Component Location for detailed installation location.

SYMBOL

Power steering control module

SYMBOL

ECM

Refer to Component Location for detailed installation location.

SYMBOL

Chassis control module

SYMBOL

Drive mode select switch
