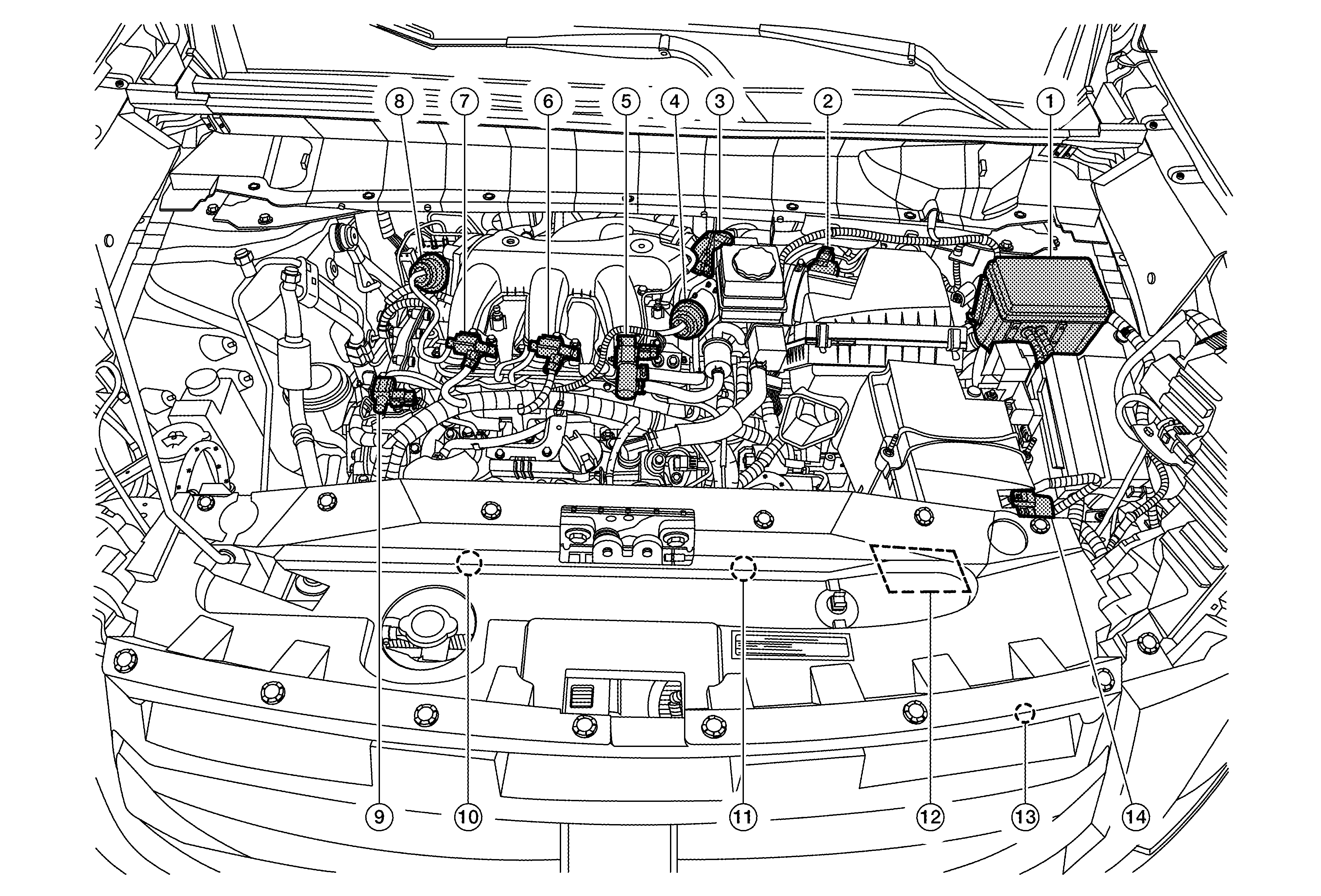

Engine Room Component

GNSDB18666Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

IPDM E/R

SYMBOL

Mass air flow sensor (with intake air temperature sensor)

SYMBOL

Electric throttle control actuator

SYMBOL

Power valve actuator 2

SYMBOL

EVAP canister purge volume control solenoid valve

SYMBOL

VIAS control solenoid valve 2

SYMBOL

VIAS control solenoid valve 1

SYMBOL

Power valve actuator 1

SYMBOL

Electronic controlled engine mount control solenoid valve

SYMBOL

Cooling fan motor-2

SYMBOL

Cooling fan motor-1

SYMBOL

ECM (with barometric pressure sensor)

SYMBOL

Refrigerant pressure sensor

SYMBOL

Battery current sensor
